Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Check power window master switch using hand-held tester.
PREPARATION:

Connect the hand-held tester to the DLC3.

CHECK:

Check the power window master switch using the DATA LIST

OK:

Driver side:

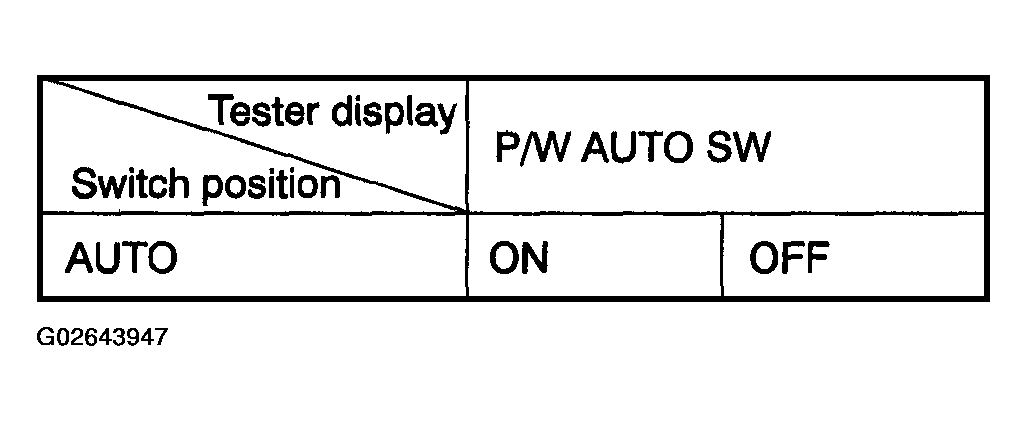

Fig 1: Power Window Master Switch Position - Driver Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Passenger side:

Fig 2: Power Window Master Switch Position - Passenger Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Proceed to next circuit inspection shown on problem symptoms table (see PROBLEM SYMPTOMS TABLE ).
2. NG: Replace driver door ECU.
