Key Unlock Warning Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

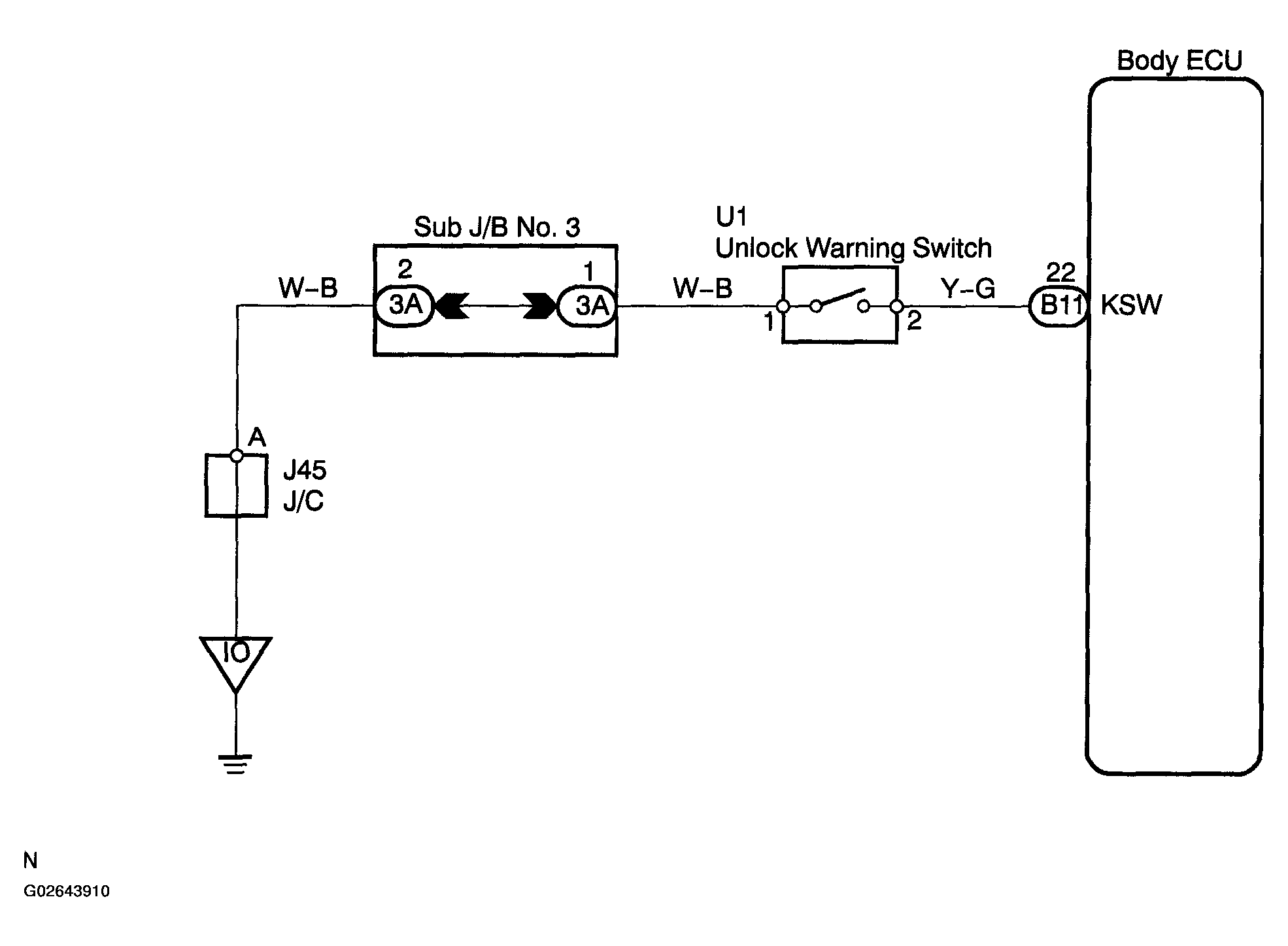

Fig 1: Key Unlock Warning Switch Wiring Diagram
G02643910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
