Control Switch Circuit (Cruise Control Switch): Wiring Diagram
WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

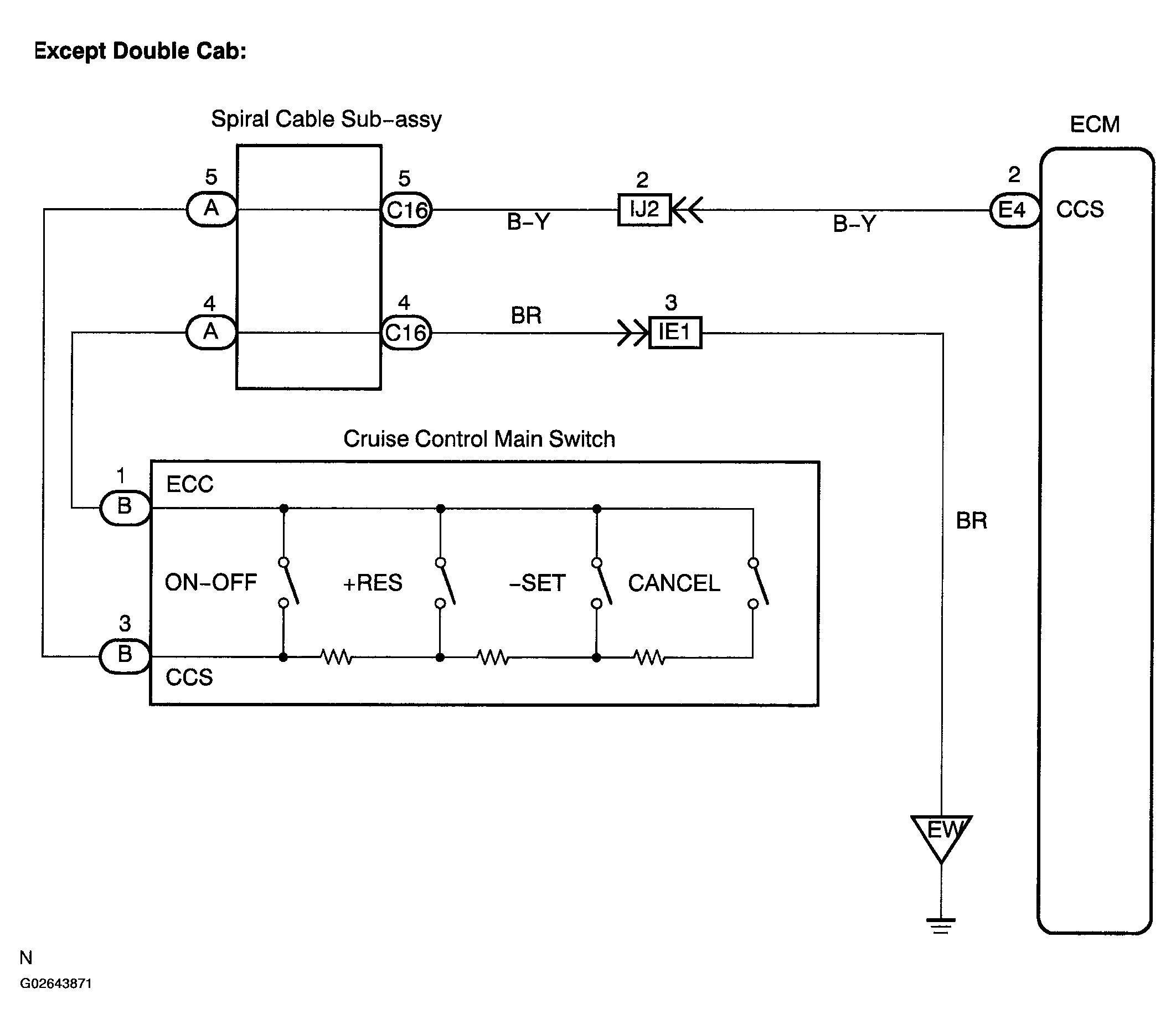

Fig 1: Control Switch Circuit Wiring Diagram (Except Double Cab)
