Inspection Procedure

HINT:

In case of using the hand-held tester, start the inspection from 1 and in case of not using the hand-held tester, start from step  2.

1. Read value on hand-held tester.

   PREPARATION:

   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch to the ON position and turn the hand-held tester main switch on.
   3. Select the item below in the "DATA LIST", and read the display on the hand-held tester.

   CHECK:

   Check that the CRUISE main indicator light comes on when the cruise main switch is ON, and go off when the cruise main switch is OFF.

   CCS (ECM):

   CCS (ECM) INDICATOR



   Item	Measurement Item/Display (Range)	Normal Condition	Diagnostic Note
   CCS INDICATOR	Cruise indicator signal (Main CPU)/ON or OFF	ON: "CRUISE main indicator" ON OFF: "CRUISE main indicator" OFF	-
   CCS INDICATOR S	Cruise indicator signal (Sub CPU)/ON or OFF	ON: "CRUISE main indicator" ON OFF: "CRUISE main indicator" OFF	-

   OK:

   When the cruise control main switch is operated, the normal conditions listed above are shown on the display.

   1. NG : Go to step 2.
   2. OK : Proceed to next circuit inspection shown in  PROBLEM SYMPTOMS TABLE   .
2. Check combination meter assy.

   CHECK:

   1. Check if other functions in the combination meter (speedometer, indicator, etc.) operate normally.

   OK:

   Functions operate normally.

   1. NG : Go to combination meter system (See  CIRCUIT  ).
   2. OK : Go to next step.
3. Check harness and connector (Combination meter assy - ECM)

   PREPARATION:

   Disconnect the combination meter and ECM connectors.

   CHECK:

   Measure the resistance according to the value(s) in COMBINATION METER ASSY - ECM  .

   OK:

   COMBINATION METER ASSY - ECM



   Tester Connection (Symbol)	Condition	Specified condition
   C11-3 - E4-18 (PI)	Always	Below 1 Ω
   C11-3 - Body ground	Always	10 kBelow 1 Ω or higher

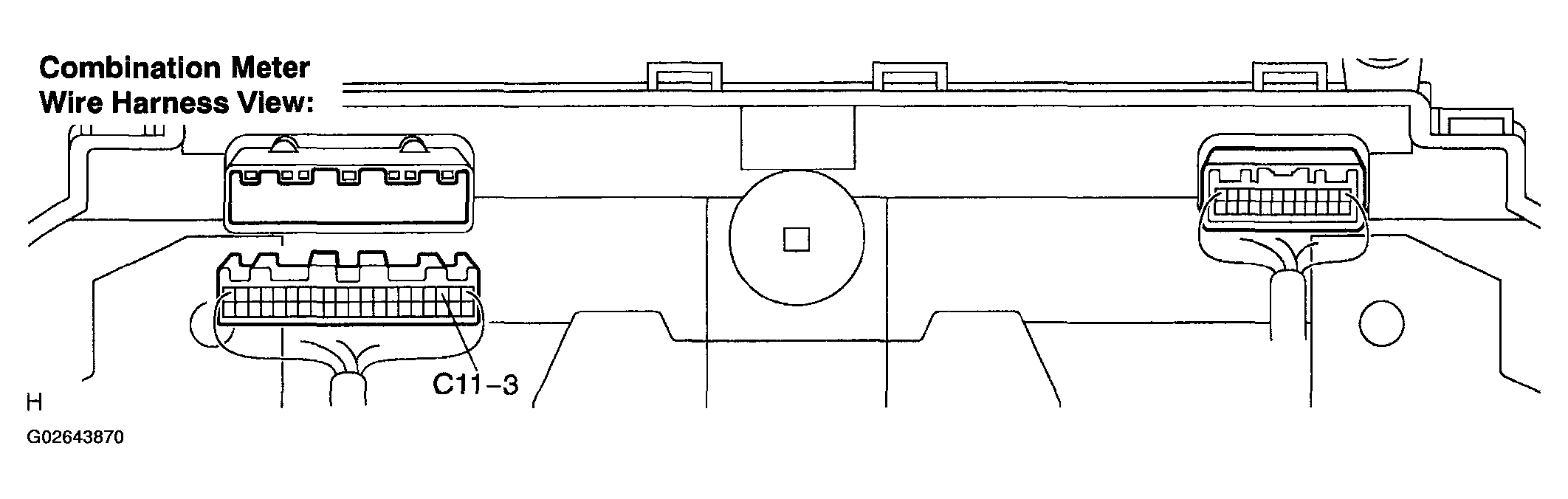

   Fig 1: Checking Harness And Connector (Combination Meter Assy - ECM) (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

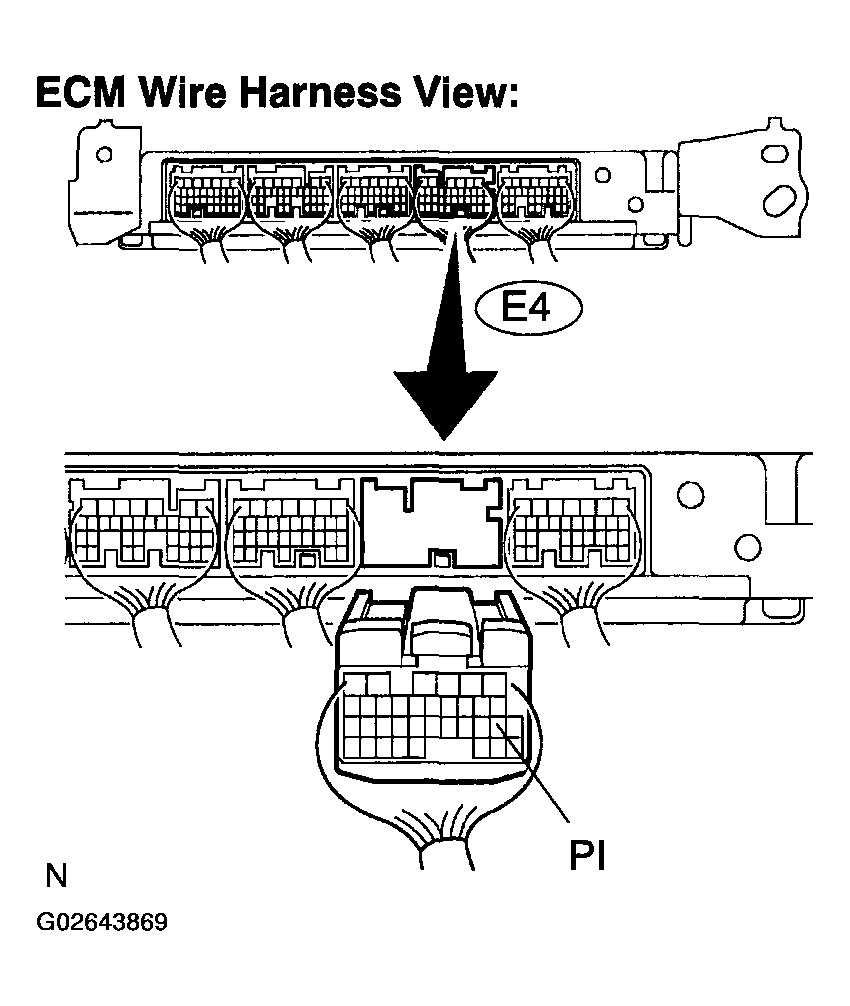

   Fig 2: Checking Harness And Connector (Combination Meter Assy - ECM) (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG : Repair or replace harness or connector.
   2. OK : Proceed to next circuit inspection shown in  PROBLEM SYMPTOMS TABLE   .
