Monitor Strategy

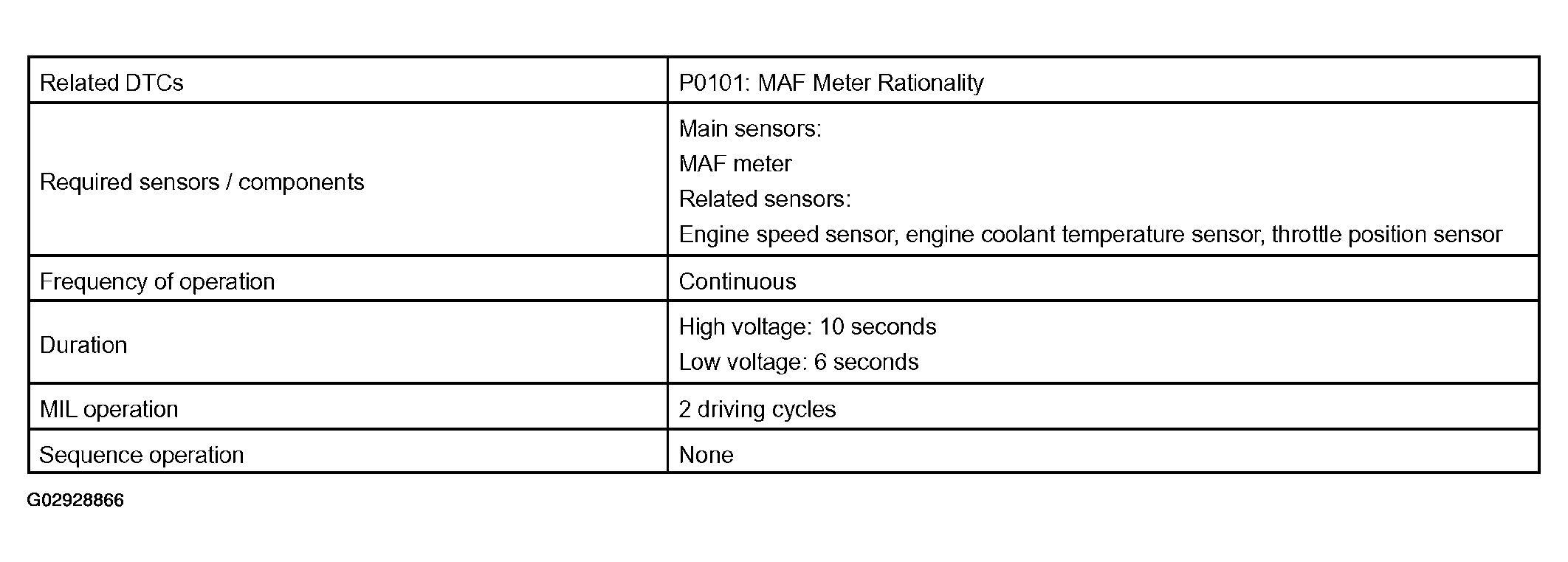

Fig 1: Monitor Strategy Table
G02928866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
