Home >> Toyota >> 2004 >> Tundra Base, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System (Except Double Cab) >> Location

Power Window Control System (Except Double Cab): Location

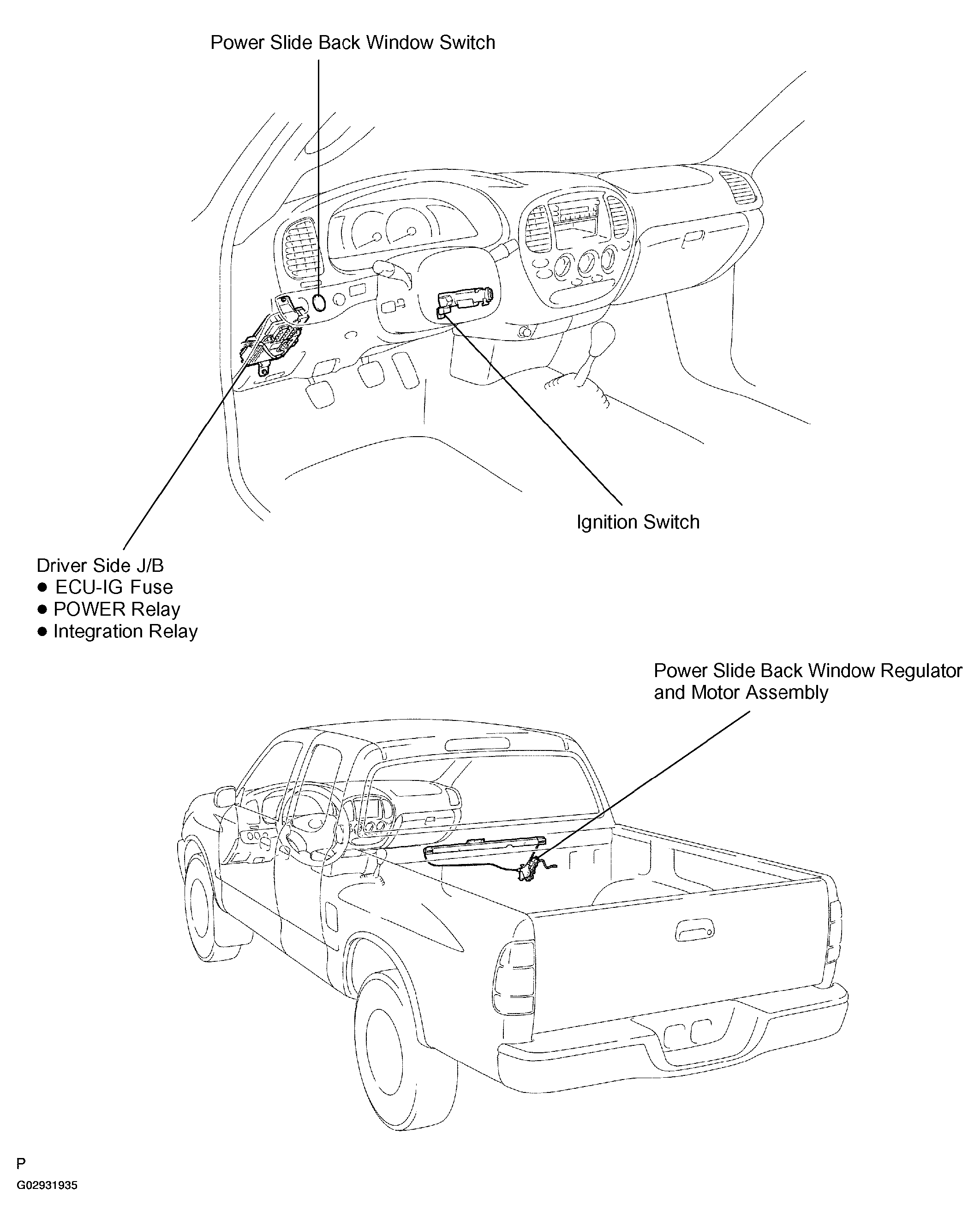

Fig 1: Locating Power Slide Window System Components

G02931935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
