Inspection Procedure

Check power door lock control system operation.
CHECK:

Check that the power door lock control system is operating normally.
1. NG: Check power door lock control system (see LOCATION ).
2. OK: Go to Next Step.
Check harness and connector between TVIP ECU and unlock detection switch.
PREPARATION:
1. Disconnect the T12 TVIP ECU connector.
2. Disconnect the D25 or D26 door unlock detection switch connector.

  Fig 1: Terminals Continuity Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK:

Check the continuity between the wire harness side connectors.

OK:

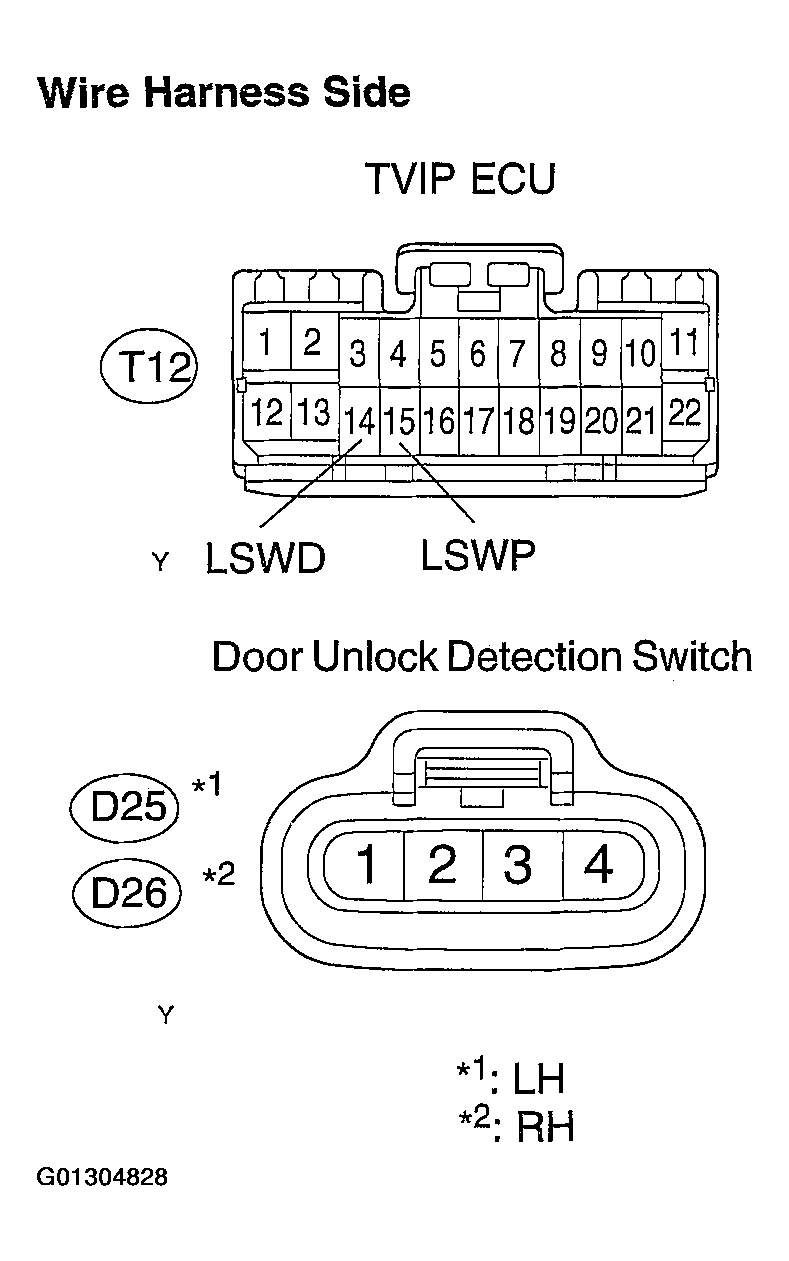

Fig 2: View Of T12 TVIP ECU Connector, D25 & D26 Door Unlock Detection Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: Repair or replace harness and connector.
2. OK: Go to Next Step.
Repair TVIP ECU.
