Inspection Procedure

Check power door lock control system operation.
CHECK:

Check that the power door lock control system is operating normally.
1. NG: Check power door lock control system (see LOCATION ).
2. OK: Go to Next Step.
Check harness and connector between TVIP ECU and door key lock and unlock switch.
PREPARATION:
1. Disconnect the T11 and T12 TVIP ECU connectors.
2. Disconnect the D22 or D23 door key lock and unlock switch connector.

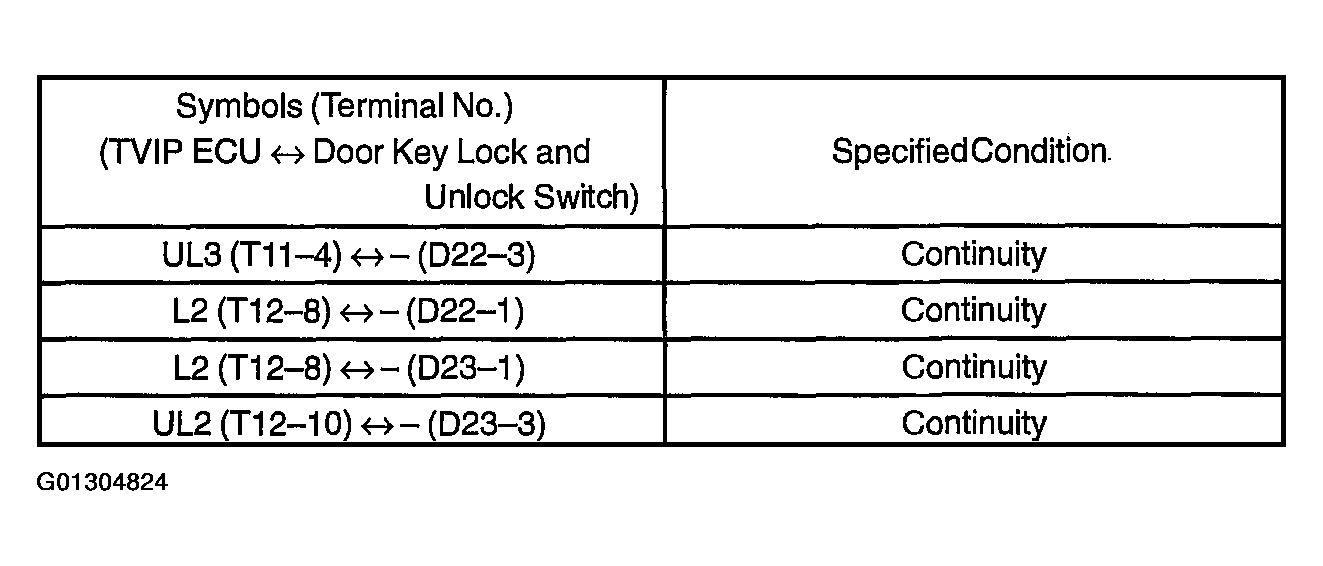

  Fig 1: Terminals Continuity Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK:

Check the continuity between the wire harness side connectors.

OK:

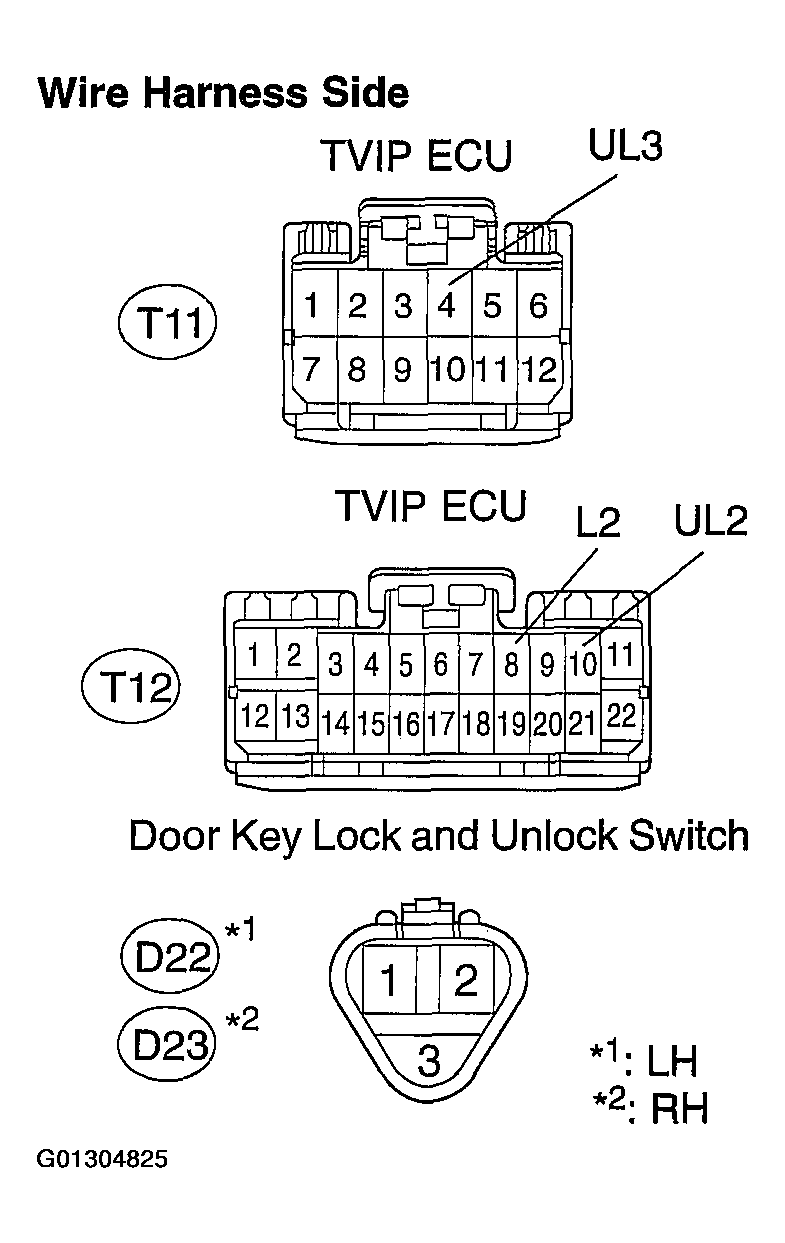

Fig 2: View Of T11 & T12 TVIP ECU Connectors, D22 & D23 Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: Repair or replace harness and connector.
2. OK: Go to Next Step.
Replace TVIP ECU.
