O/D Off Indicator Light Does Not Light Up: Wiring Diagram

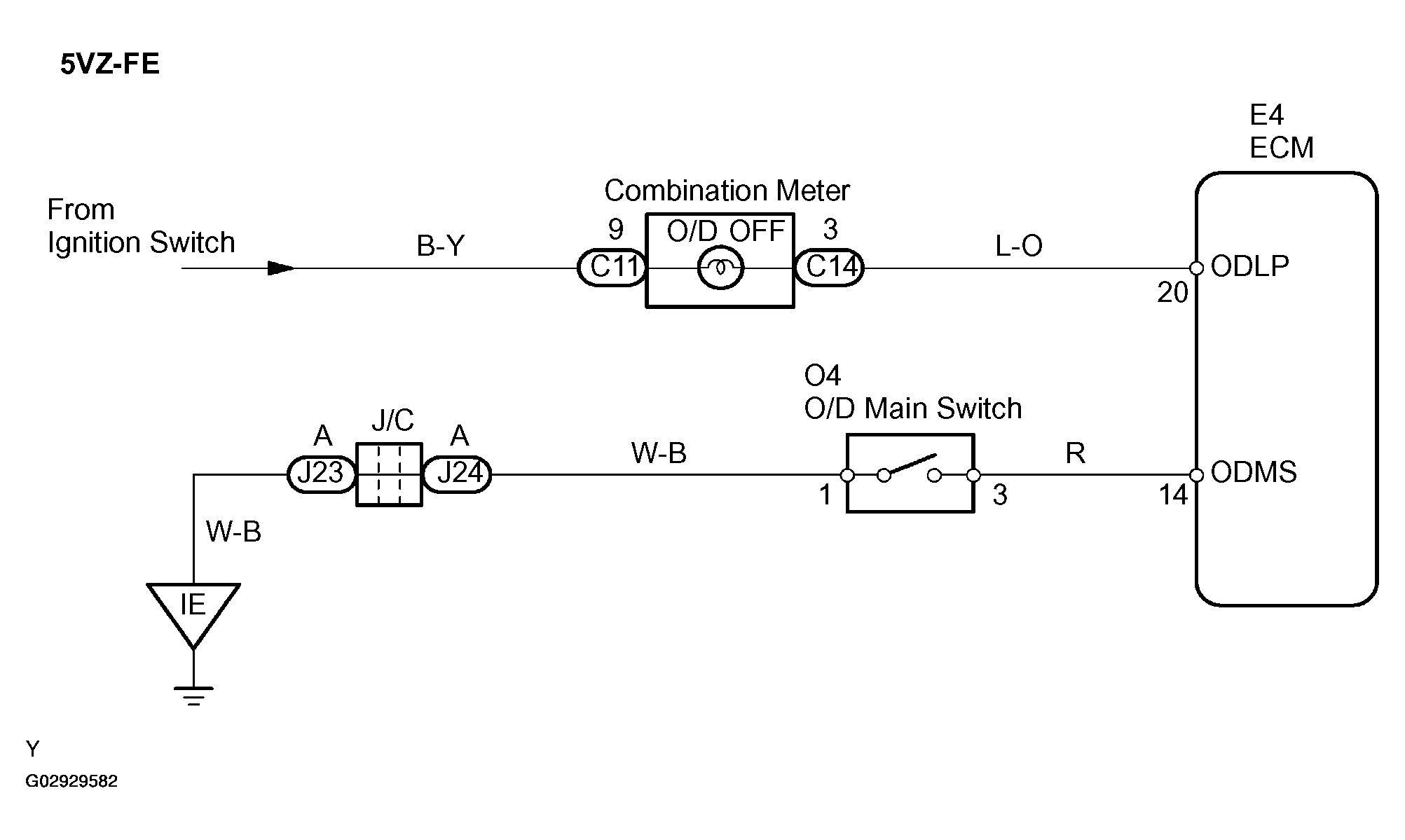

Fig 1: Identifying O/D Off Indicator Light Wiring Diagram Of 5VZ-FE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

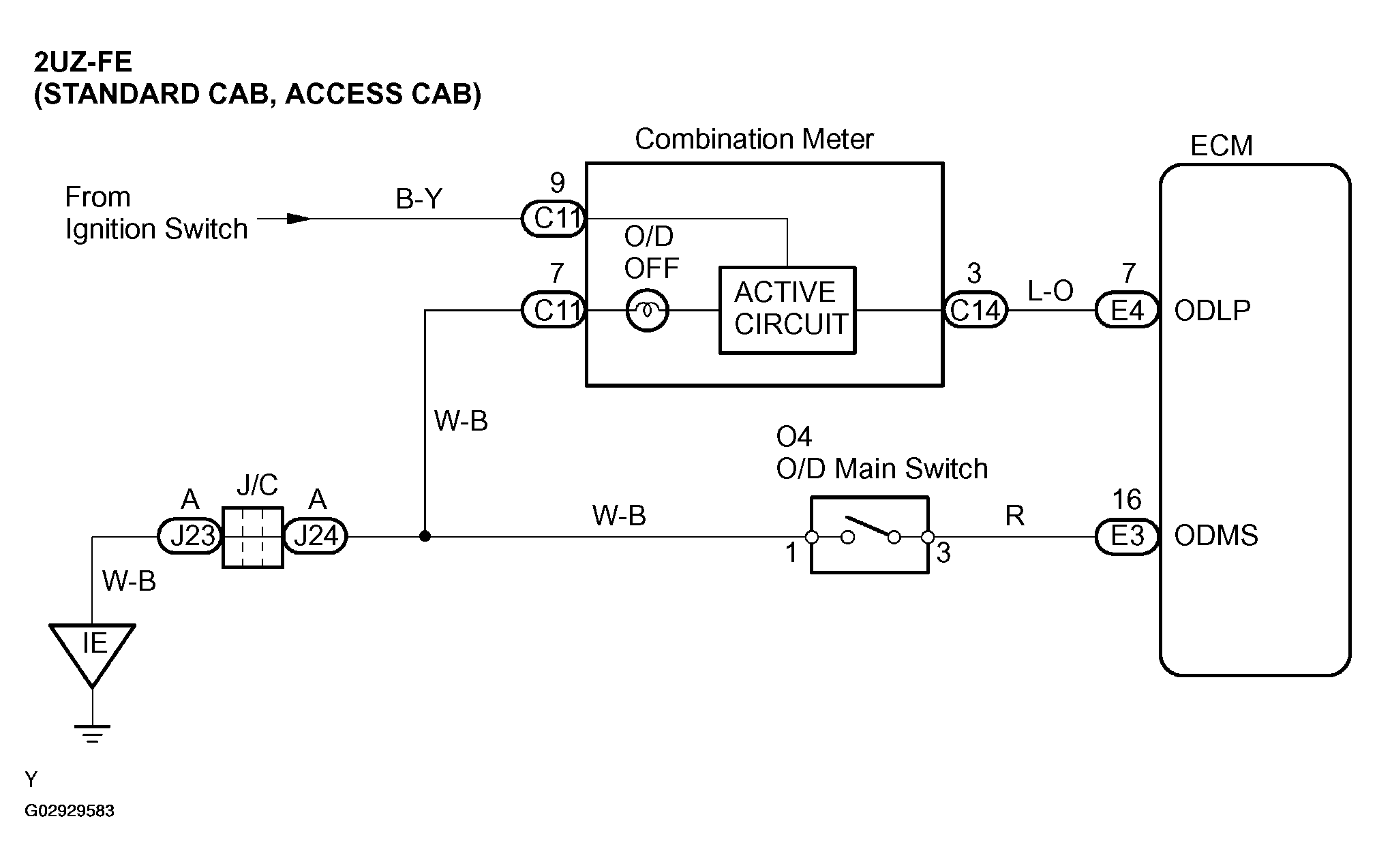

Fig 2: Wiring Diagram (Standard Cab & Access Cab (2VZ-FE))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

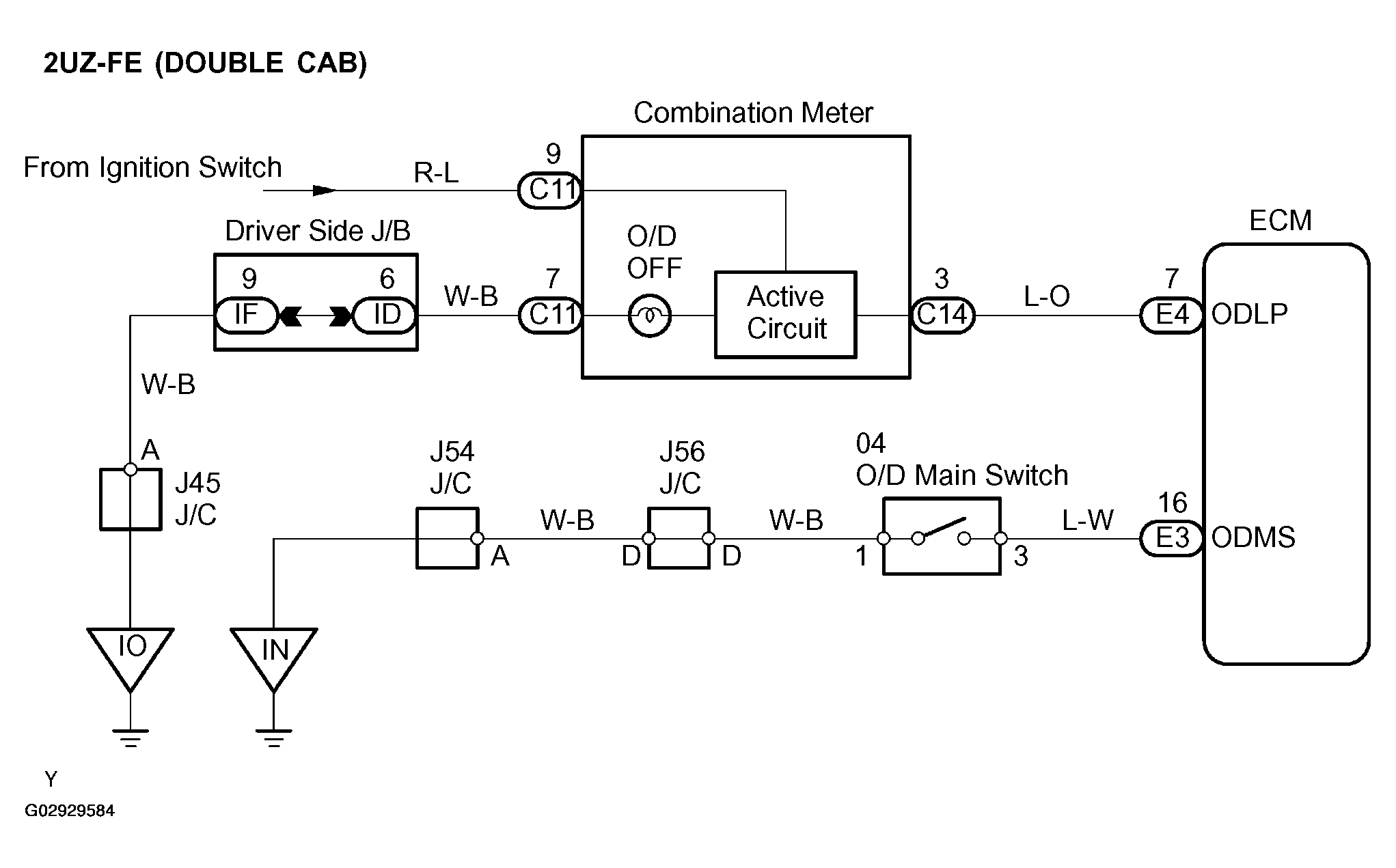

Fig 3: Wiring Diagram (Double Cab (2VZ-FE))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
