DTC P0722: Output Speed Sensor: Wiring Diagram

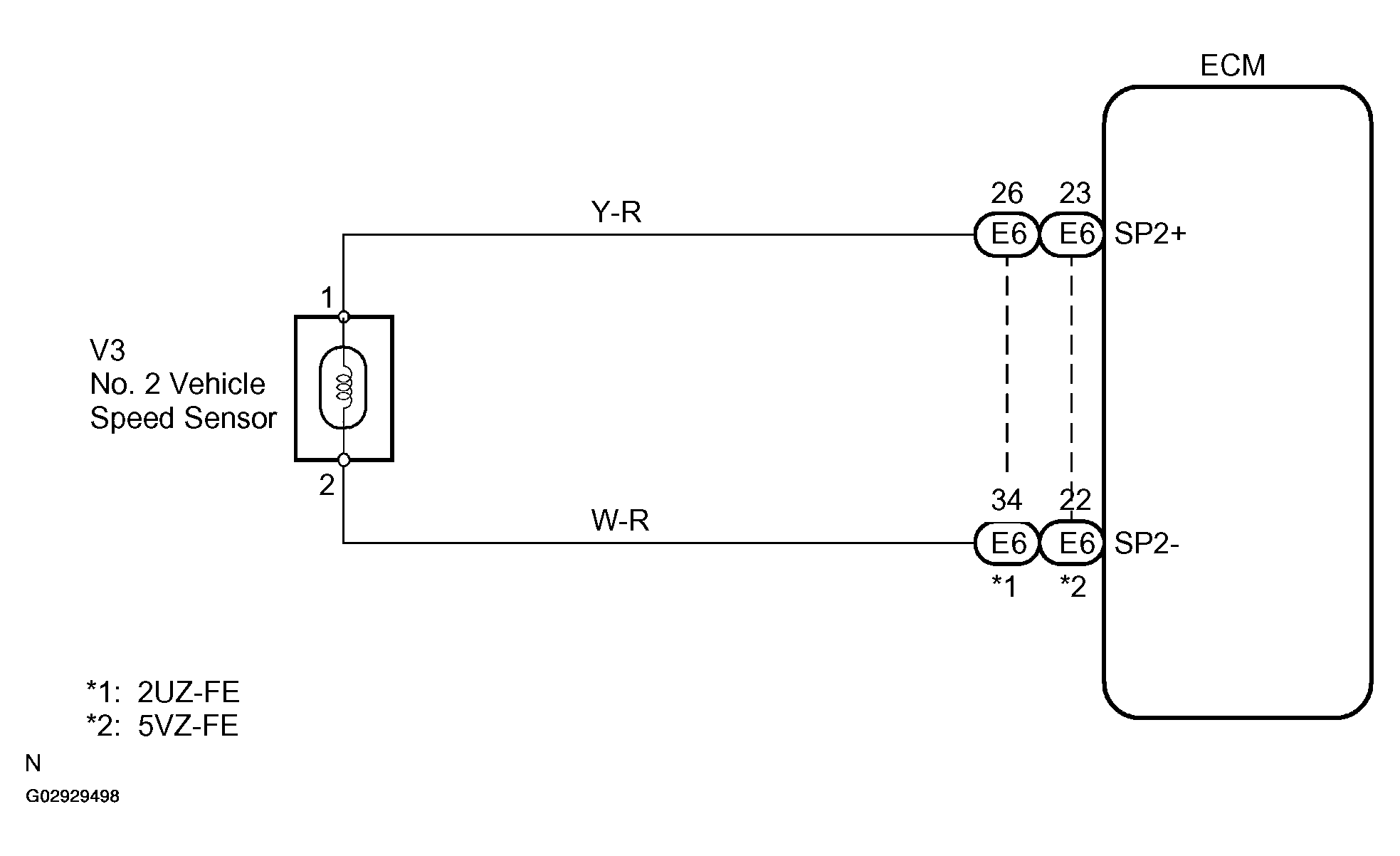

Fig 1: Identifying Vehicle Speed Sensor Wiring Diagram

G02929498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
