Door Lock Control Switch Circuit: Wiring Diagram

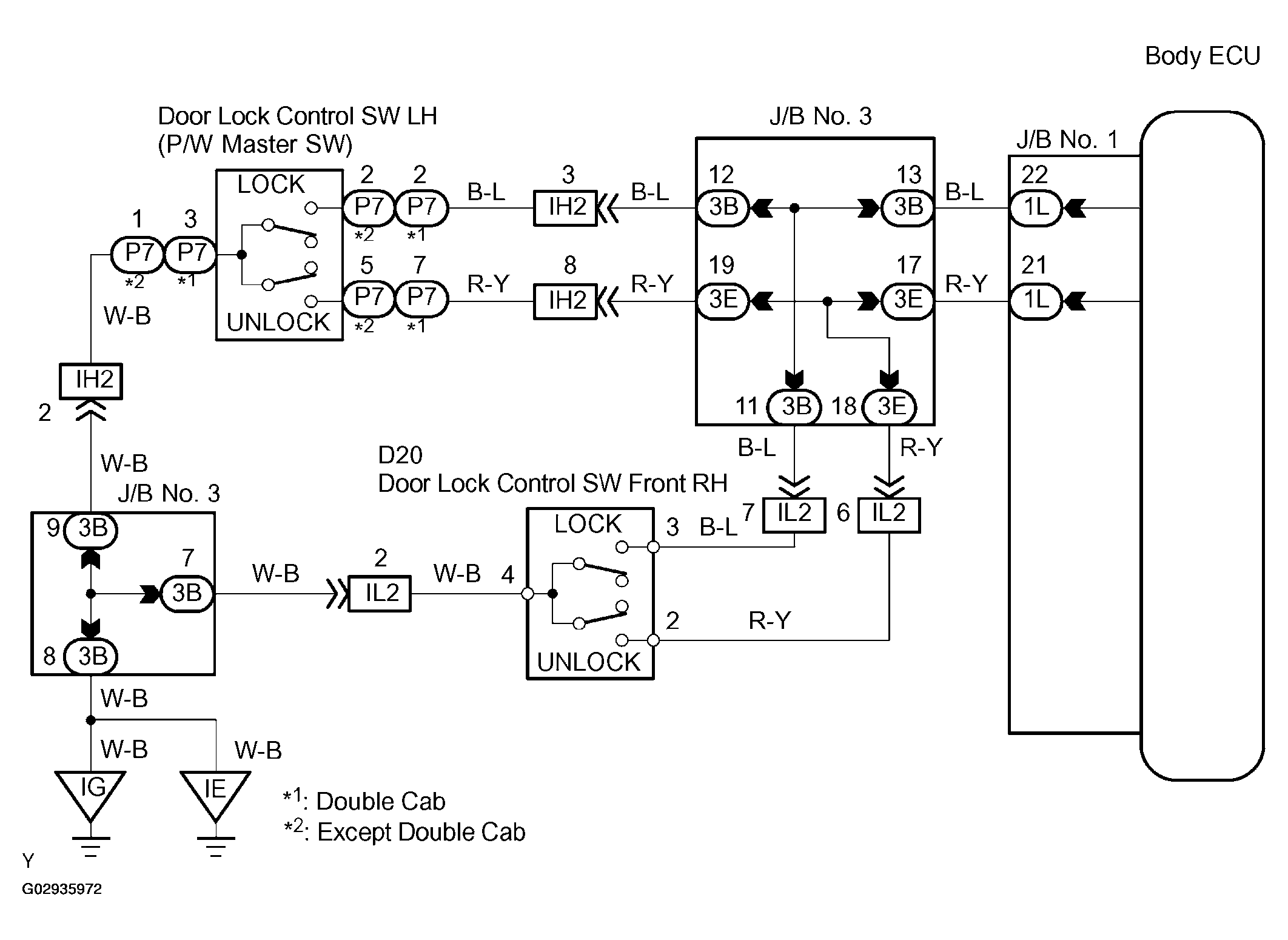

Fig 1: Identifying Door Lock Control Switch Circuit

G02935972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
