Distance Control ECU Connector End View (D2)

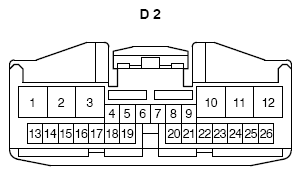

Fig 1: Distance Control ECU Connector End View (D2)

G10333982

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
