ACIS Control Circuit: Wiring Diagram

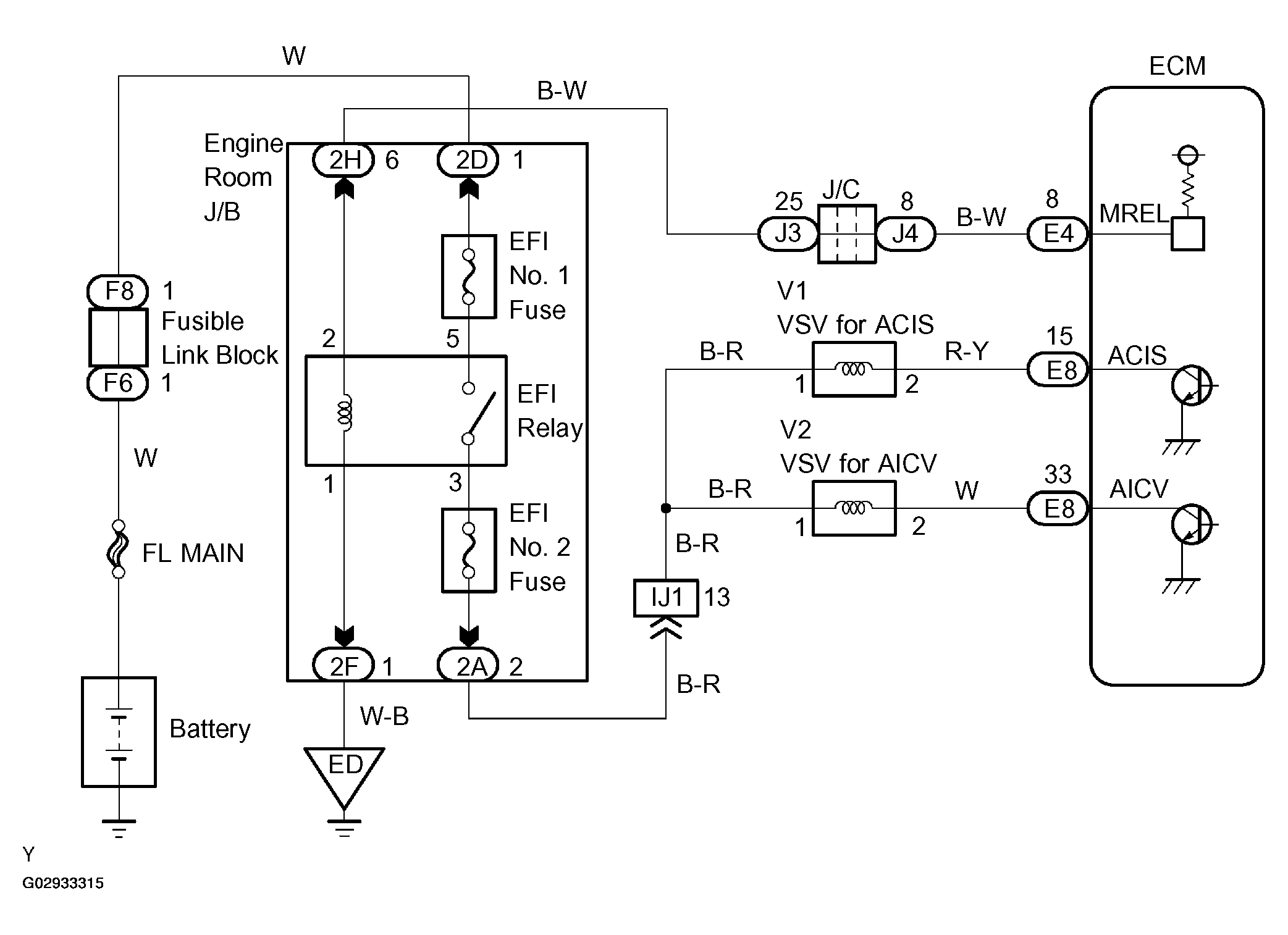

Fig 1: Wiring Diagram ACIS Control

G02933315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
