Power Windows Do Not Operate At All: Wiring Diagram

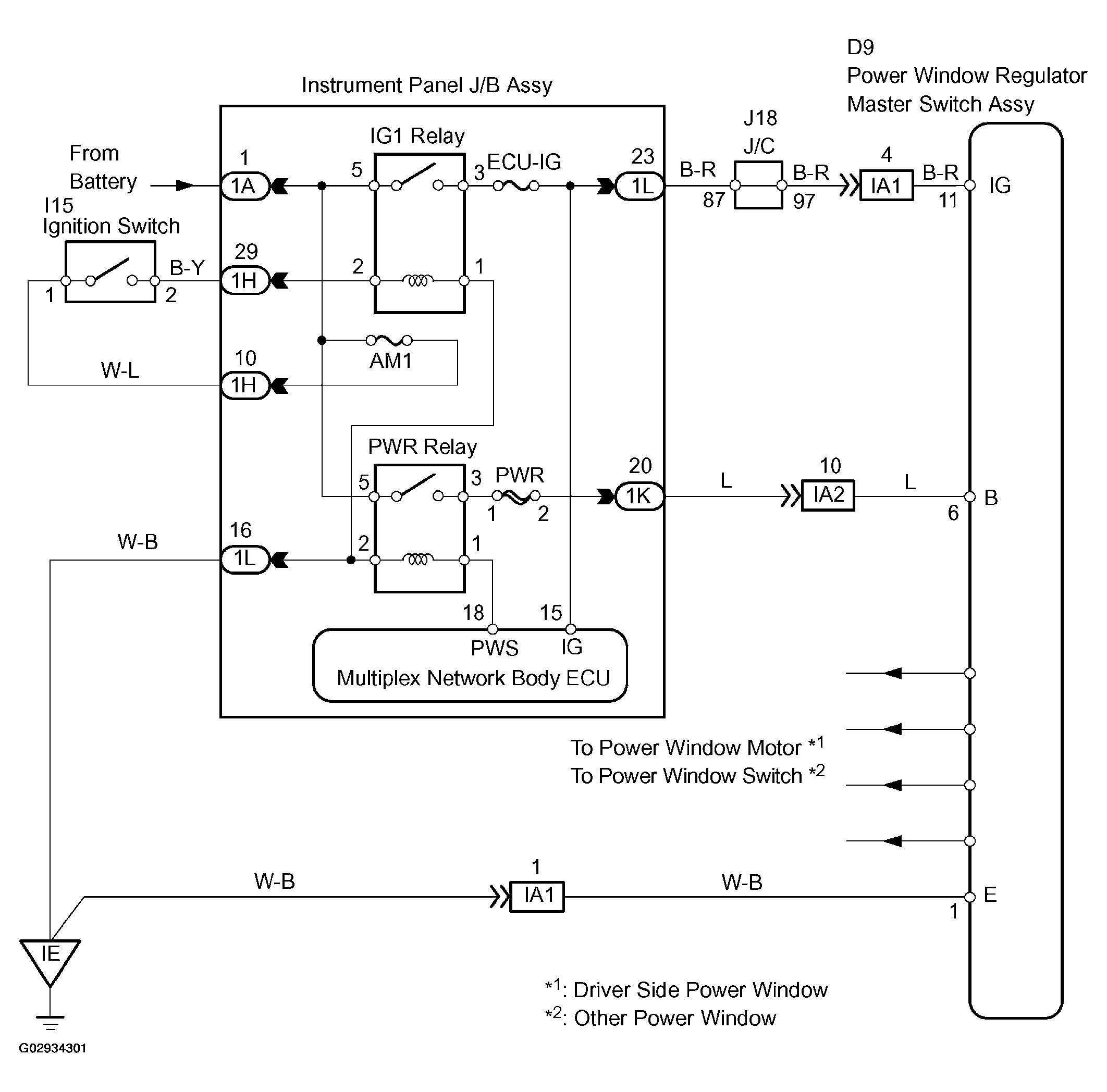

Fig 1: Power Window Wiring Diagram

G02934301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
