Terminals Of Ecu

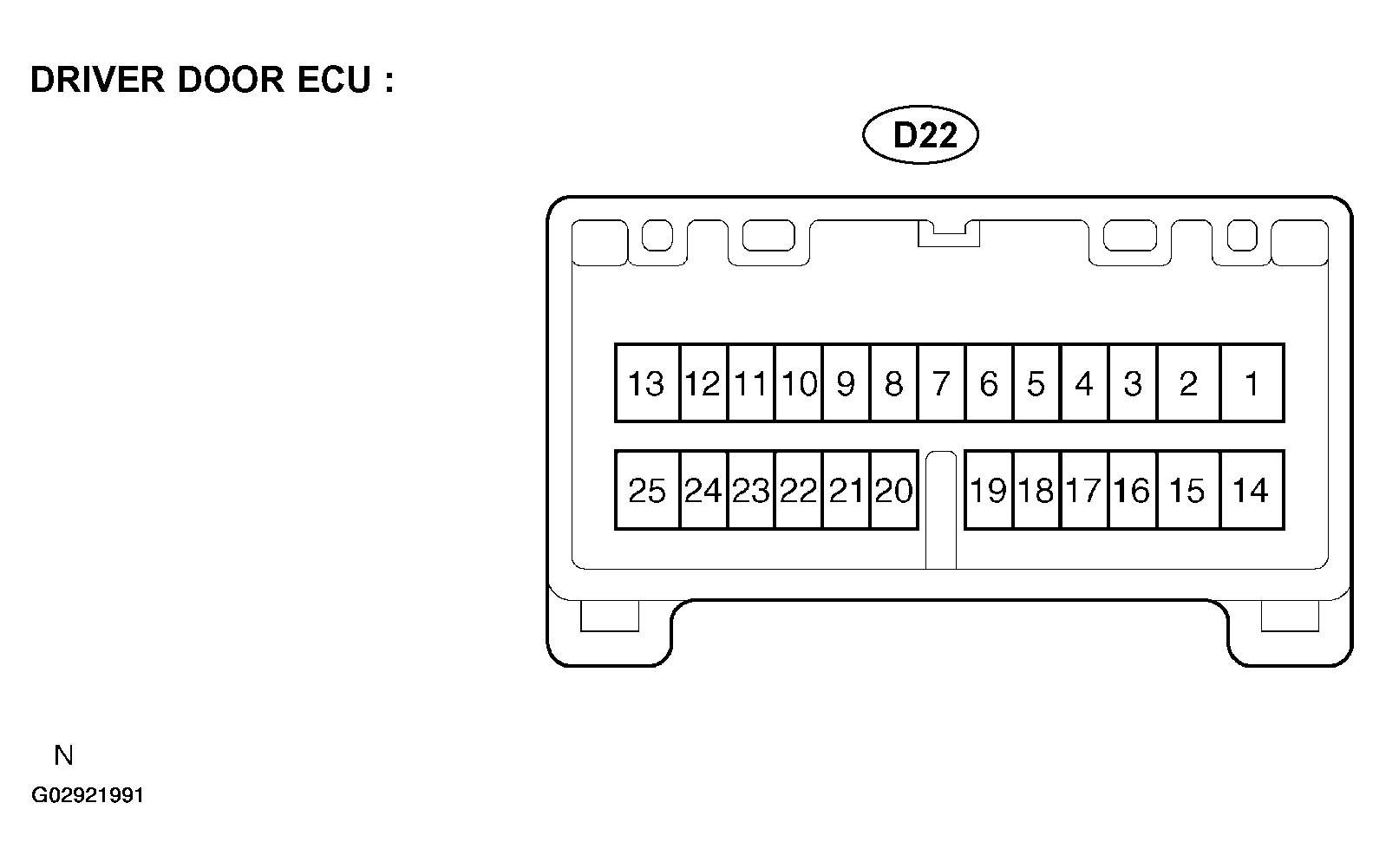

Fig 1: ECU Connector View & Terminal Identification
G02921991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

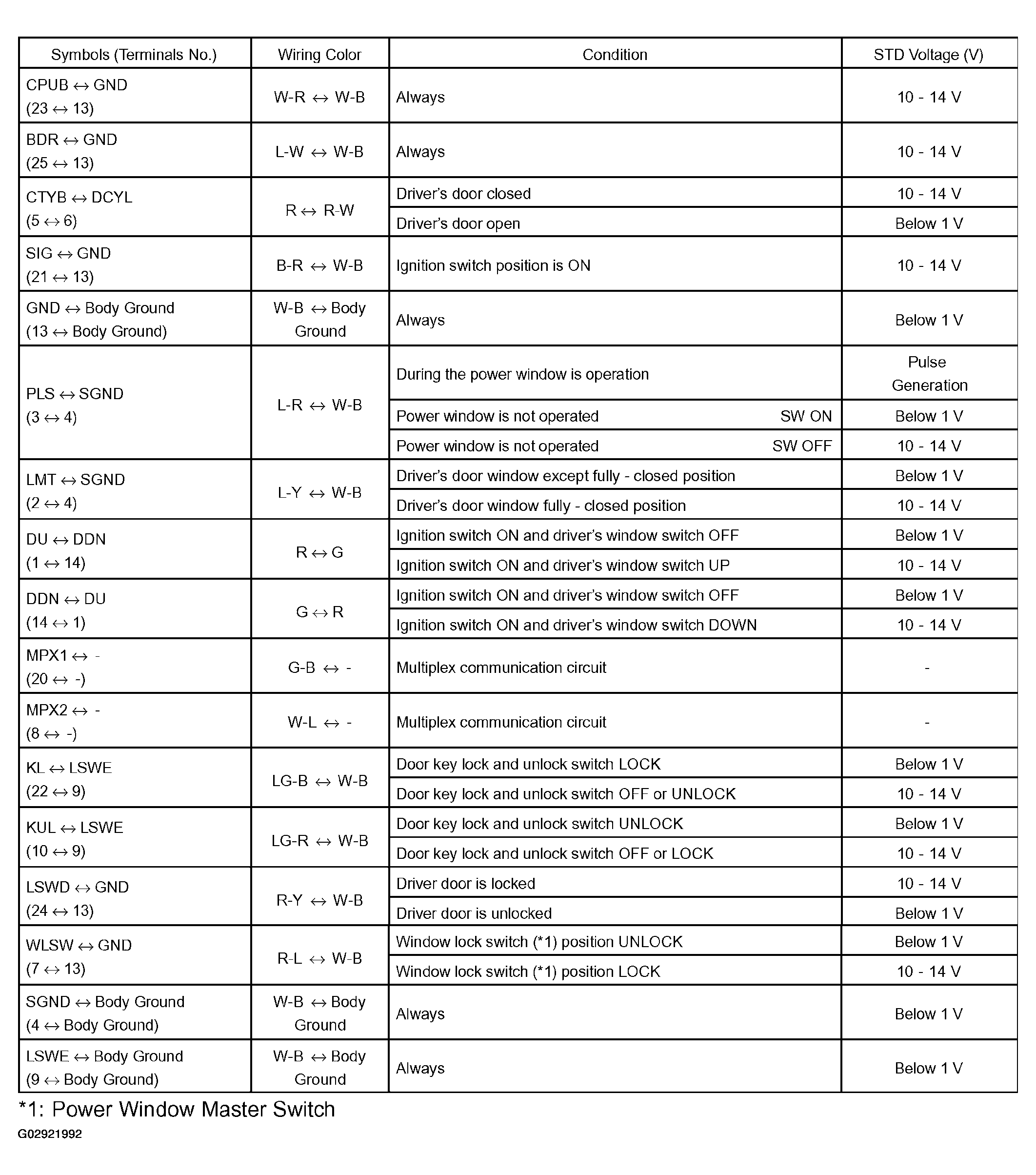

Fig 2: ECU Circuit Identification & Voltage Specifications Table
G02921992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
