Terminals Of Ecu

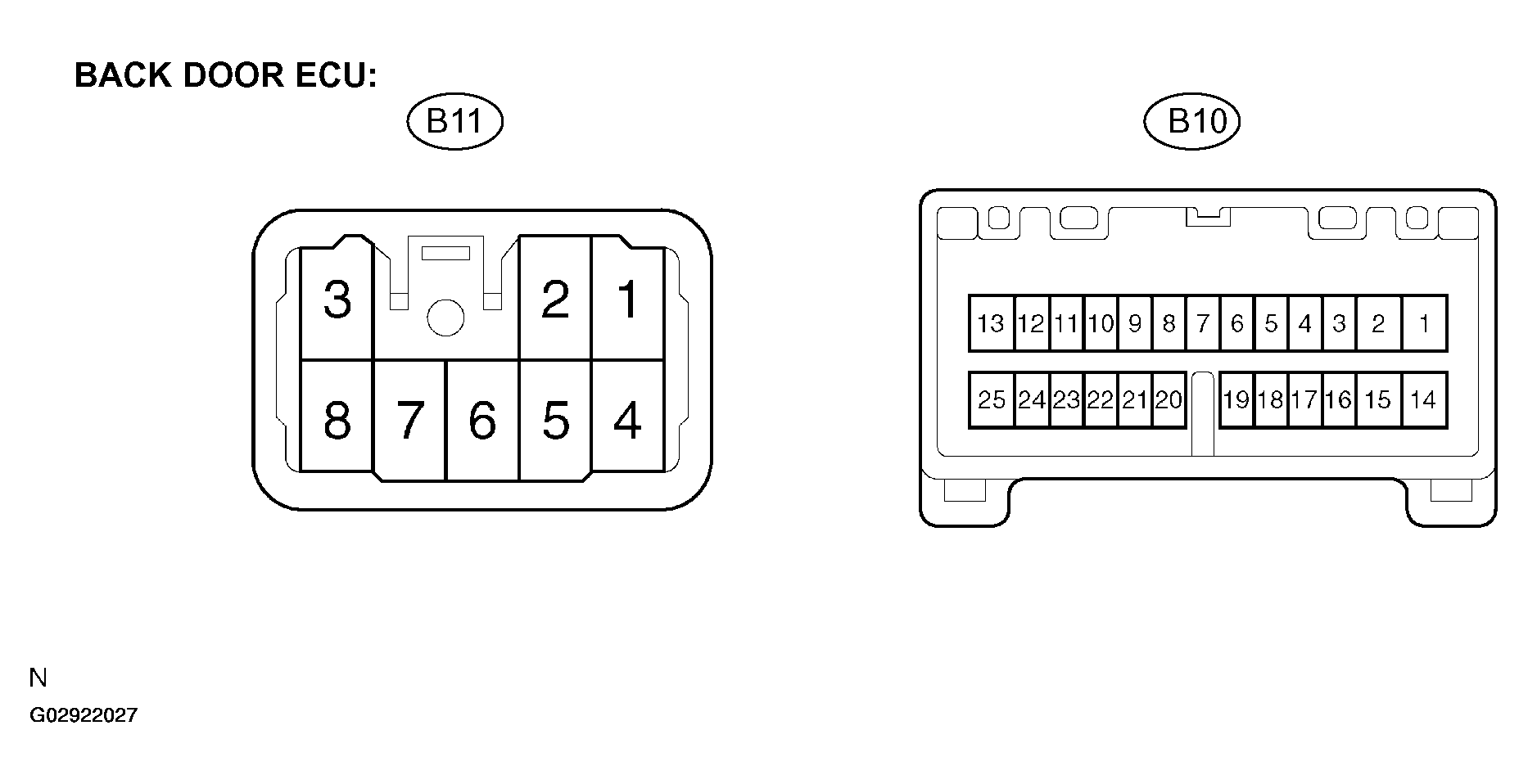

Fig 1: Back Door ECU Connector Views & Terminal Identification
G02922027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

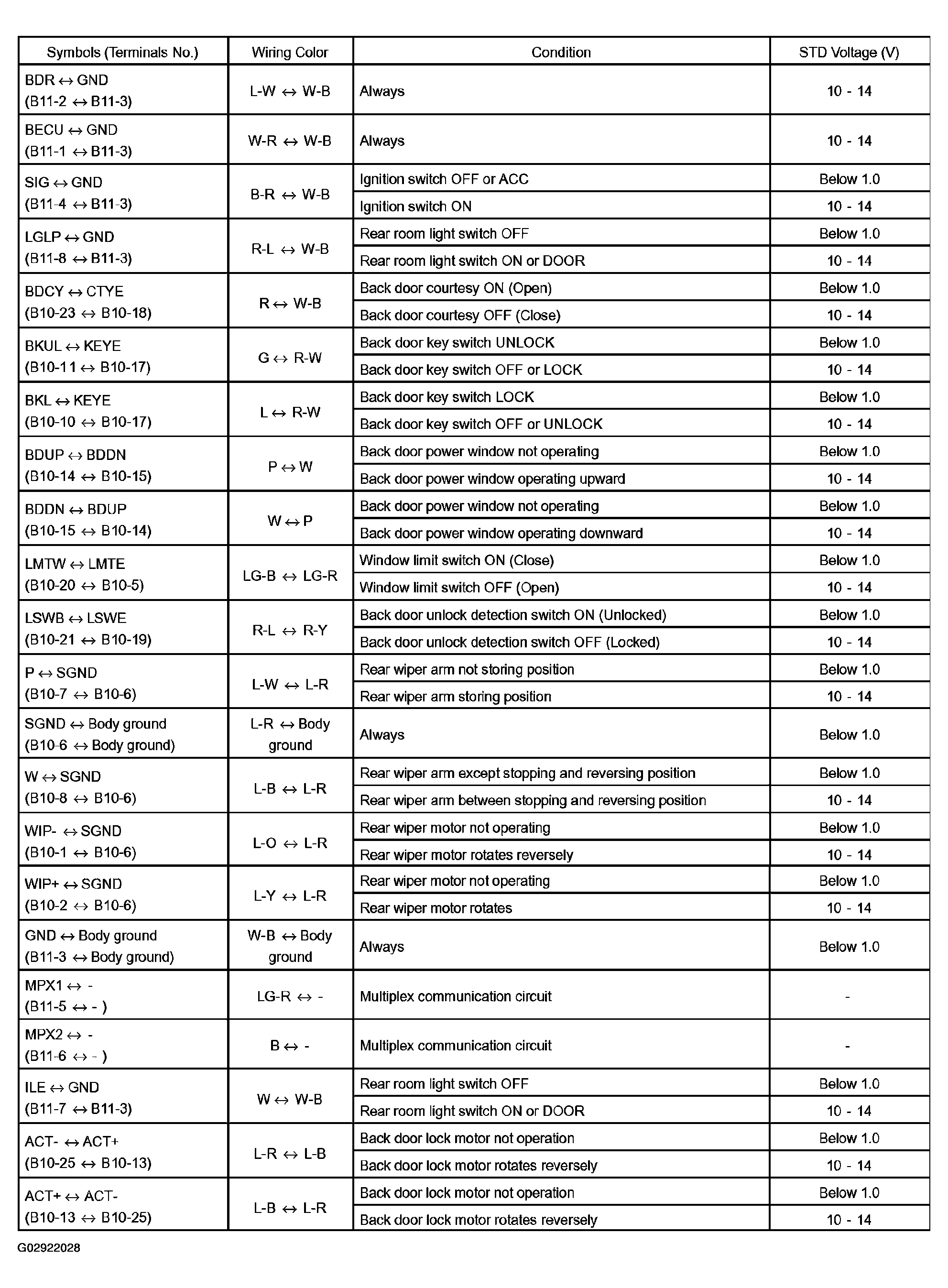

Fig 2: Back Door ECU Circuit Description & Voltage Specifications
G02922028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
