Refrigerant Line: Location

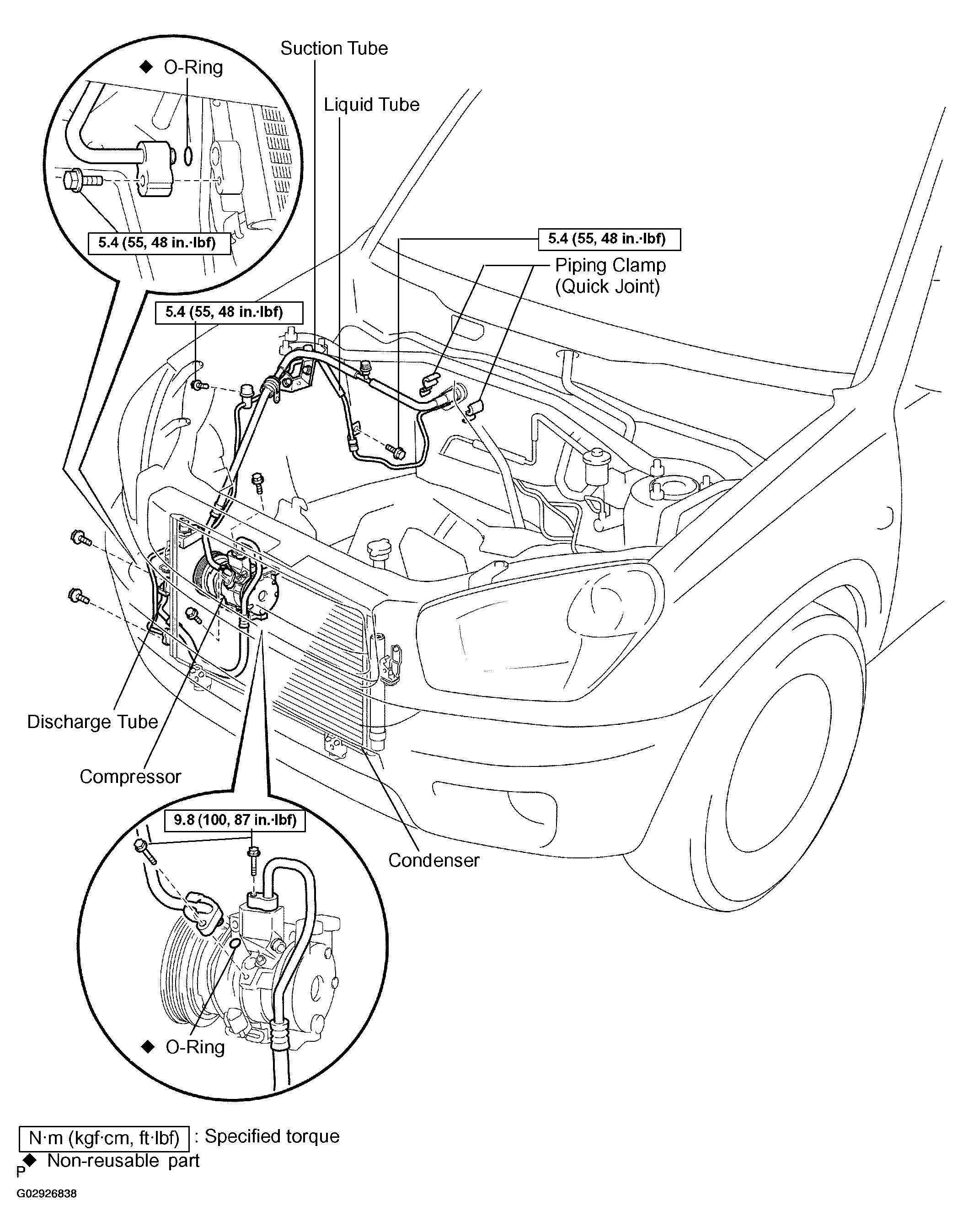

Fig 1: Locating Refrigerant Lines
G02926838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
