Air Conditioning Unit: Disassembly

REMOVE THERMISTOR
1. Disconnect the connector clamp.
2. Release the 4 claws and remove the harness from the plate.
3. Using a screwdriver, pull out the thermistor from the A/C unit case.

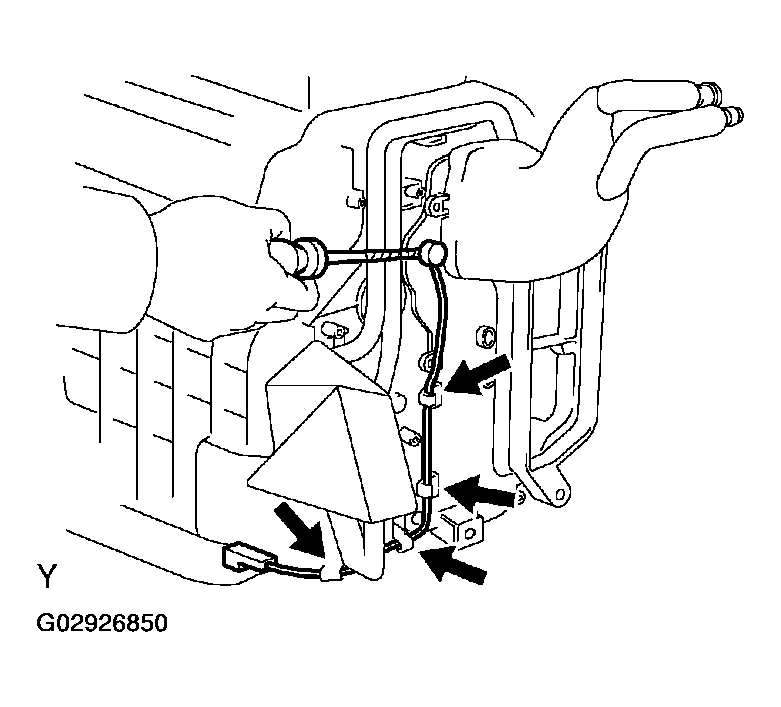

  Fig 1: Pulling Out Thermistor From A/C Unit Case Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
4. Release the 2 claws and remove the thermistor from the bracket plate.

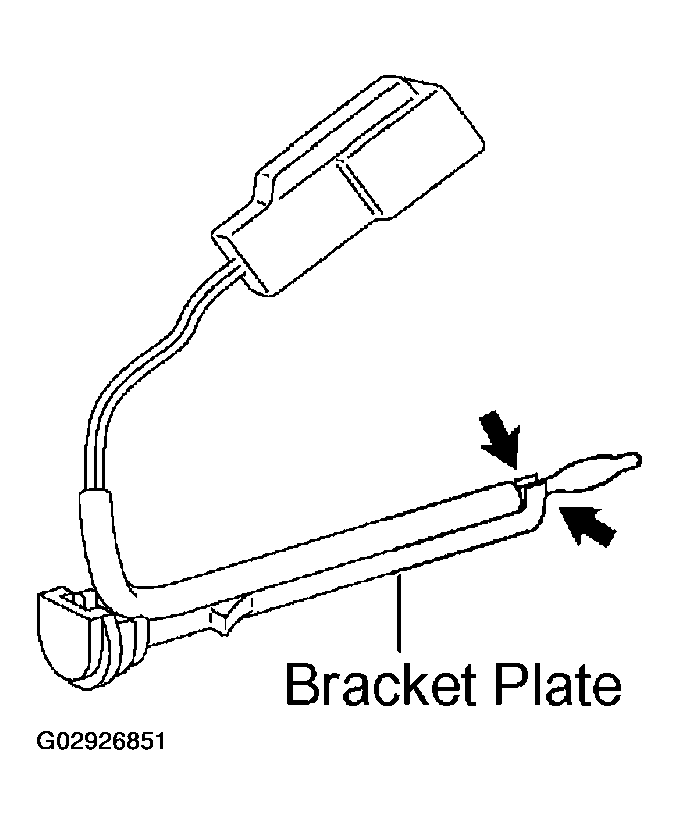

  Fig 2: Removing Thermistor From Bracket Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE EVAPORATOR
1. Remove the 7 screws.
2. Pull out the evaporator from the A/C unit case.
3. Remove the packing.

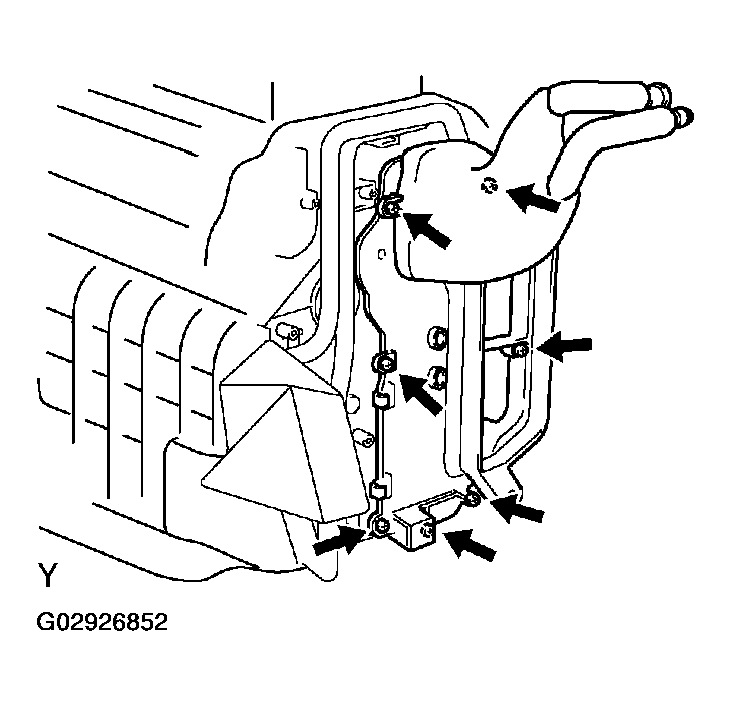

  Fig 3: Removing 7 Screws & Evaporator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE EXPANSION VALVE
1. Remove the evaporator cover.
2. Using a 5 mm hexagon wrench, remove the 2 bolts, and separate the expansion valve and evaporator.

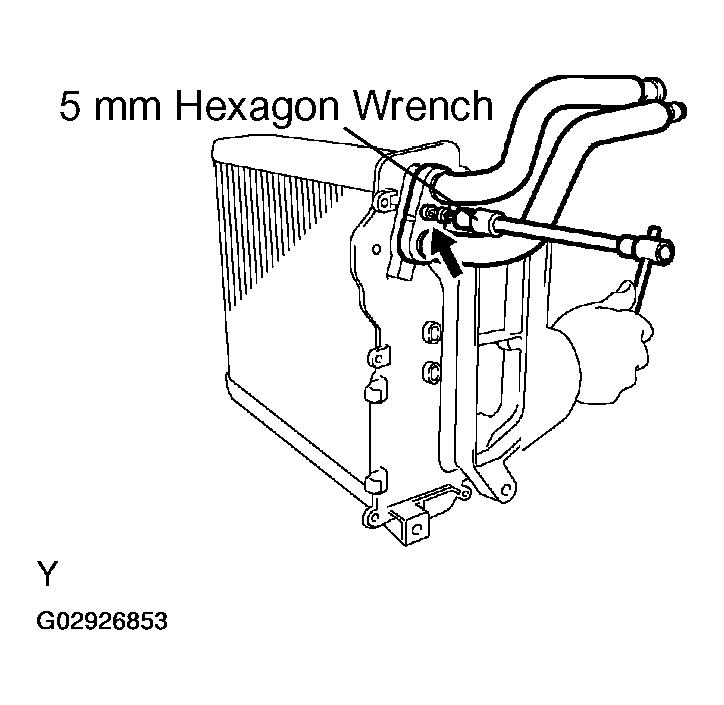

  Fig 4: Removing 2 Bolts Using 5 MM Hexagon Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER RADIATOR
1. Remove the 4 screws and 3 clamps.
2. Remove the passenger air duct subassembly.
3. Pull out the heater radiator from the A/C unit case.

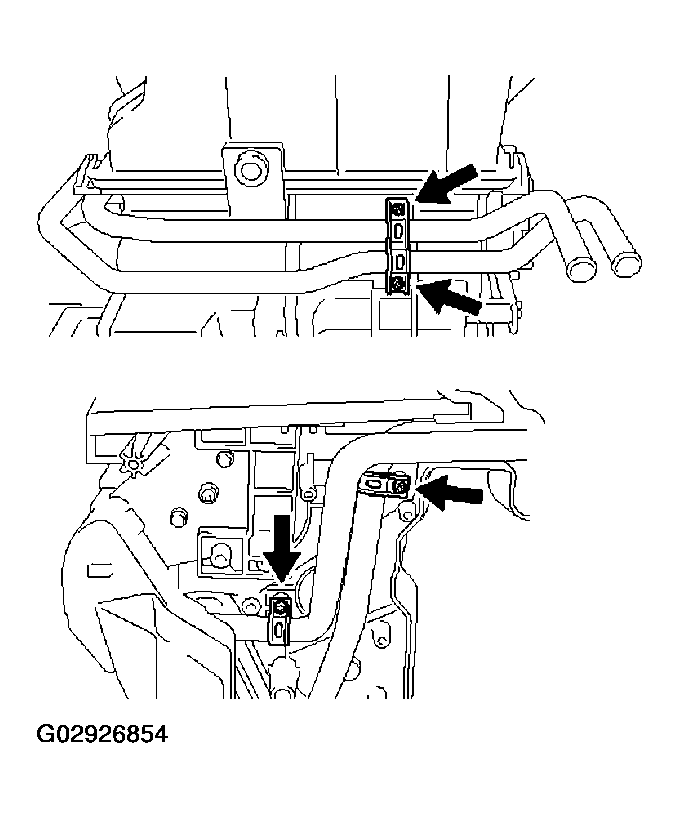

  Fig 5: Removing 4 Screws, 3 Clamps & Heater Radiator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
