DTC P2118: Throttle Actuator Control Motor Current Range/Performance: Wiring Diagram

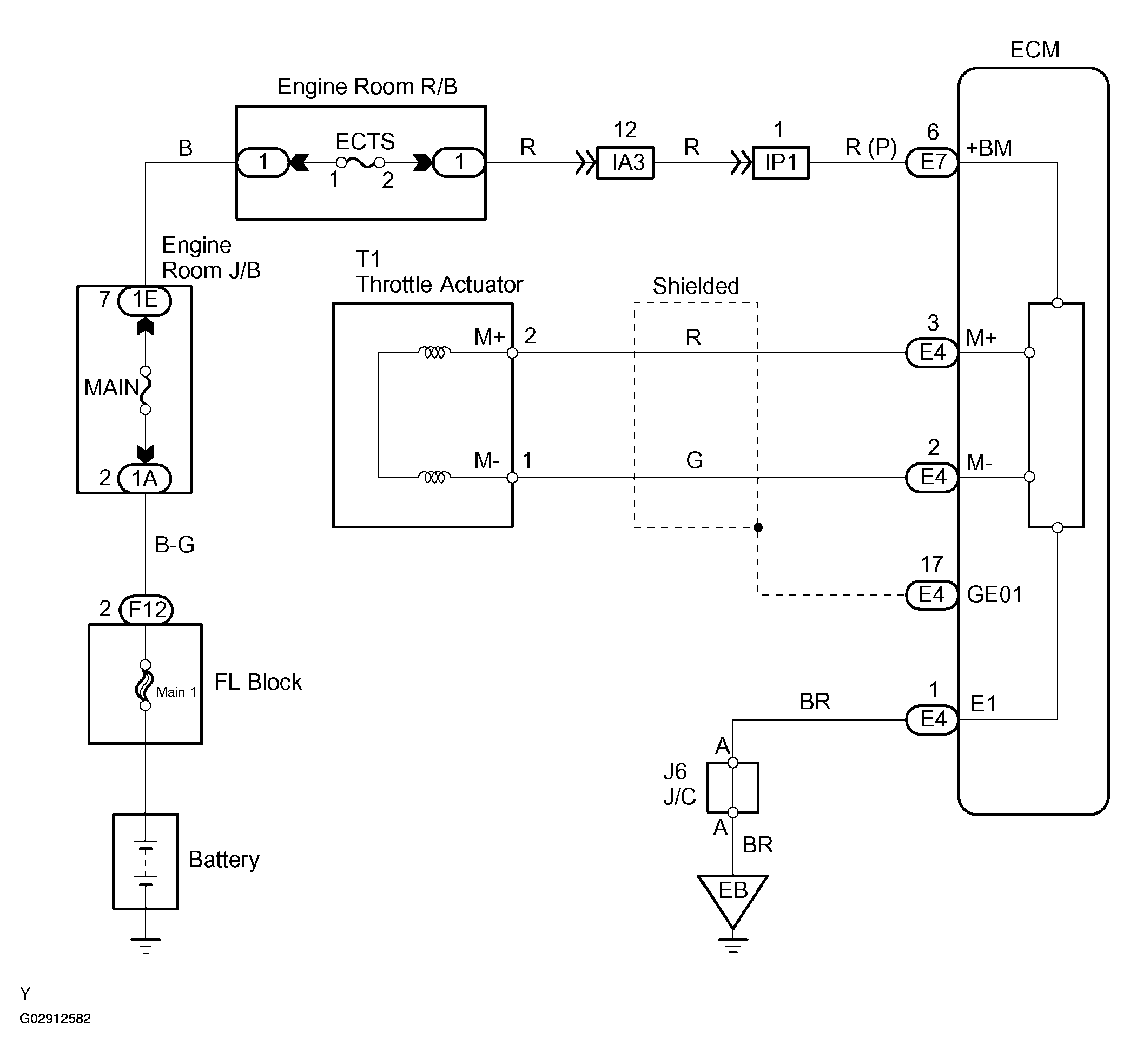

Fig 1: Throttle Actuator Wiring Diagram

G02912582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
