DTC P0617: Starter Relay Circuit High: Wiring Diagram

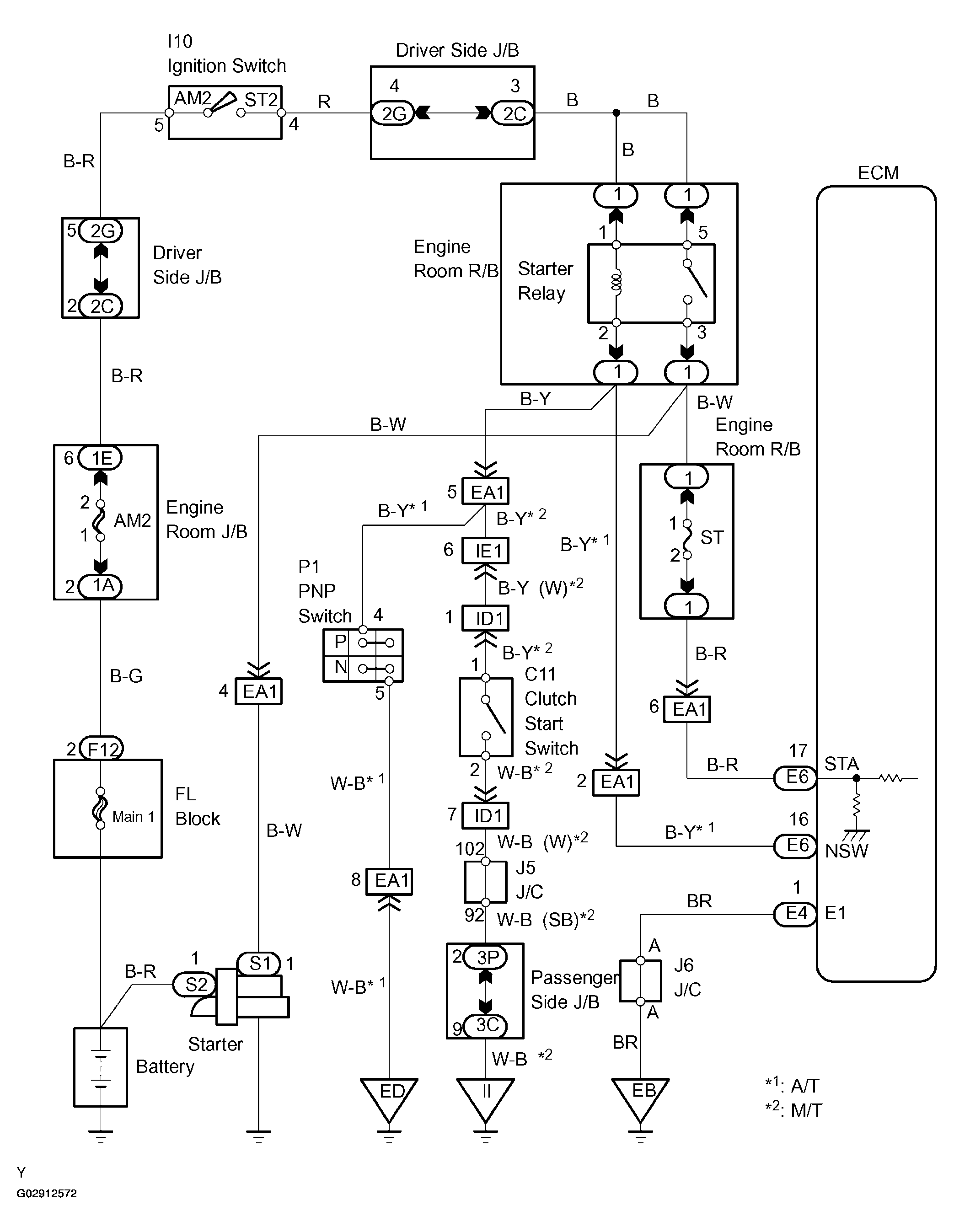

Fig 1: Starter Relay Wiring Diagram

G02912572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
