Abs Actuator: Components

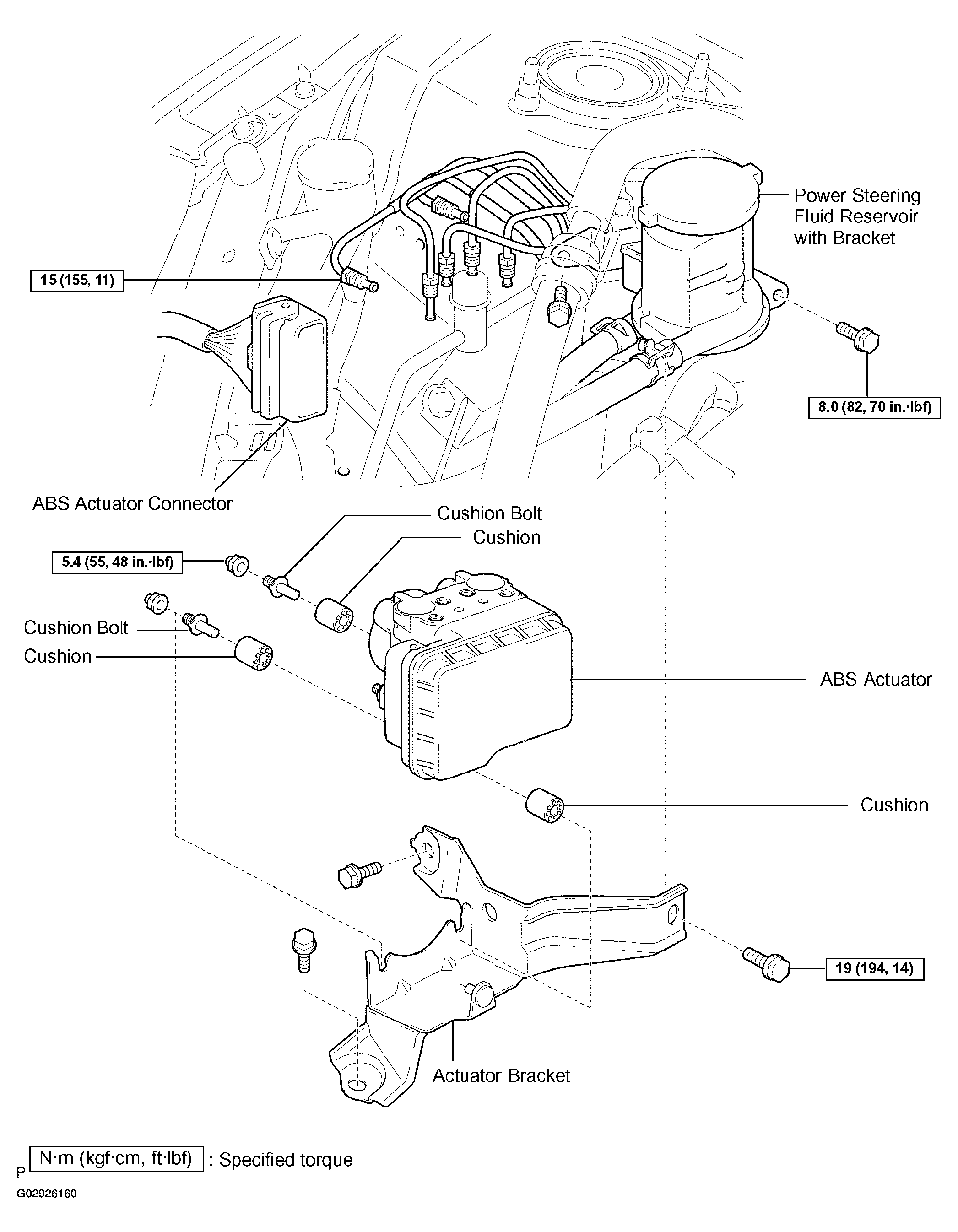

Fig 1: Locating ABS Actuator Components

G02926160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
