Turn Signal And Hazard Warning System

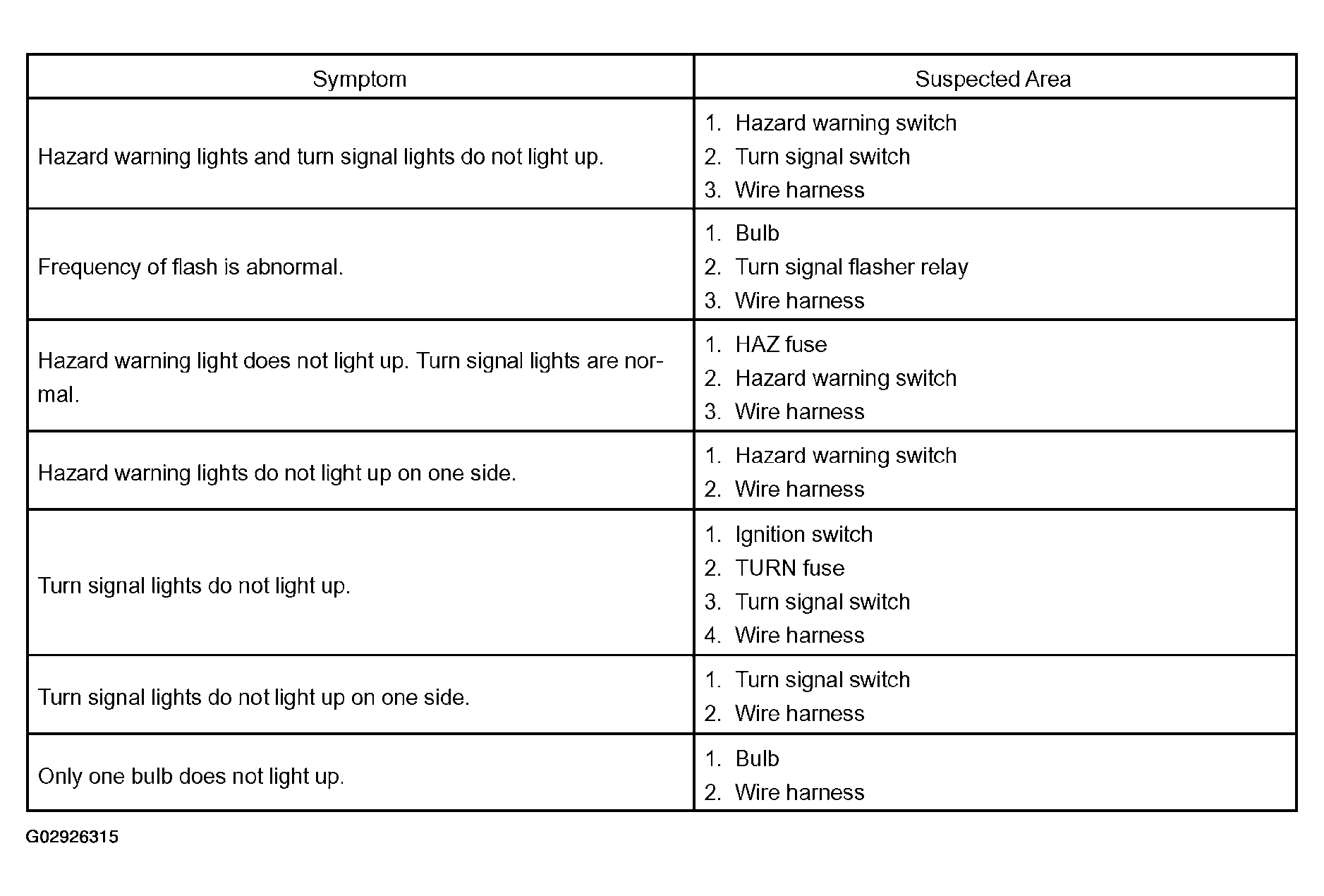

Fig 1: Turn Signal And Hazard Warning System Troubleshooting Table

G02926315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
