Problem Symptoms Table
>>
COMBINATION METER (Warning Lights):
COMBINATION METER (Warning Lights):

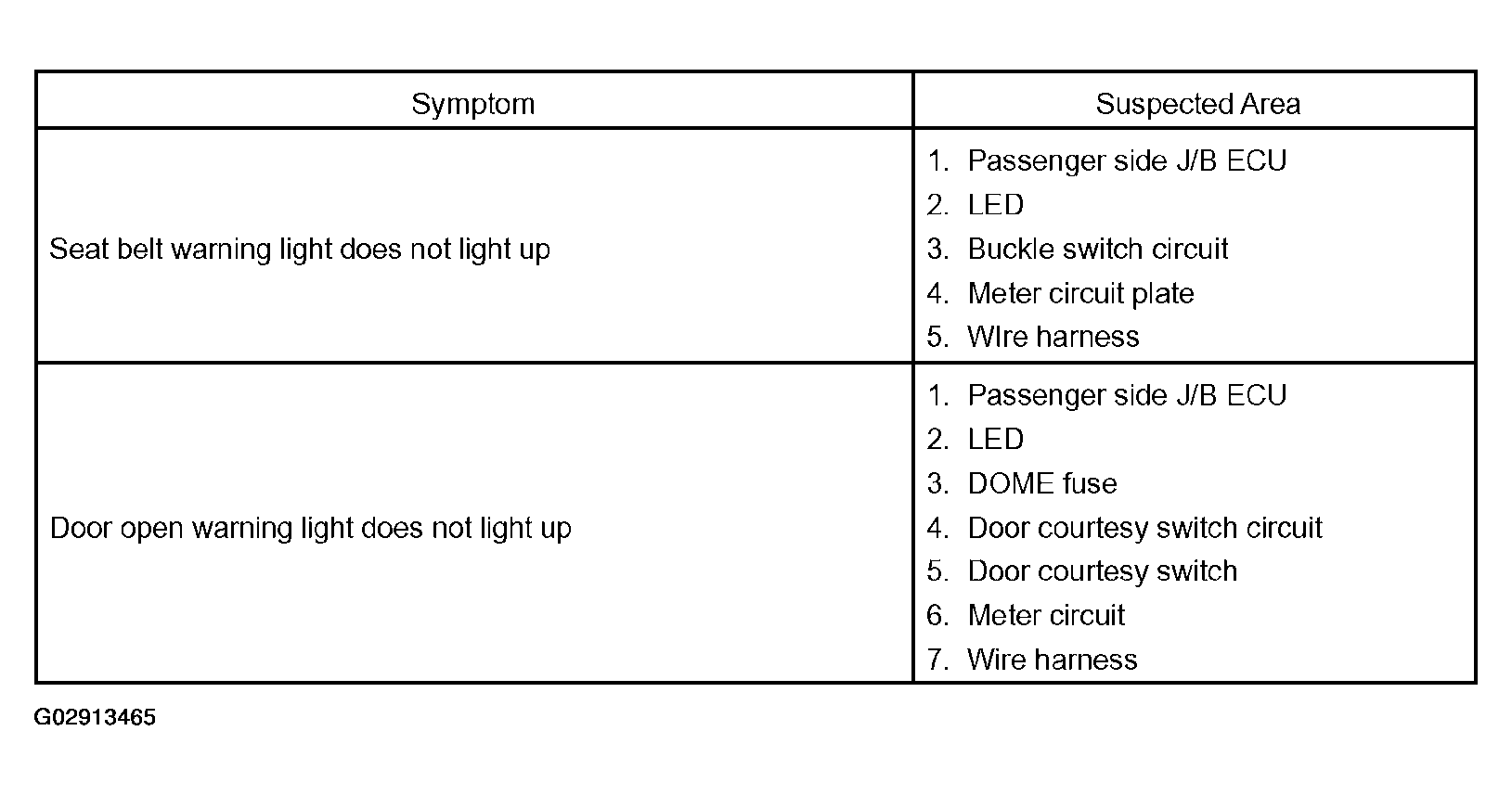

Fig 1: Problem Symptom Table - Combination Meter (Warning Lights)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
