Wireless Door Lock Receiver Circuit: Wiring Diagram

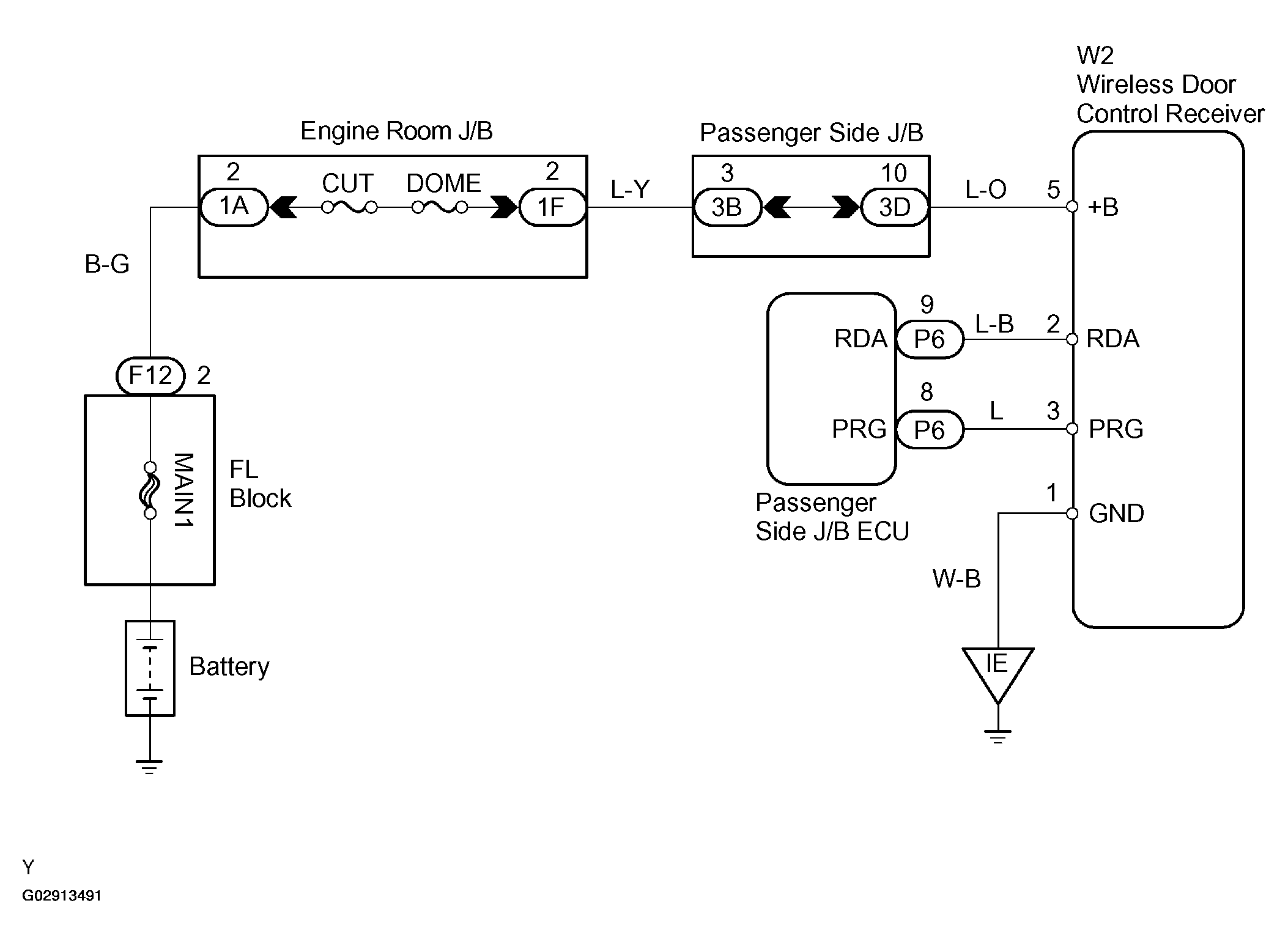

Fig 1: Wiring Diagram Of Wireless Door Lock Receiver Circuit

G02913491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
