RAV4 Base, AWD, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Body, Cab Control Systems
>>
Body Control Systems - Diagnostics
>>
Circuit Inspection
>>
H-LP Relay Circuit
>>
Wiring Diagram
H-LP Relay Circuit: Wiring Diagram

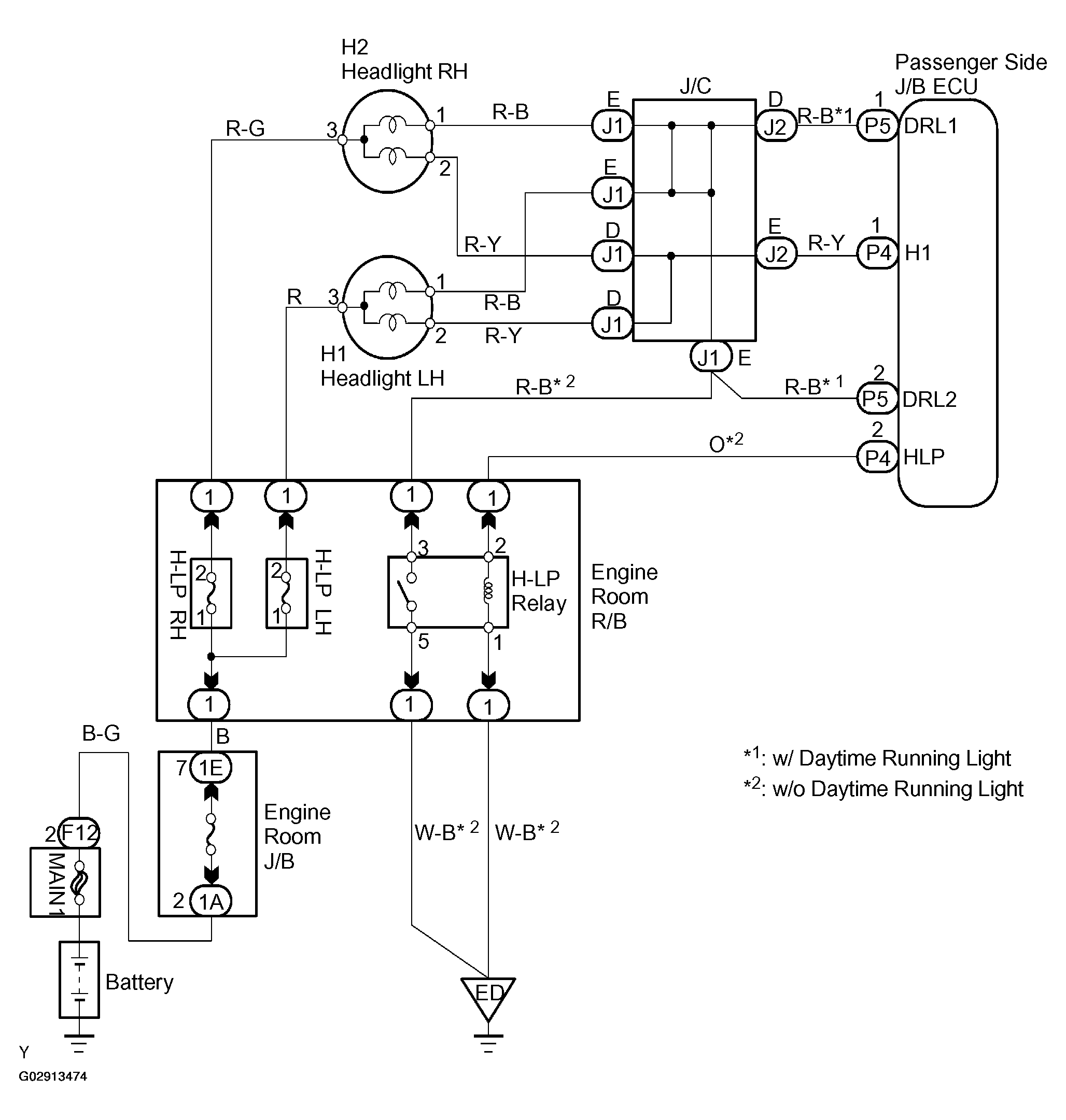

Fig 1: Wiring Diagram Of H-LP Relay Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
