Door Key Lock and Unlock Switch Circuit: Wiring Diagram

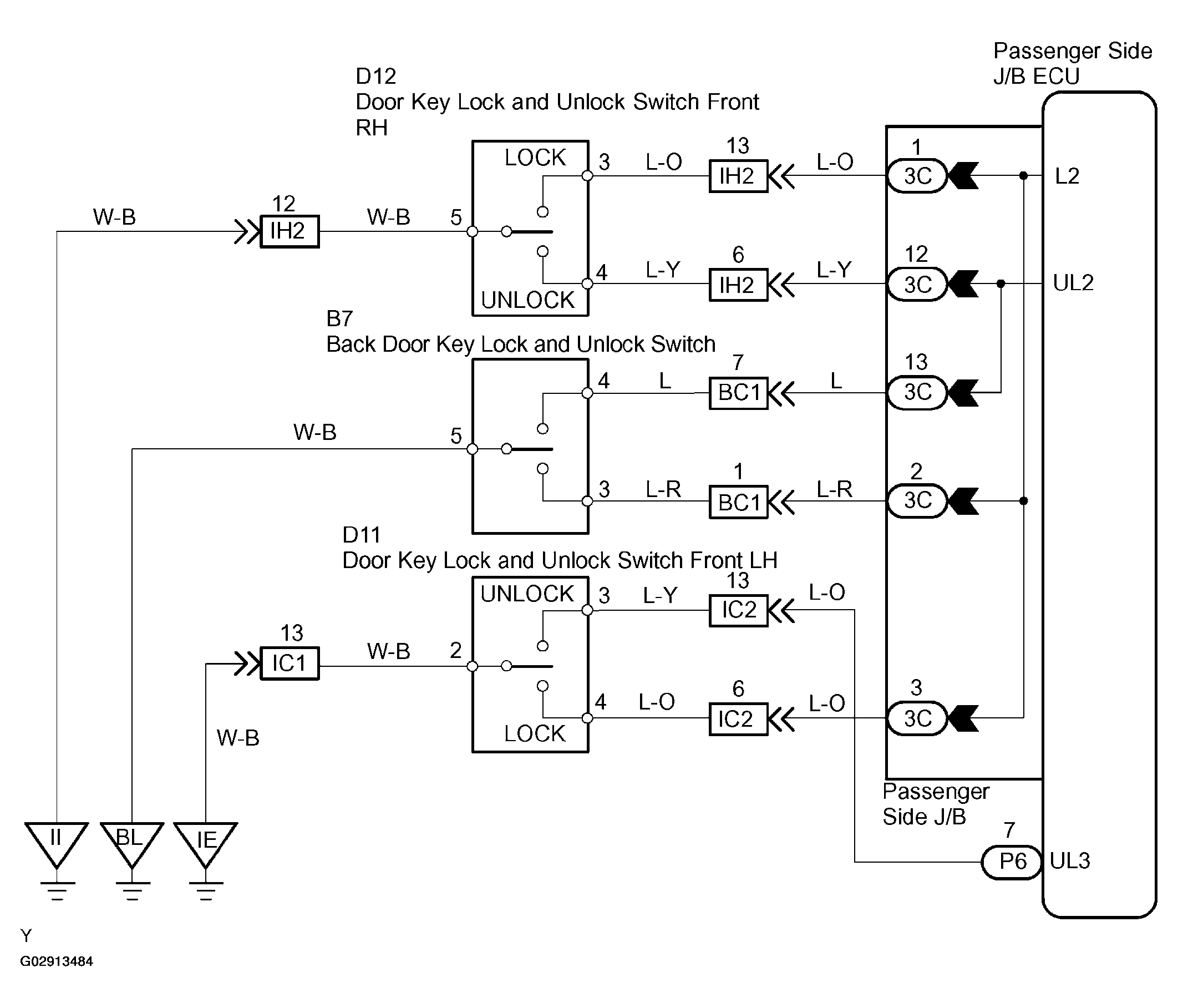

Fig 1: Wiring Diagram Of Door Key Lock And Unlock Switch Circuit

G02913484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
