Circuit Description

Refer to DTC P0115 on DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT, DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT, DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT  .

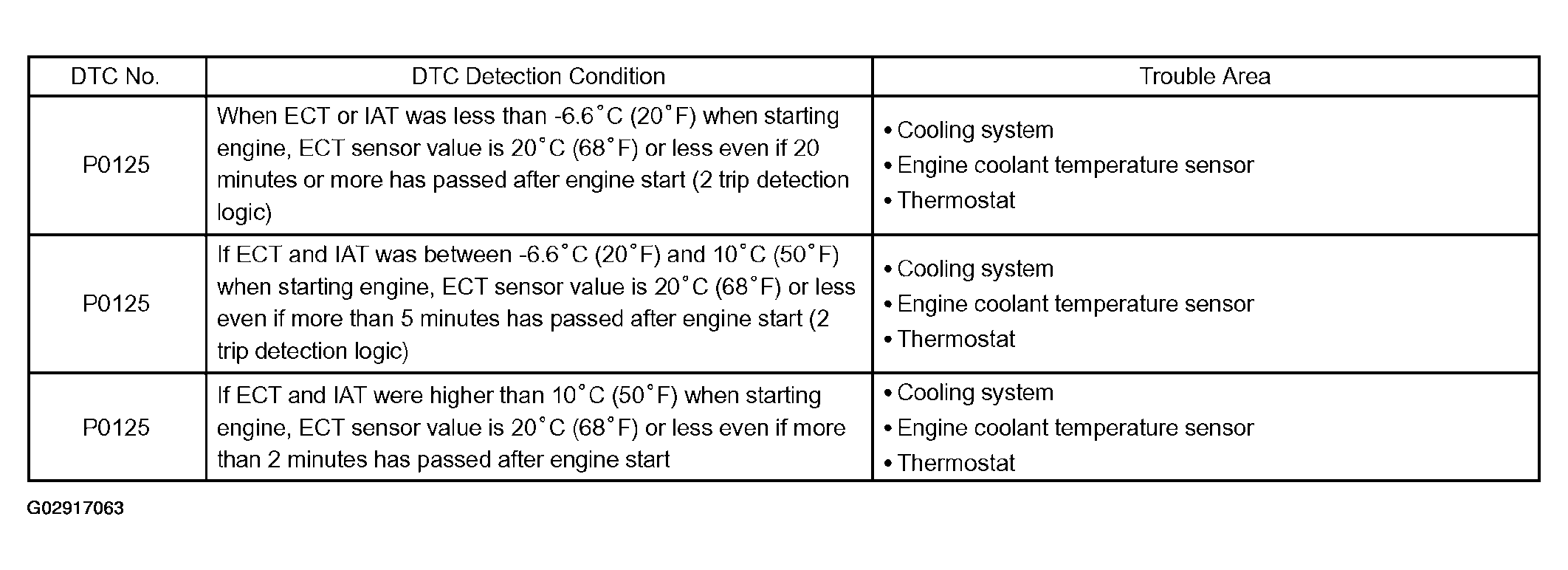

Fig 1: DTC Detection Condition Tremble Area Table
G02917063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

ECT represents engine coolant temperature, and IAT represents intake air temperature.
