Auto Up Operation Does Not Fully Close Power Window (Jam Protection Function Is Activated): Wiring Diagram

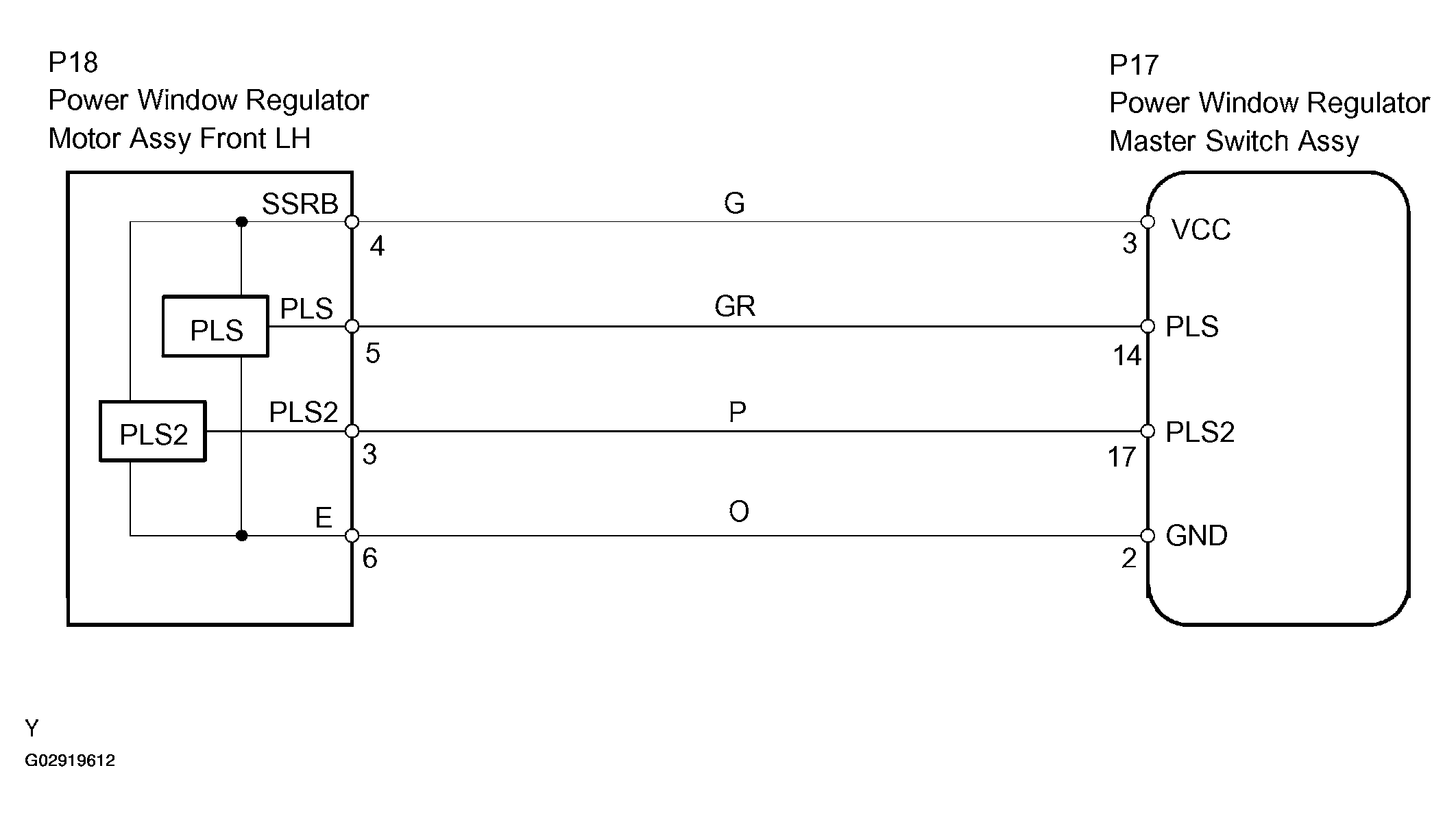

Fig 1: Wiring Diagram-Auto UP Operation

G02919612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
