Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C amplifier.

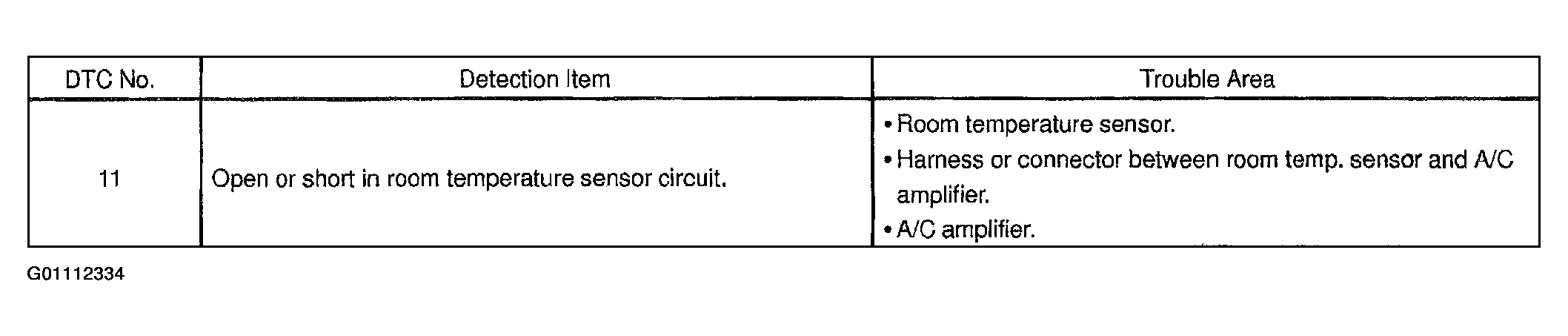

Fig 1: Identifying DTC 11 Trouble Areas
G01112334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
