Home >> Toyota >> 2004 >> Matrix XRS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (SFI) - Diagnostics (2ZZ-GE) >> DTC P0116: Engine Coolant Temp. Circuit Range/Performance Problem >> Monitor Strategy

Monitor Strategy

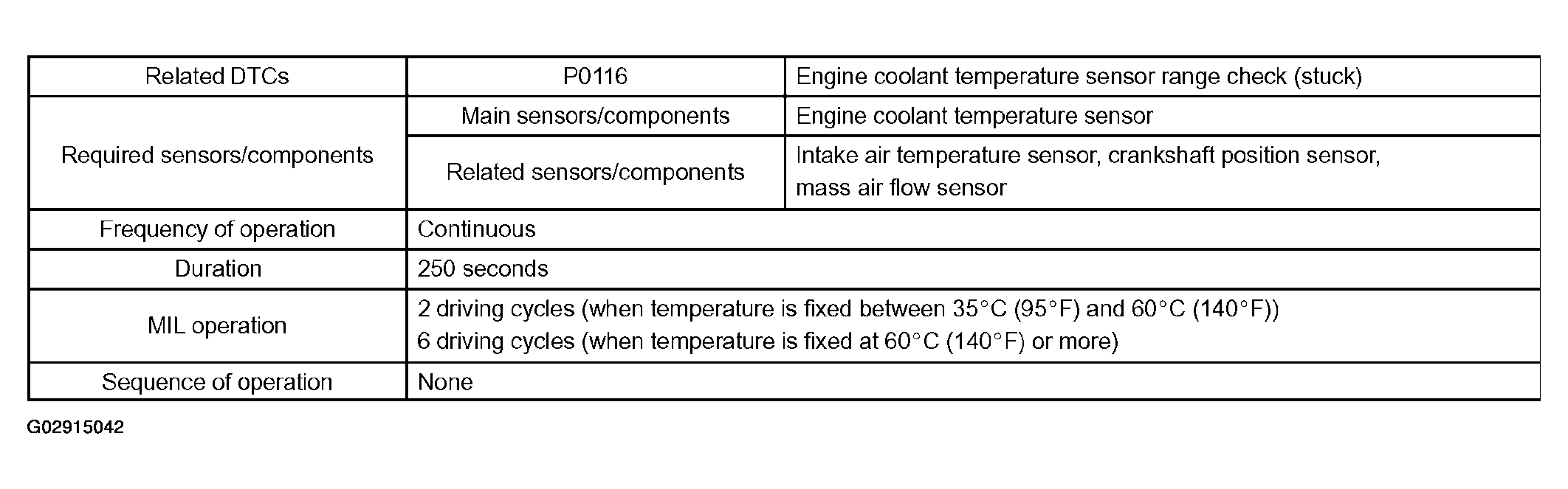

Fig 1: Monitor Strategy Table

G02915042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
