Rear View Mirror: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

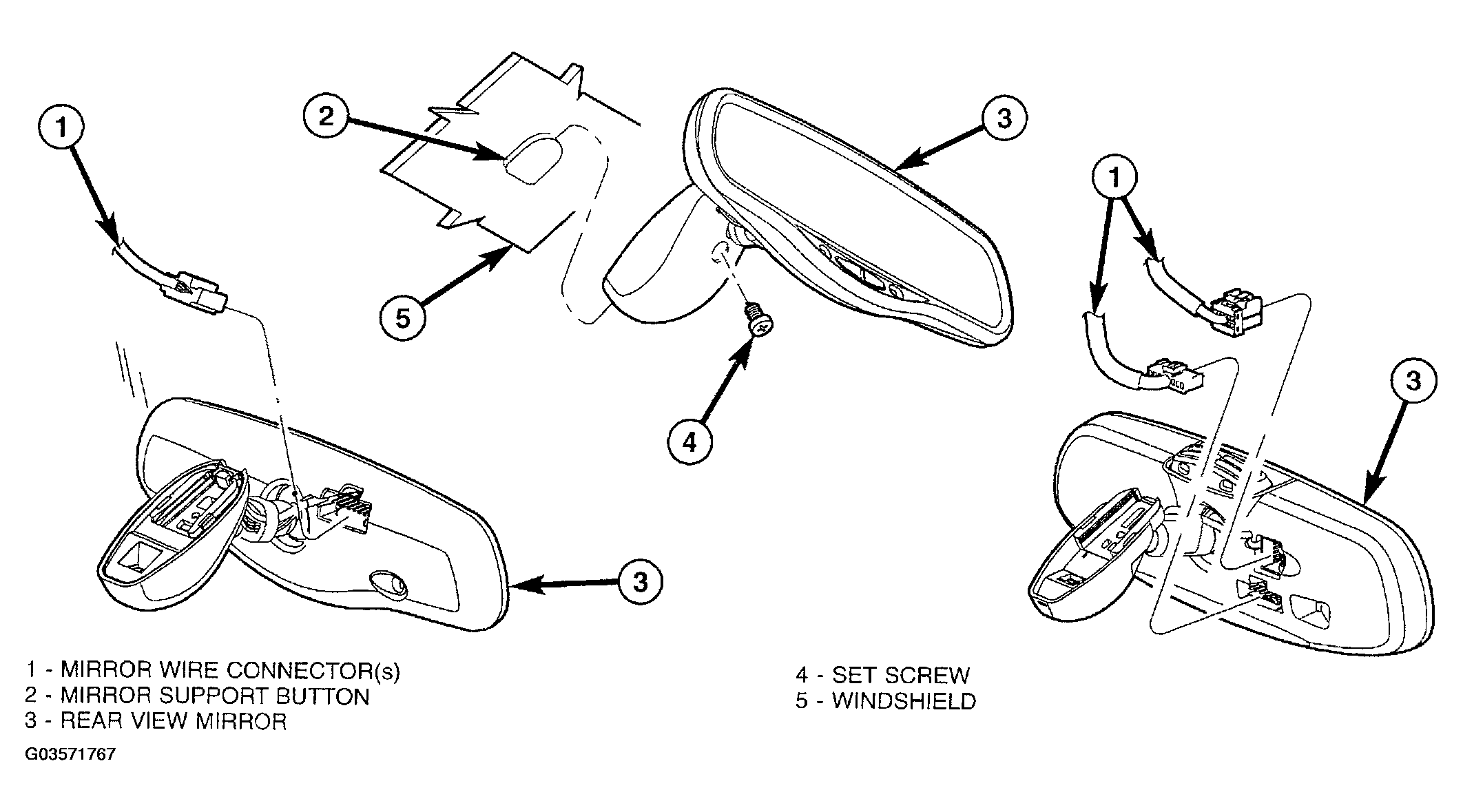

  1. Position the mirror base at the support button and slide it downward onto the button (Figure).
  2. Tighten the set screw 1 N.m (15 in. lbs.) torque.
  3. If equipped, connect mirror wire connector(s).
