Oil Pressure Sensor/Switch: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply Mopar(R) Thread Sealant to the switch threads.

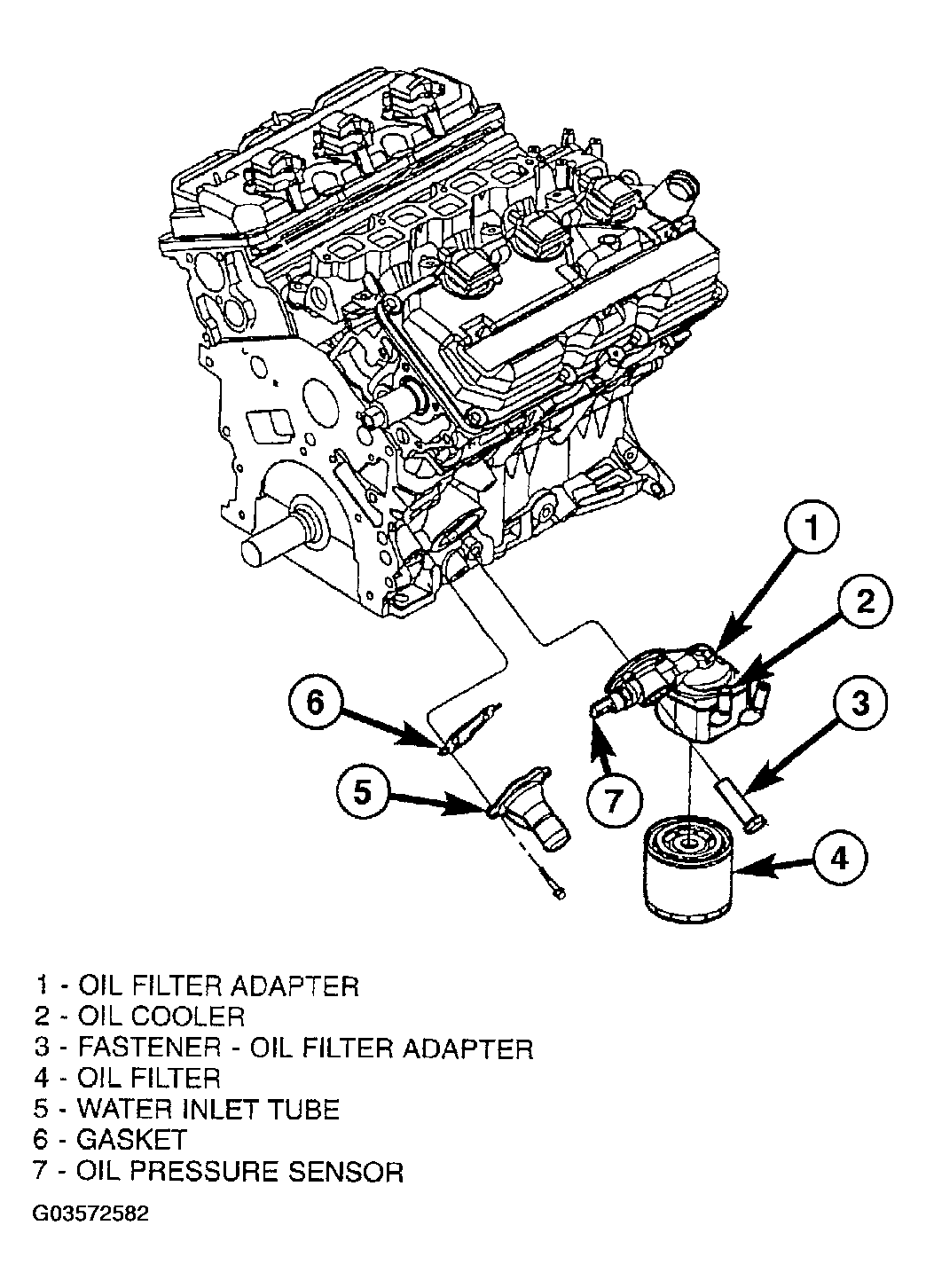

  2. Install oil pressure switch to fitting (Figure ).
  3. Connect electrical connector.
  4. Lower vehicle.
  5. Start engine and check for leaks.
  6. Check engine oil level and adjust as neccessary.
