Flex Plate: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

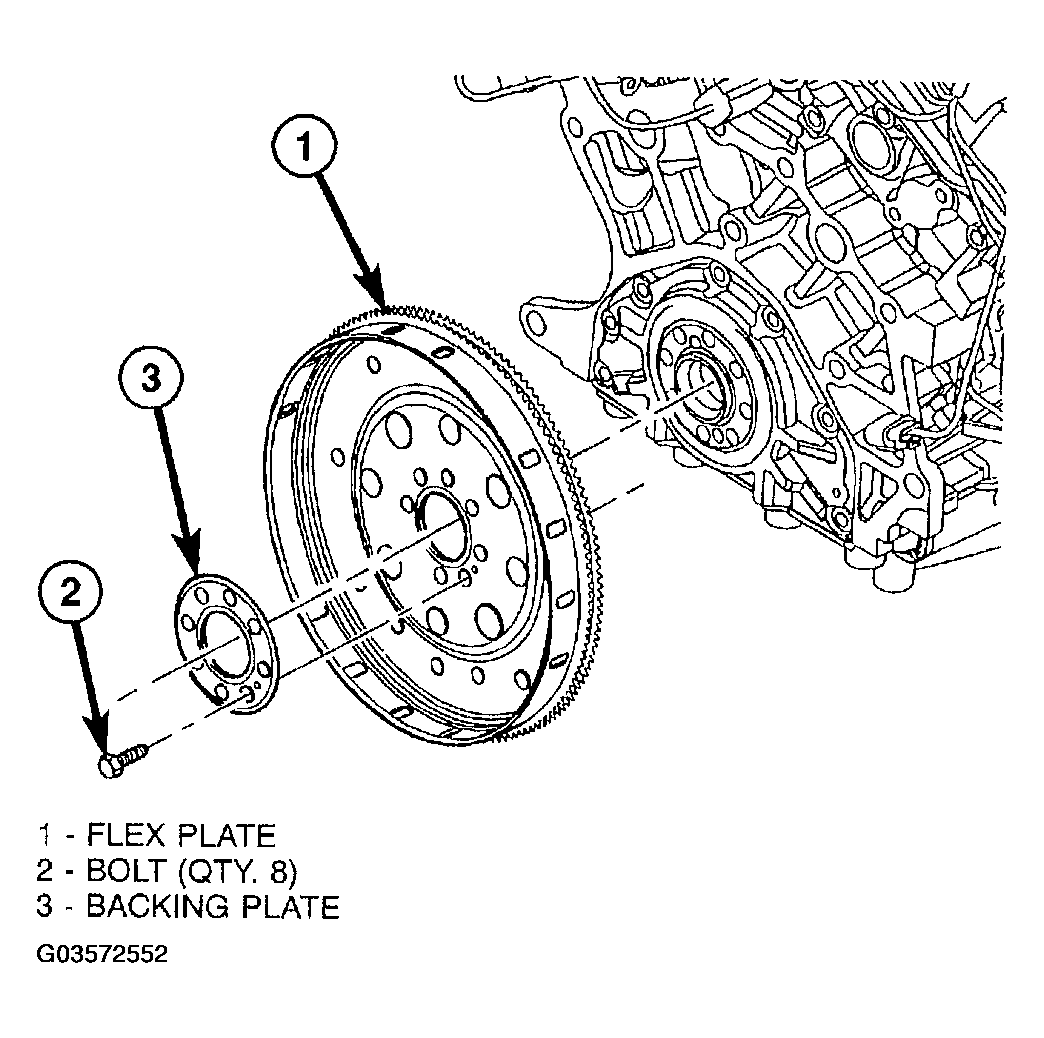

  1. Position flex plate with backing plate on the crankshaft (Figure ).
  2. Apply Mopar(R) Lock & Seal Adhesive to the flex plate bolts.
  3. Install flex plate bolts (Figure ). Tighten bolts to 95 N.m (70 ft. lbs.).
  4. Install the transaxle (Refer to 41AE/TE AUTOMATIC TRANSAXLE ).
