Transmission Floor Shift Assembly: Components

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

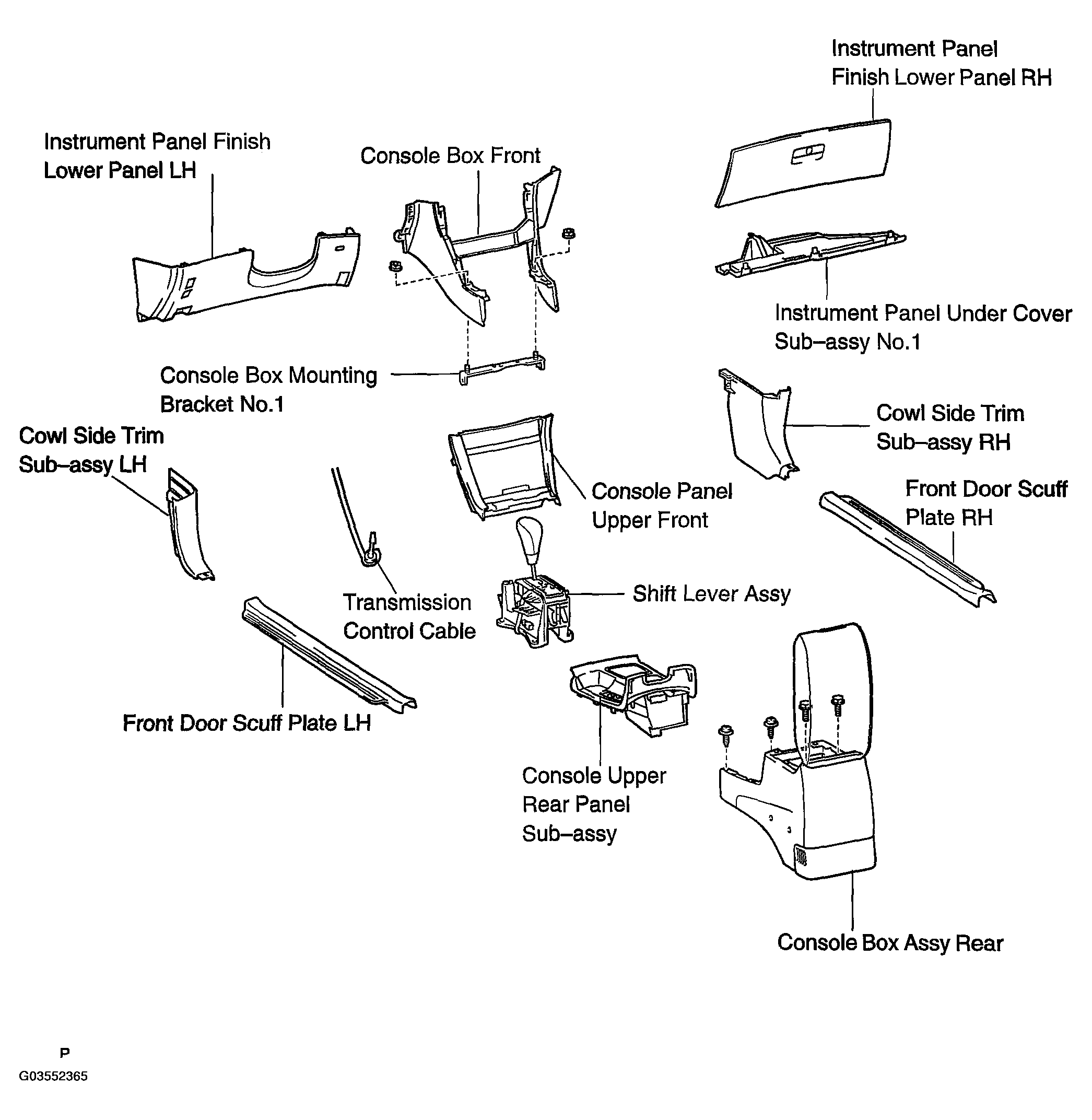

Fig 1: Identifying Transmission Floor Shift Assembly Components (1 Of 2)
G03552365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

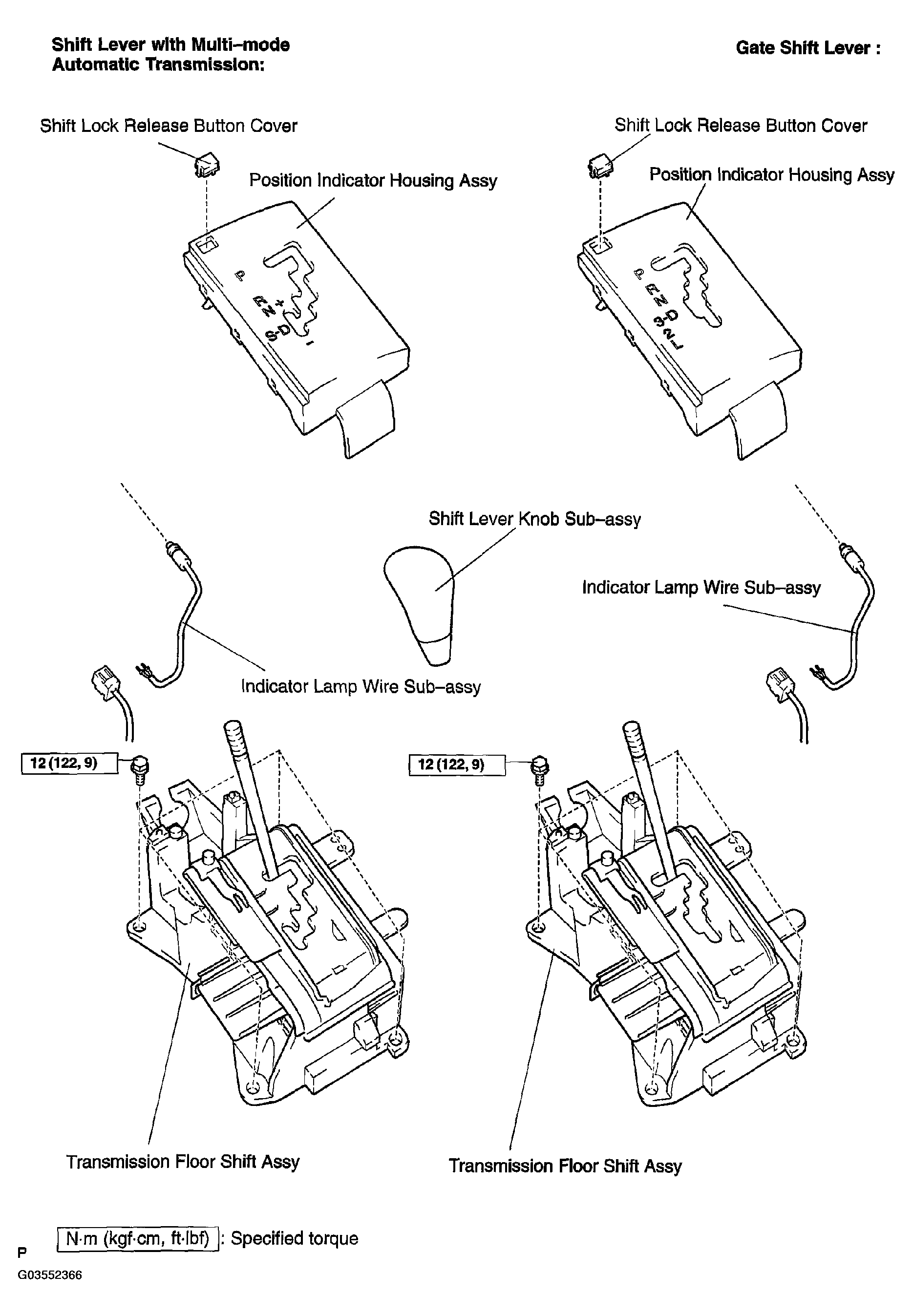

Fig 2: Identifying Transmission Floor Shift Assembly Components (2 Of 2)
G03552366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
