Speed Sensor (ATM): Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AIR CLEANER ASSY (SEE REPLACEMENT )
REMOVE AIR CLEANER HOSE NO.1
REMOVE AIR CLEANER BRACKET
REMOVE AIR CLEANER INLET NO.1
REMOVE SPEED SENSOR (NT SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and transmission revolution sensor.

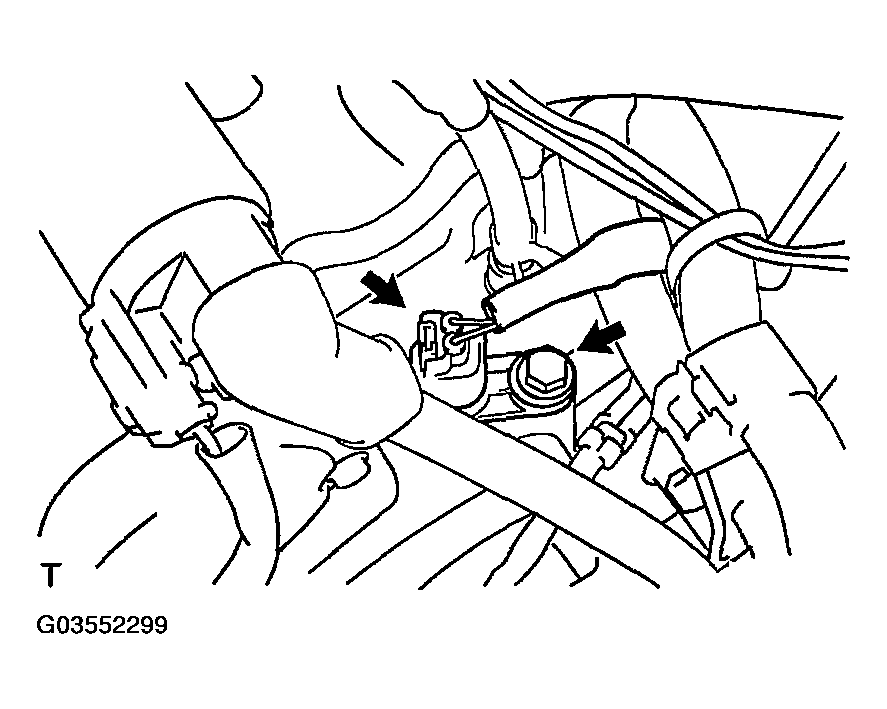

  Fig 1: Removing Speed Sensor (NT Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR (NC SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and transmission revolution sensor.

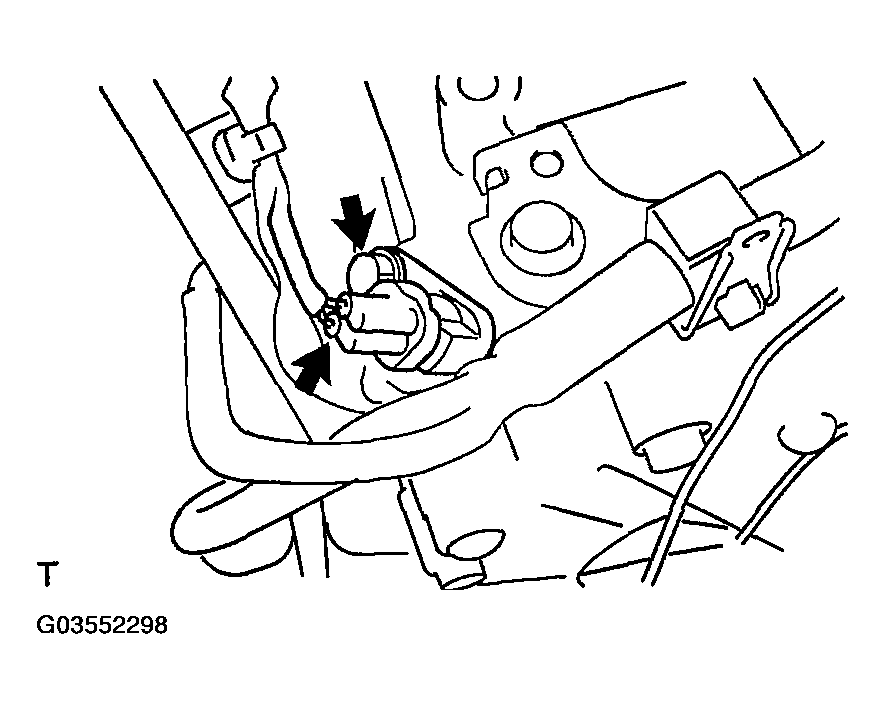

  Fig 2: Removing Speed Sensor (NC Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR (NC SENSOR)
1. Coat an O-ring with ATF.
2. Install the speed sensor with the bolt.
  Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

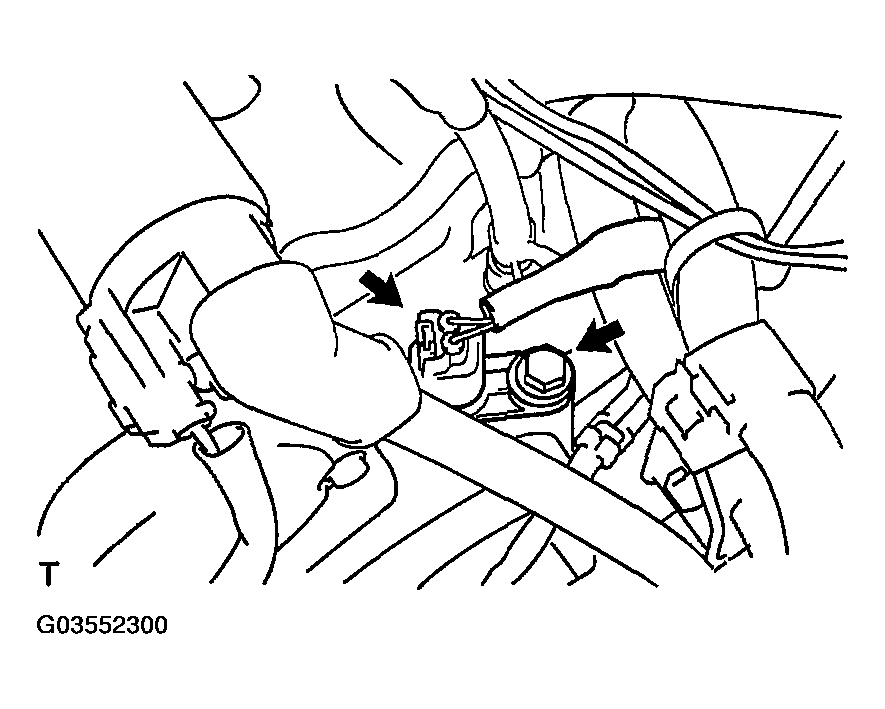

  Fig 3: Installing Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Make sure of the manufacturer's name.
3. Connect the speed sensor connector.
INSTALL SPEED SENSOR (NT SENSOR)
1. Coat an O-ring with ATF.
2. Install the speed sensor with the bolt.
  Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

  HINT:

  Make sure of the manufacturer's name.
3. Connect the speed sensor connector.

  Fig 4: Installing Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER INLET NO.1
INSTALL AIR CLEANER BRACKET
INSTALL AIR CLEANER HOSE NO.1
INSTALL AIR CLEANER ASSY (SEE REPLACEMENT )
