- CHECK WIRE HARNESS (DLC3 - SKID CONTROL ECU)
- Turn the ignition switch to the LOCK position.
- Disconnect the skid control ECU connector.
- Measure the resistance according to the value(s) in SPECIFIED CONDITION .
Standard:

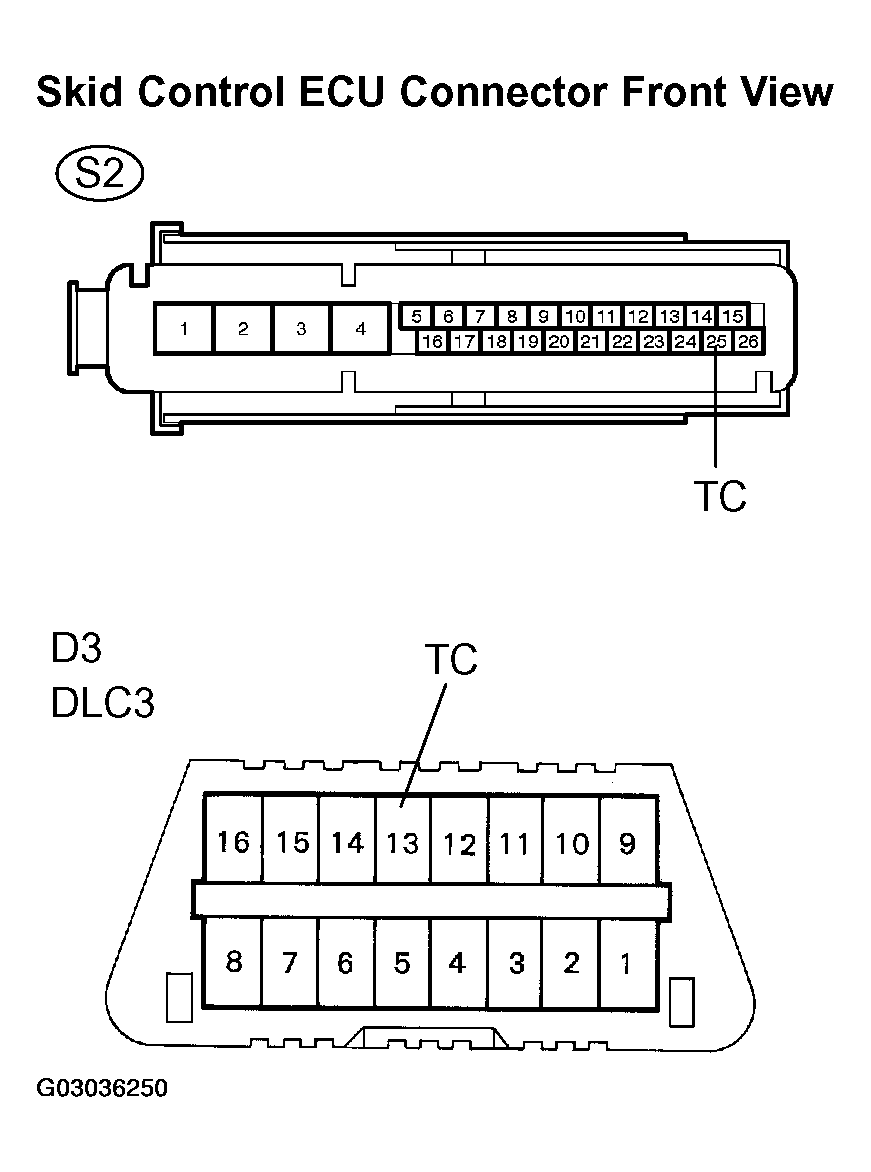

SPECIFIED CONDITIONTester Connection Condition Specified Condition D3-13 (TC) - S2-25 (TC) Always Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR WIRE HARNESS
- OK: Go to Next Step.
- CHECK WIRE HARNESS (CG OF DLC3 - BODY GROUND)
- Measure the resistance according to the value(s) in SPECIFIED CONDITION .
Standard:

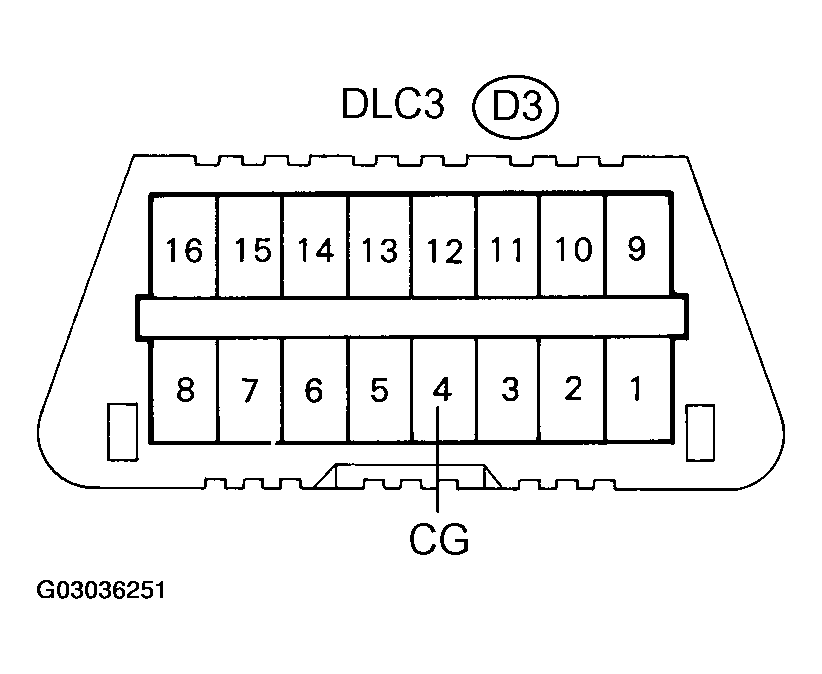

SPECIFIED CONDITIONTester Connection Condition Specified Condition D3-4 (CG) - Body ground Always Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR WIRE HARNESS
- OK: Go to Next Step.
- CHECK WIRE HARNESS (TC OF SKID CONTROL ECU - BODY GROUND)
- Measure the resistance according to the value(s) in SPECIFIED CONDITION
.
Standard:

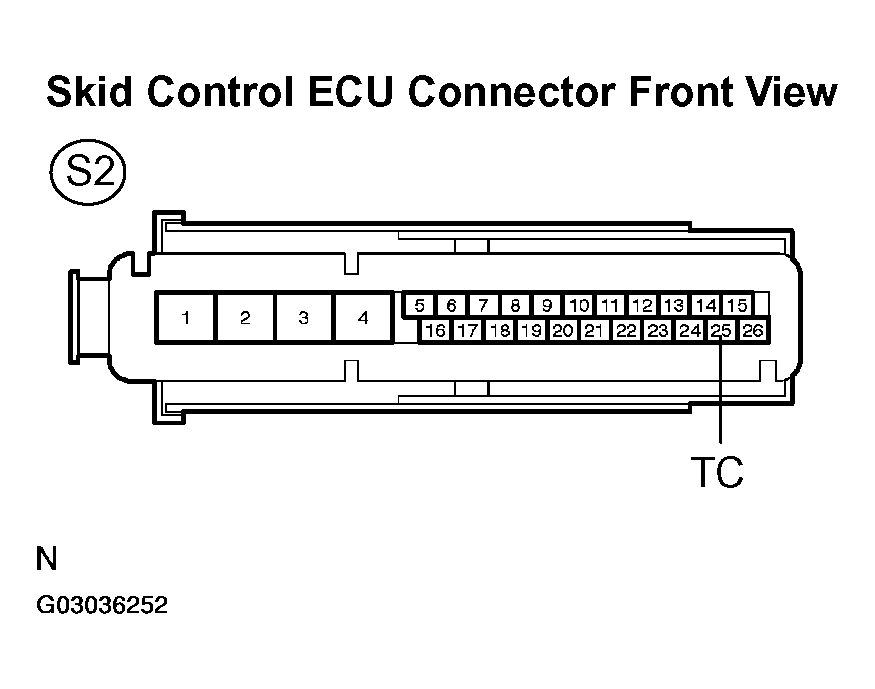

SPECIFIED CONDITIONTester Connection Condition Specified Condition S2-25 (TC) - Body ground Always 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR WIRE HARNESS AND EACH ECU
- OK: REPLACE BRAKE ACTUATOR ASSY (SEE REPLACEMENT )
- Measure the resistance according to the value(s) in SPECIFIED CONDITION
.
