Intake Air Control Valve ASSY No. 1 (1MZ-FE): Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT (See COOLANT (1MZ-FE/3MZ-FE) )
REMOVE FRONT SUSPENSION UPPER BRACE CENTER (W/ PERFORMANCE ROD)
REMOVE V-BANK COVER SUB-ASSY (See REPLACEMENT )
REMOVE AIR CLEANER CAP SUB-ASSY
REMOVE THROTTLE BODY ASSY (See THROTTLE BODY ASSEMBLY (1MZ-FE/3MZ-FE) )
REMOVE INTAKE AIR CONTROL VALVE ASSY
1. Disconnect the union to check valve hose.
2. Disconnect the fuel vapor feed hose No. 2.
3. Disconnect the vacuum hose.

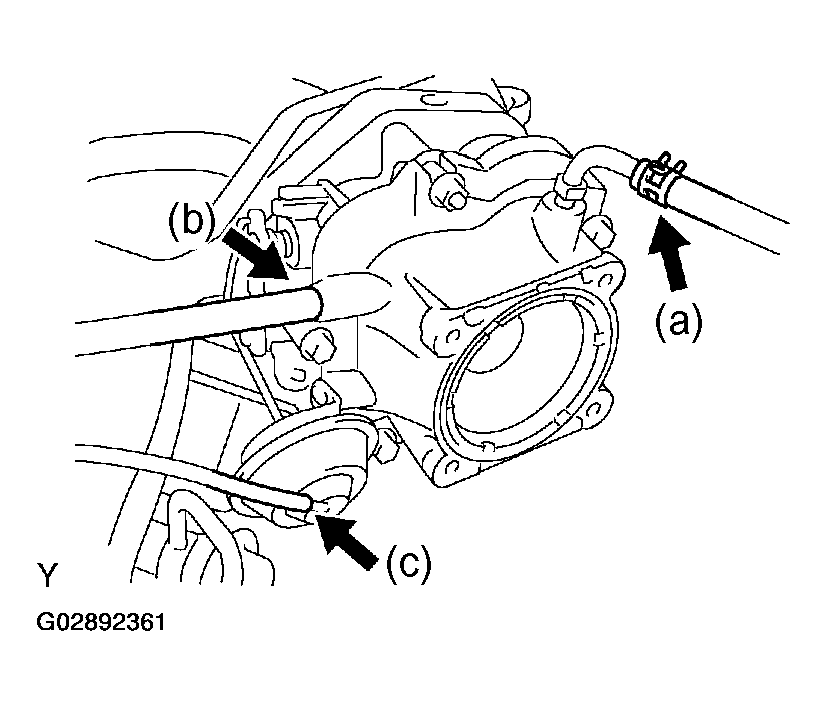

  Fig 1: Removing Intake Air Control Valve Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 5 bolts, nut and IAC valve.
5. Remove the gasket from the intake air surge tank.
INSTALL INTAKE AIR CONTROL VALVE ASSY
1. Install a new gasket to the intake air surge tank.
2. Install the IAC valve with the 5 bolts and nut.
  Torque:

  21 N.m (214 kgf.cm, 15 ft.lbf) for bolt A and nut A

  20 N.m (204 kgf.cm, 15 ft.lbf) for bolt B
3. Connect the vacuum hose.
4. Connect the fuel vapor hose.
5. Connect the union to check valve hose.

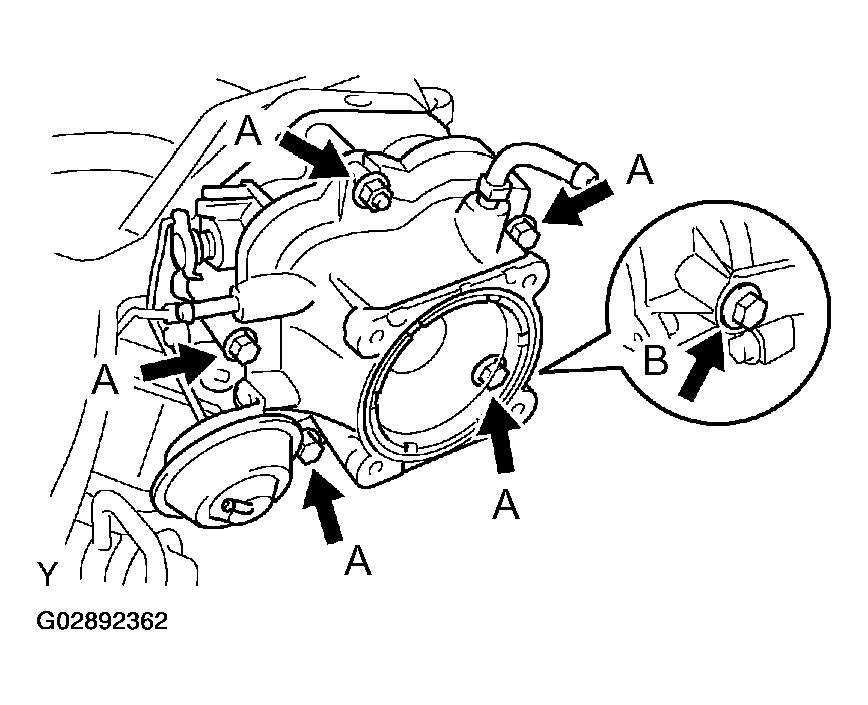

  Fig 2: Installing IAC Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THROTTLE BODY ASSY (See THROTTLE BODY ASSEMBLY (1MZ-FE/3MZ-FE) )
INSTALL AIR CLEANER CAP SUB-ASSY
ADD ENGINE COOLANT (See COOLANT (1MZ-FE/3MZ-FE) )
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
INSTALL V-BANK COVER SUB-ASSY (See REPLACEMENT )
INSTALL FRONT SUSPENSION UPPER BRACE CENTER (W/ PERFORMANCE ROD)
Torque: 80 N.m (815 kgf.cm, 59 ft.lbf)
