On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUEL PUMP OPERATION AND FUEL LEAKS
1. When using the hand-held tester:
  Check fuel pump operation.
  1. Connect the hand-held tester to the DLC3.
  2. Turn the ignition switch ON and push the hand-held tester main switch ON.
    NOTE: Do not start the engine.
  3. Select the ACTIVE TEST mode on the hand-held tester.
  4. If you need help to select active test on the hand-held tester, Refer to the hand-held tester is instruction manual.
  5. Turn the ignition switch OFF.
  6. Disconnect the hand-held tester from the DLC3.
2. When not using the hand-held tester:
  Check fuel pump operation.
  1. Remove the C/OPN relay from the engine room J/B.
  2. Using a service wire, connect terminals FP and +B of the engine room J/B.
    NOTE: Pay close attention to the terminal connecting position to avoid a malfunction.
  3. Turn the ignition switch ON, and check that the fuel pump operates.
    NOTE: Do not start the engine.
3. Check that there are no fuel leaks after doing maintenance anywhere on the fuel system.
4. Turn the ignition switch OFF.
5. Remove the service wire from the engine room J/B.
6. Install the C/OPN relay to the engine room J/B.

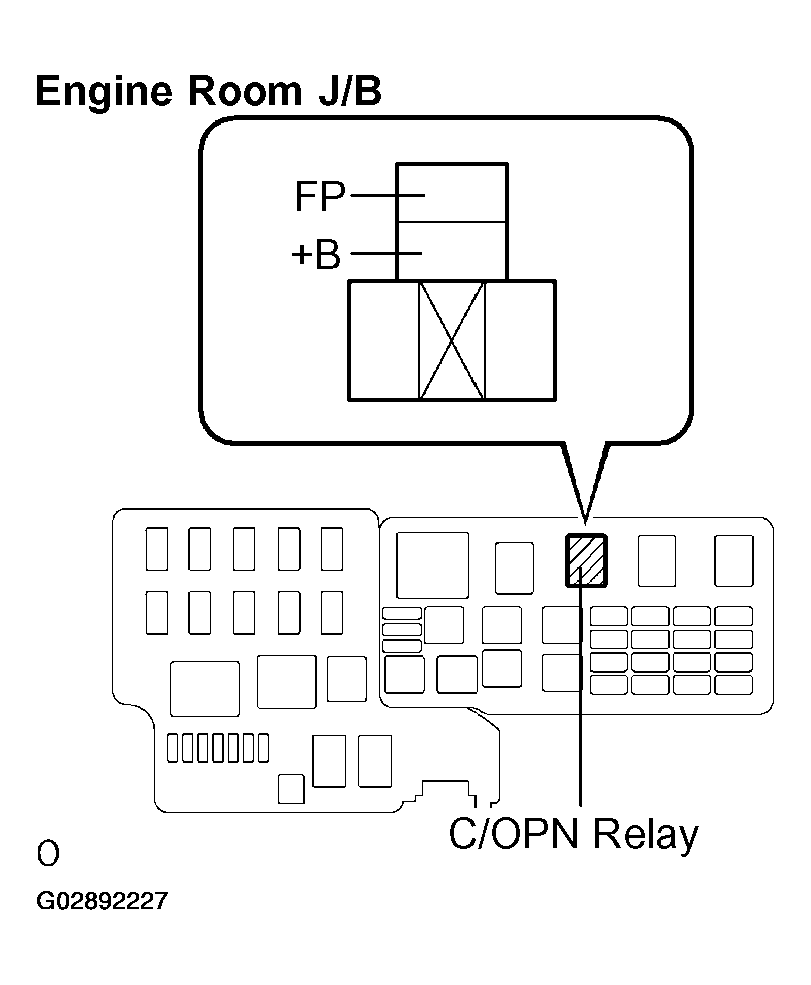

  Fig 1: Identifying C/OPN Relay In Engine Room J/B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK FUEL PRESSURE
1. Check that the battery positive voltage is above 12 V.
2. Disconnect the negative (-) terminal cable from the battery.
3. Purchase a new fuel tube and take out the fuel tube connector from its pipe.
  Fuel tube: Part No. 23801-20190

  Fig 2: Identifying Fuel Tube Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the fuel pipe clamp from the fuel tube connector.

  Fig 3: Removing Fuel Pipe Clamp From Fuel Tube Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the fuel tube connector from the fuel pipe by pinching part A with your fingers, as shown.
  CAUTION:
  - Always read the precautions (See PRECAUTION ) before disconnecting the fuel tube connector (quick type).
  - The fuel pipe line may spray fuel as a result of retained pressure that remains in it. Do not allow fuel to be sprayed in the engine compartment.
  Fig 4: Disconnecting Fuel Tube Connector From Fuel Pipe By Pinching Part A In Fingers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install SST (pressure gauge) and fuel tube connector using SST as shown.
  SST 09268-41047 (90467-13001, 95336-08070), 09268-45014 (09268-41200, 09268-41220, 09268-41250)
7. Wipe off any gasoline.
8. Reconnect the negative (-) battery cable.
9. When using hand-held tester:
  Operate the fuel pump (see step a).
10. When not using hand-held tester:
  Operate the fuel pump (see step b).
11. Measure the fuel pressure.
  Fuel pressure:

  304 to 343 kPa (3.1 to 3.5 kgf/cm ² , 44 to 50 psi)

  If the pressure is high, replace the fuel pressure regulator. If the pressure is low, check the fuel hoses and connections, fuel pump, fuel filter and fuel pressure regulator.
12. Start the engine.
13. Measure the fuel pressure at idle.
  Fuel pressure:

  304 to 343 kPa (3.1 to 3.5 kgf/cm ² , 44 to 50 psi)
14. Stop the engine.

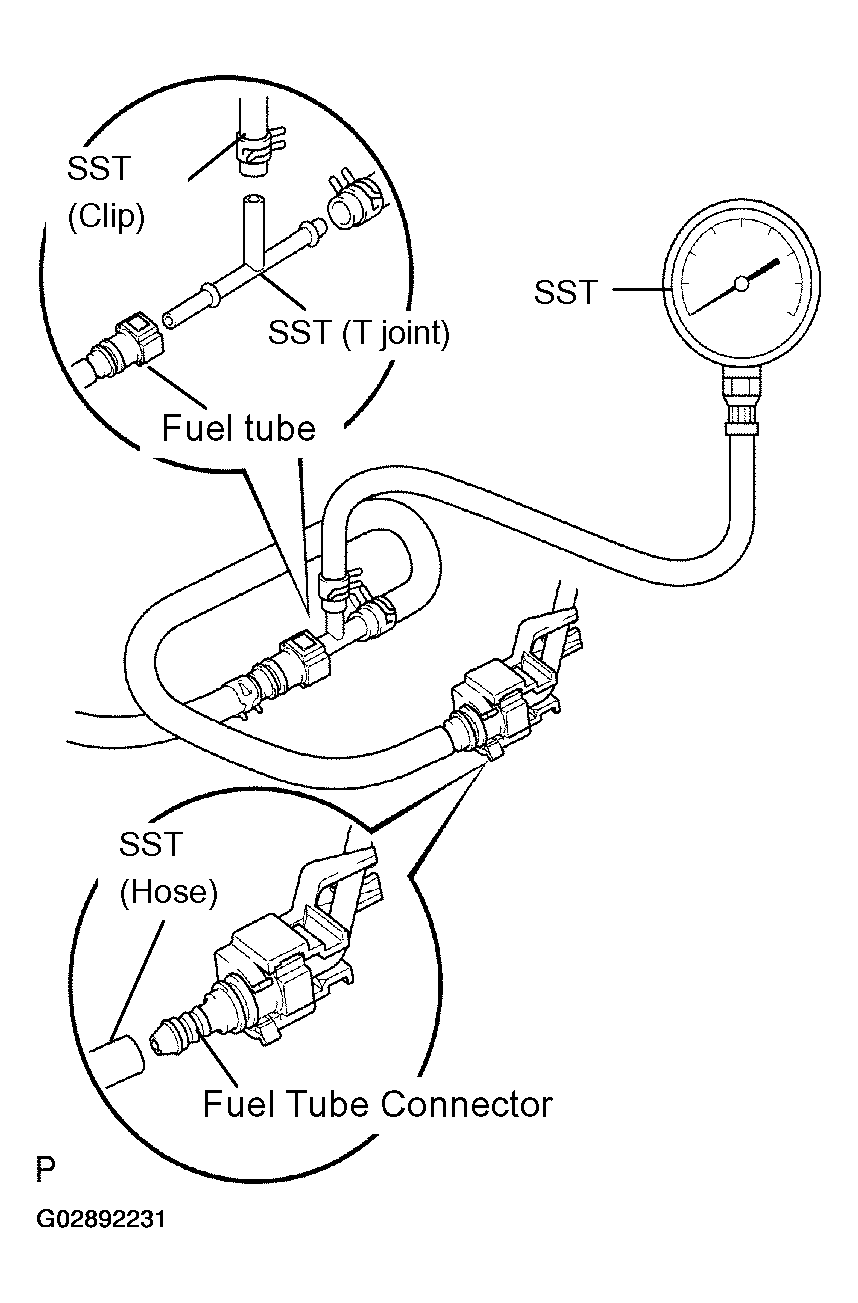

  Fig 5: Installing SST (Pressure Gauge) And Fuel Tube Connector Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. Check that the fuel pressure remains as specified for 5 minutes after the engine has stopped.
  Fuel pressure: 147 kPa (1.5 kgf/cm ² , 21 psi)

  If the pressure is not as specified, check the fuel pump, pressure regulator and/or injectors.
16. After checking the fuel pressure, disconnect the negative (-) battery cable and carefully remove SST and fuel tube connector to prevent gasoline from spraying.
17. Reconnect the fuel inlet tube (fuel tube connector).
  CAUTION: Always read the precautions (See PRECAUTION ) before connecting the fuel tube connector (quick type).
