Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the temperature outside the cabin and sends the appropriate signals to the A/C amplifier.

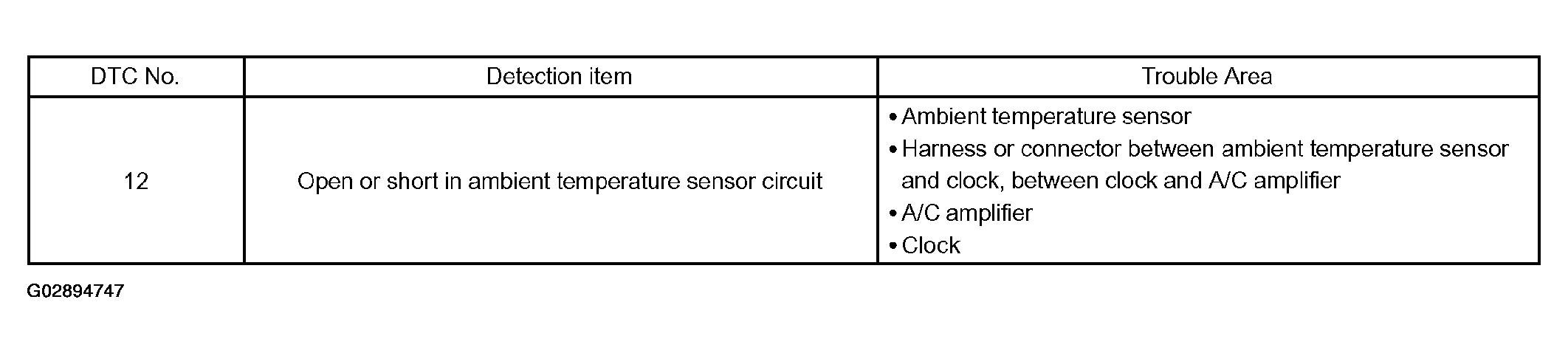

Fig 1: Identifying Ambient Temperature Sensor Circuit Description Table
G02894747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
