Code 12: is not output: Wiring Diagram

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

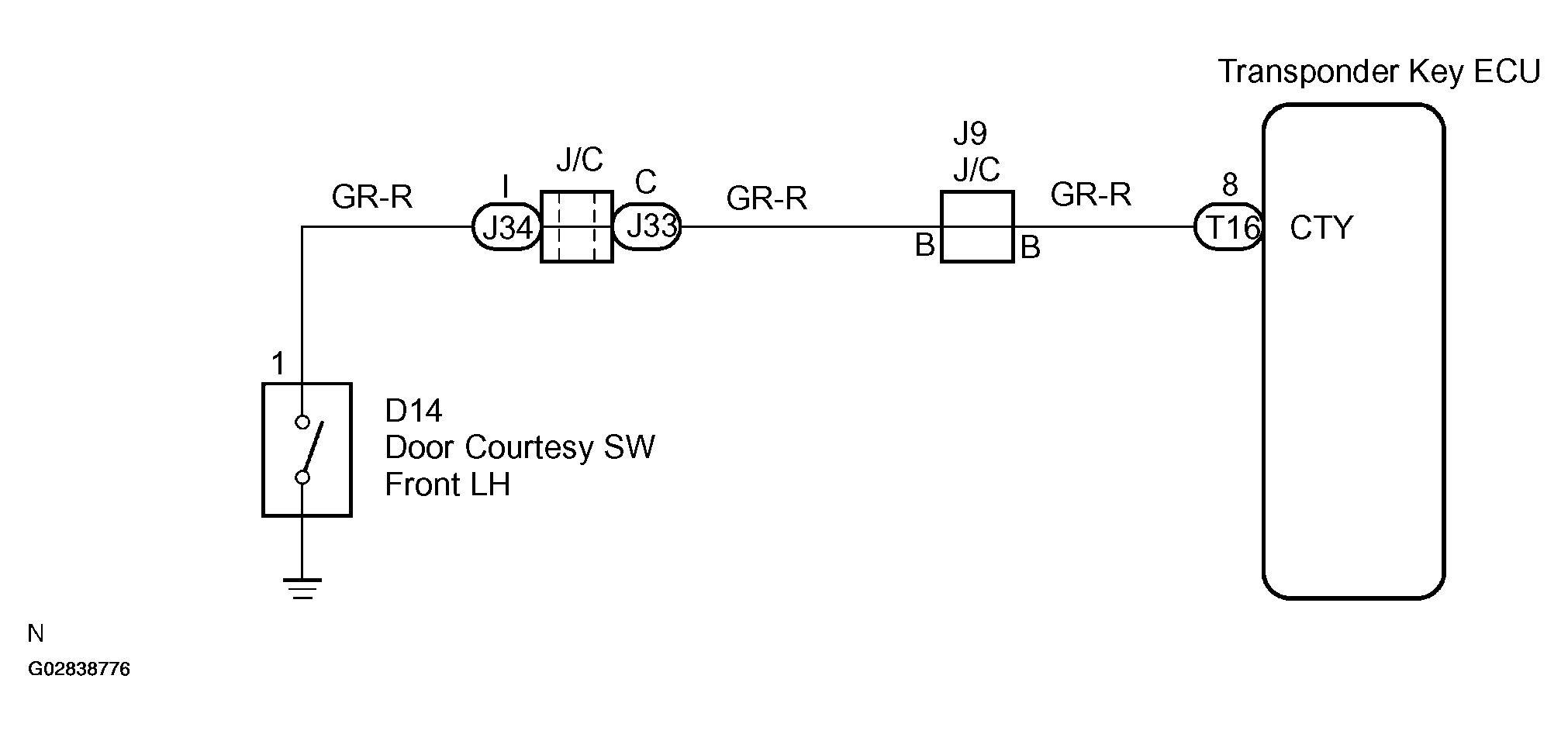

Fig 1: Code 12 Is Not Output - Wiring Diagram
G02838776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
