Air Conditioning Control Assembly (Center Cluster Integration): Reassembly

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install lens.
    1. Install the lens.

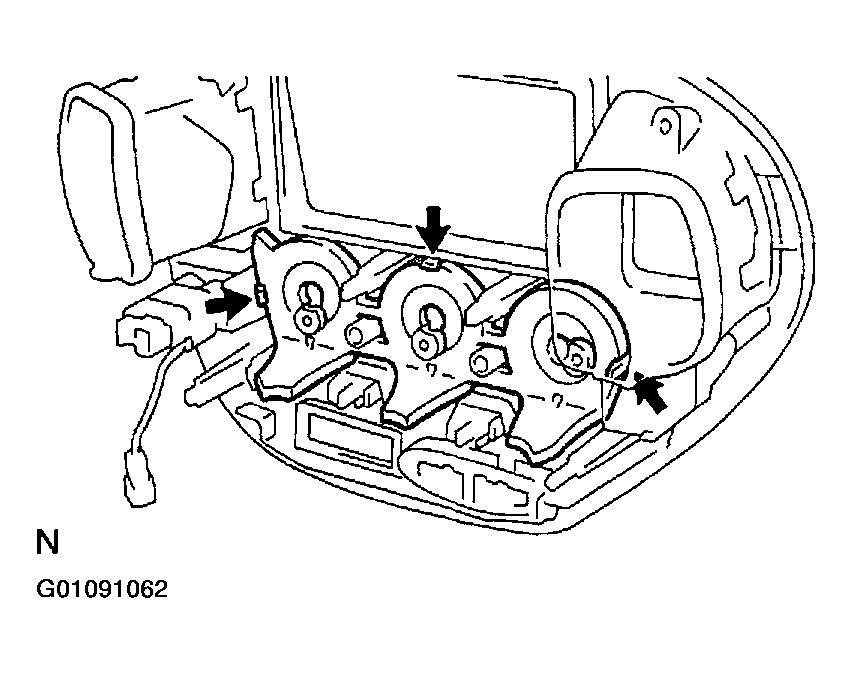

      Fig 1: Installing Lens
      G01091062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install integration circuit.
    1. Connect the 2 connectors.
    2. Install the circuit.

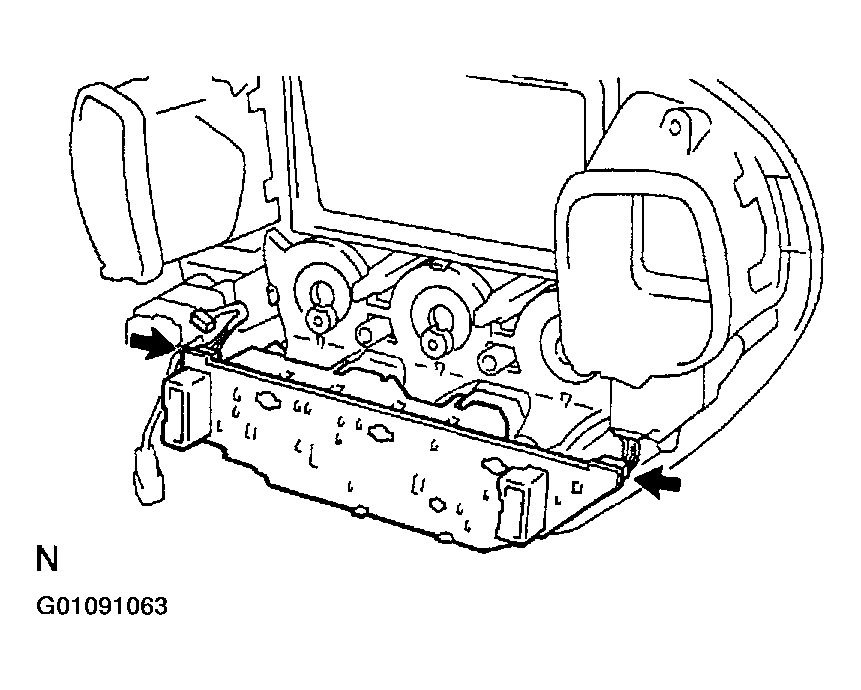

      Fig 2: Locating Connectors For Installation Of Circuit
      G01091063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Install heater control housing.
    1. Connect the connector.
    2. Install the heater control housing.
    3. Install the 5 screws.

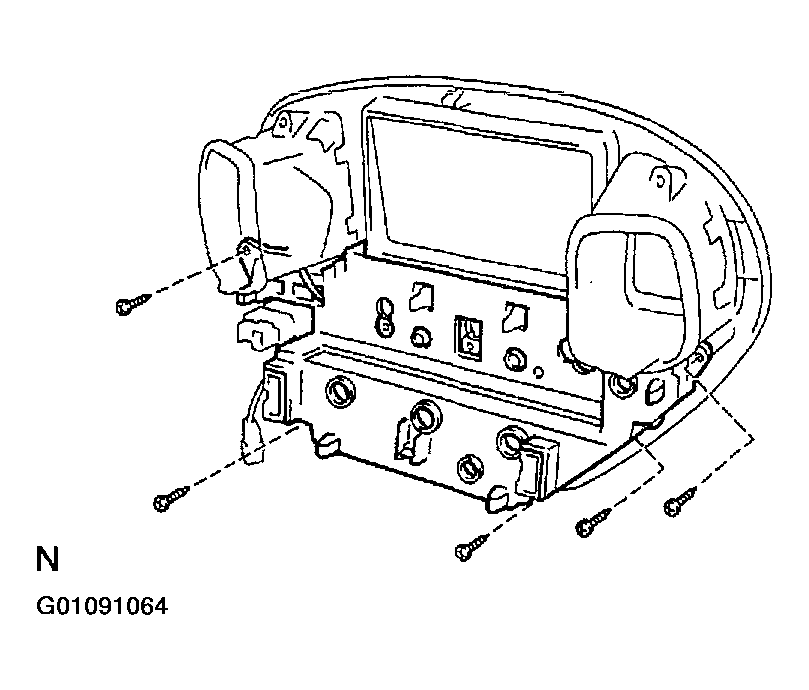

      Fig 3: Locating Screws For Installation Of Heater Control Housing
      G01091064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Install bulbs.
    1. Install the 5 bulbs.

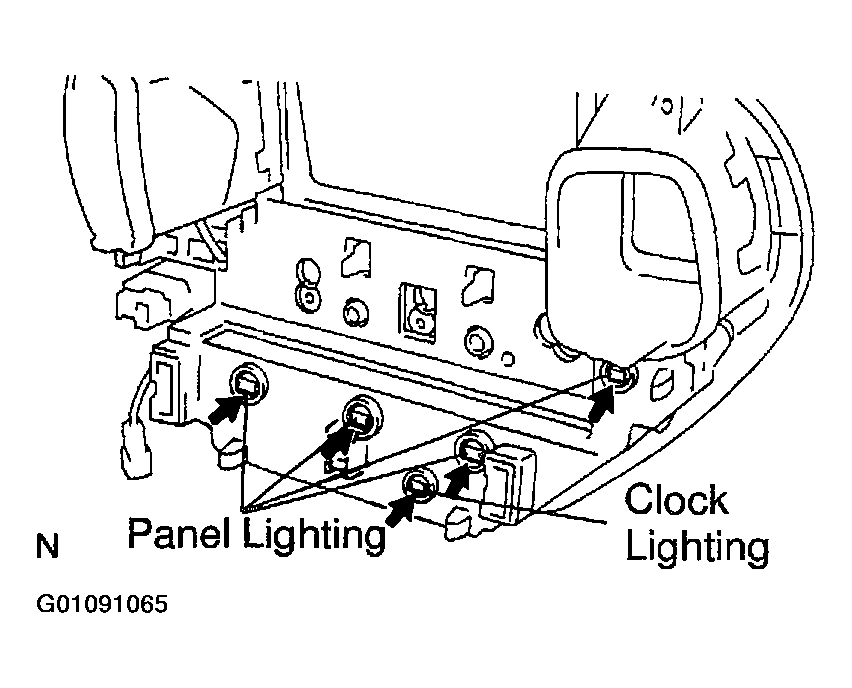

      Fig 4: Installing Bulbs
      G01091065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Install airbag indicator circuit.
    1. Connect the connector.
    2. Install the circuit.
    Fig 5: Installing Circuit
    G01091066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
