Section 486 (Turn Signal & Hazard Warning System): Inspection

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TURN SIGNAL SWITCH CONTINUITY

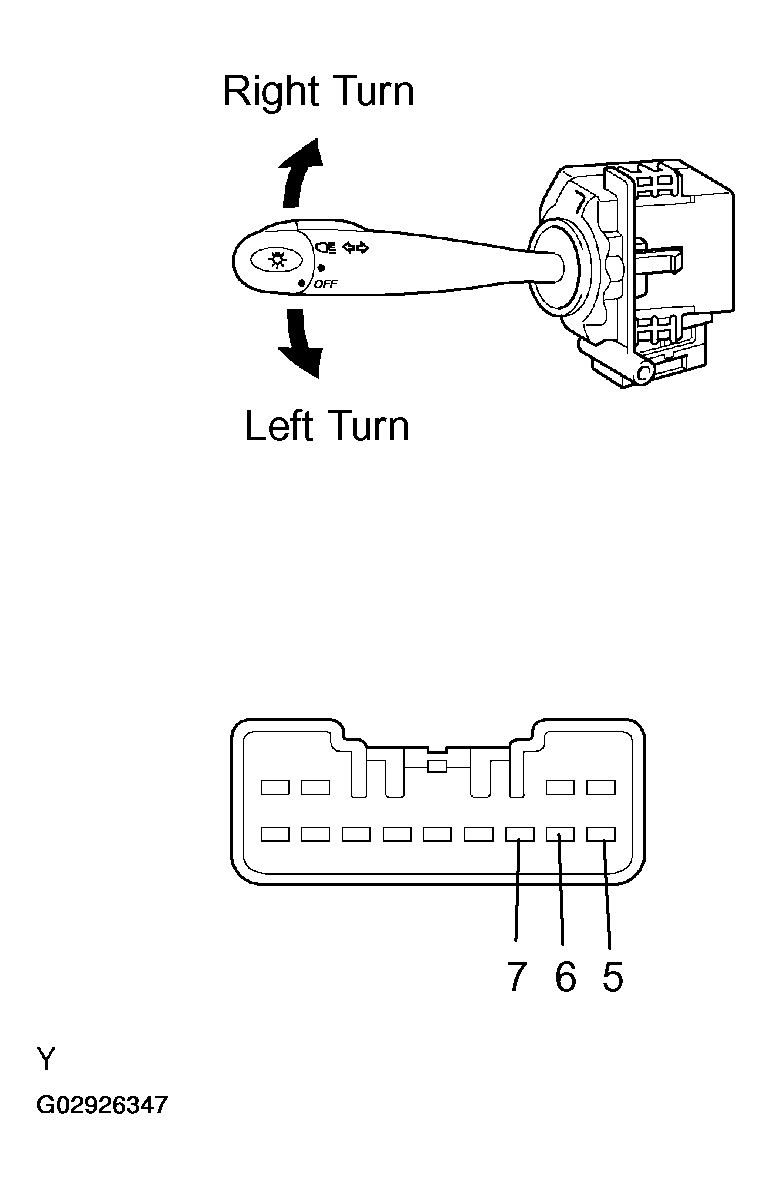

Fig 1: Identifying Turn Signal Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.

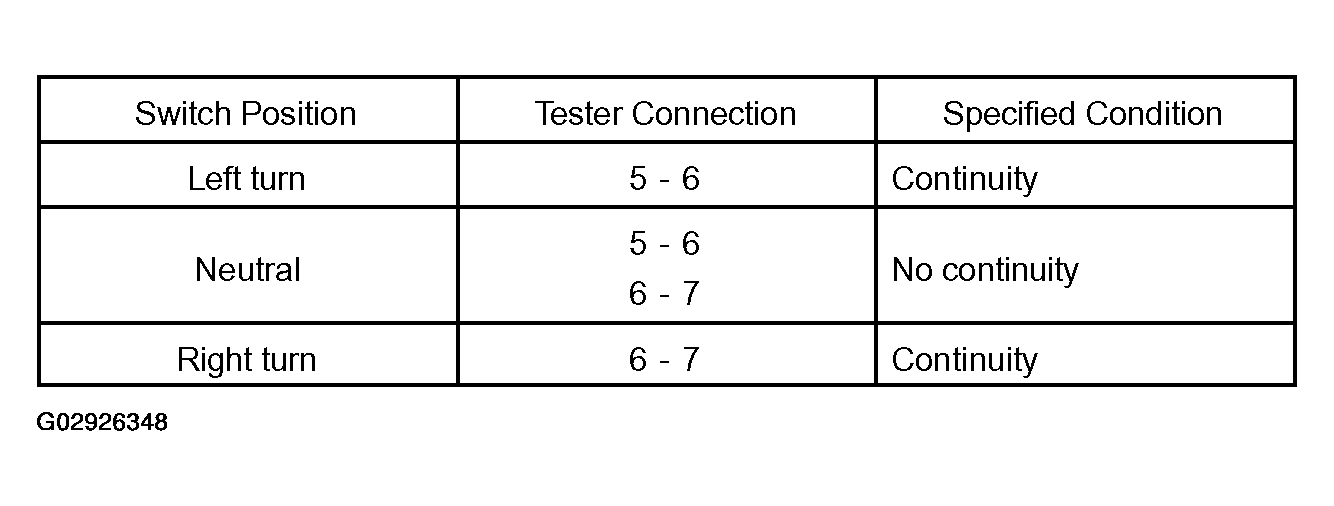

Fig 2: Twin Signal Switch Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT HAZARD WARNING SWITCH CONTINUITY

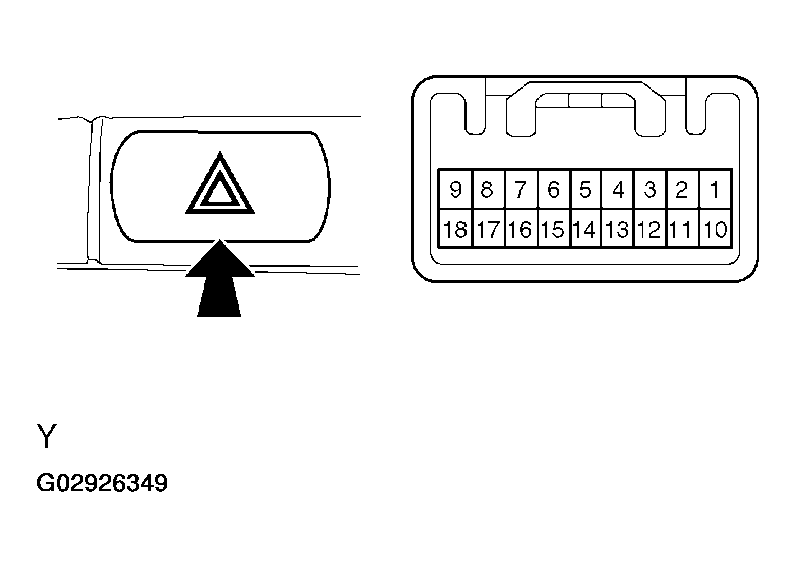

Fig 3: Identifying Hazard Warning Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

IDENTIFYING HAZARD WARNING SWITCH CONTINUITY

Condition	Tester Connection	Specified Condition
OFF	5 - 9	No continuity
ON	5 - 9	Continuity
Illumination circuit	4 - 6	Continuity

If the continuity is not as specified, replace the A/C control switch.

INSPECT TURN SIGNAL FLASHER CIRCUIT

Disconnect the connector from the combination switch and inspect the connector on the wire harness side, as shown in IDENTIFYING TURN SIGNAL FLASHER CIRCUIT CONTINUITY .

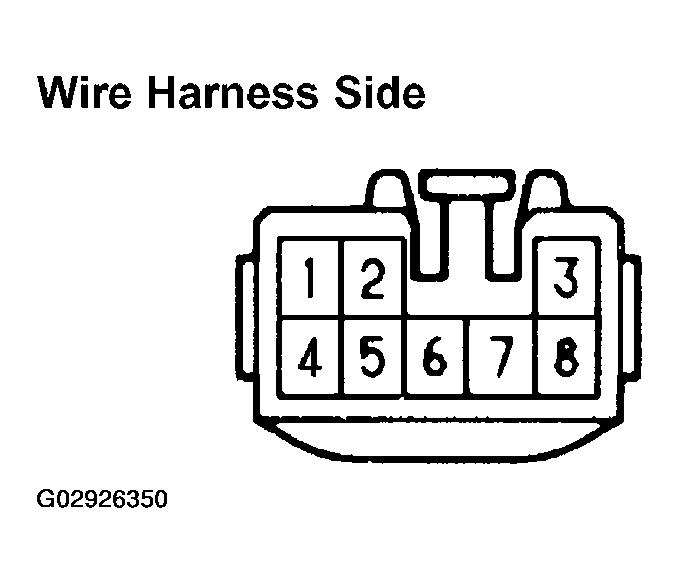

Fig 4: Identifying Turn Signal Flasher Wire Harness Side

TURN SIGNAL FLASHER CIRCUIT CONTINUITY

Tester Connection	Condition	Specified Condition
2 - Body ground	Constant	Continuity
3 - Body ground	Constant	Continuity
5 - Body ground	Turn signal switch RIGHT or OFF	No continuity
5 - Body ground	Turn signal switch LEFT	Continuity
6 - Body ground	Turn signal switch LEFT or OFF	No continuity
6 - Body ground	Turn signal switch RIGHT	Continuity
7 - Body ground	Constant	Continuity
8 - Body ground	Hazard warning switch OFF	No continuity
8 - Body ground	Hazard warning switch ON	Continuity
1 - Body ground	Ignition switch LOCK or ACC	No voltage
1 - Body ground	Ignition switch ON	Battery voltage
4 - Body ground	Constant	Battery voltage

If the circuit is as specified, replace the flasher.

If the circuit is not as specified, inspect the circuits connected to other parts.
