Component Locations

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

Refer to illustration for component locations. See Fig 1.

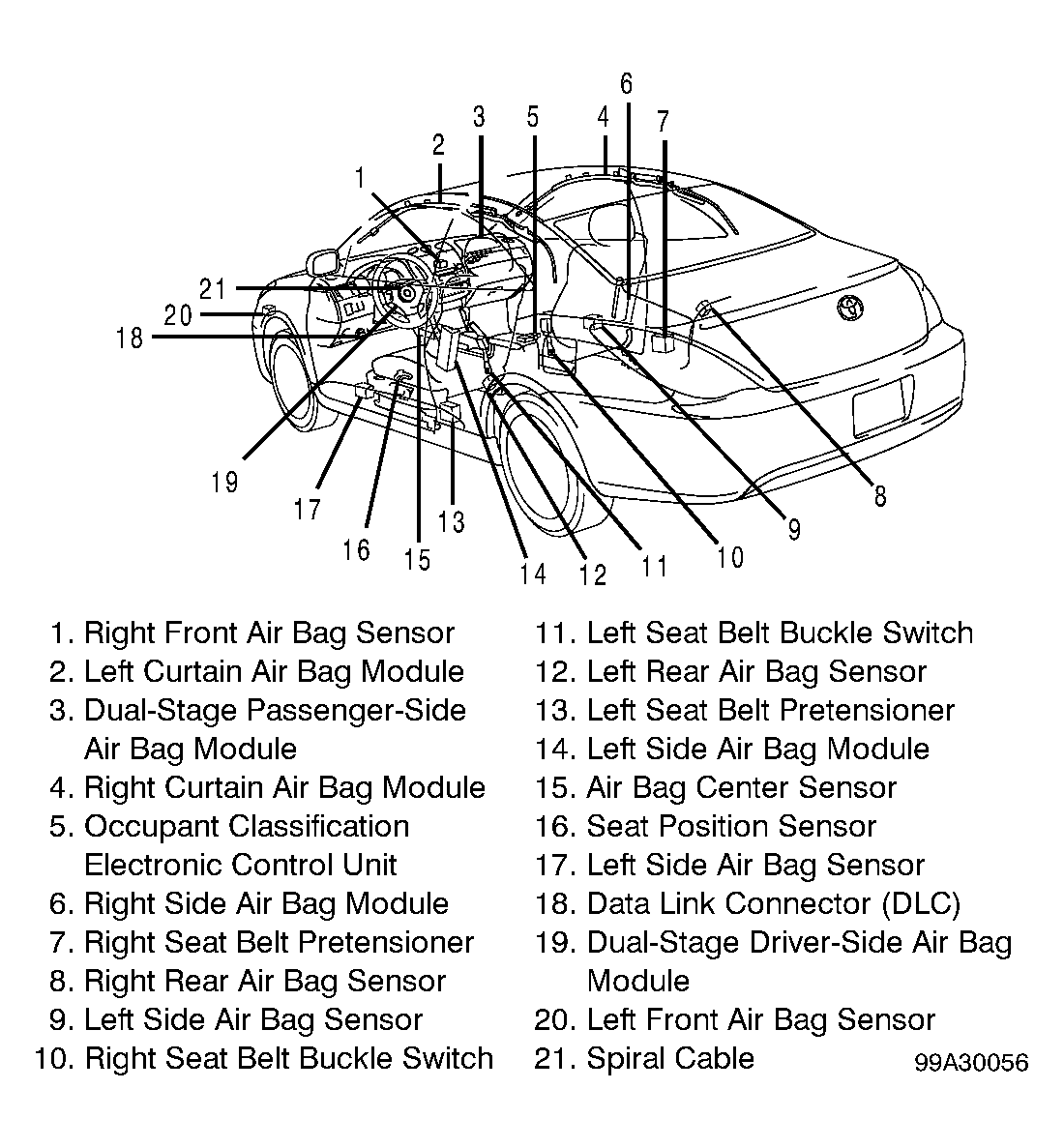

Fig 1: Locating Restraint System Components
G99A30056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
