DTC 23: Vehicle Speed Sensor Abnormal

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

For DTC 23 diagnosis, see Fig 1 and Fig 2 .

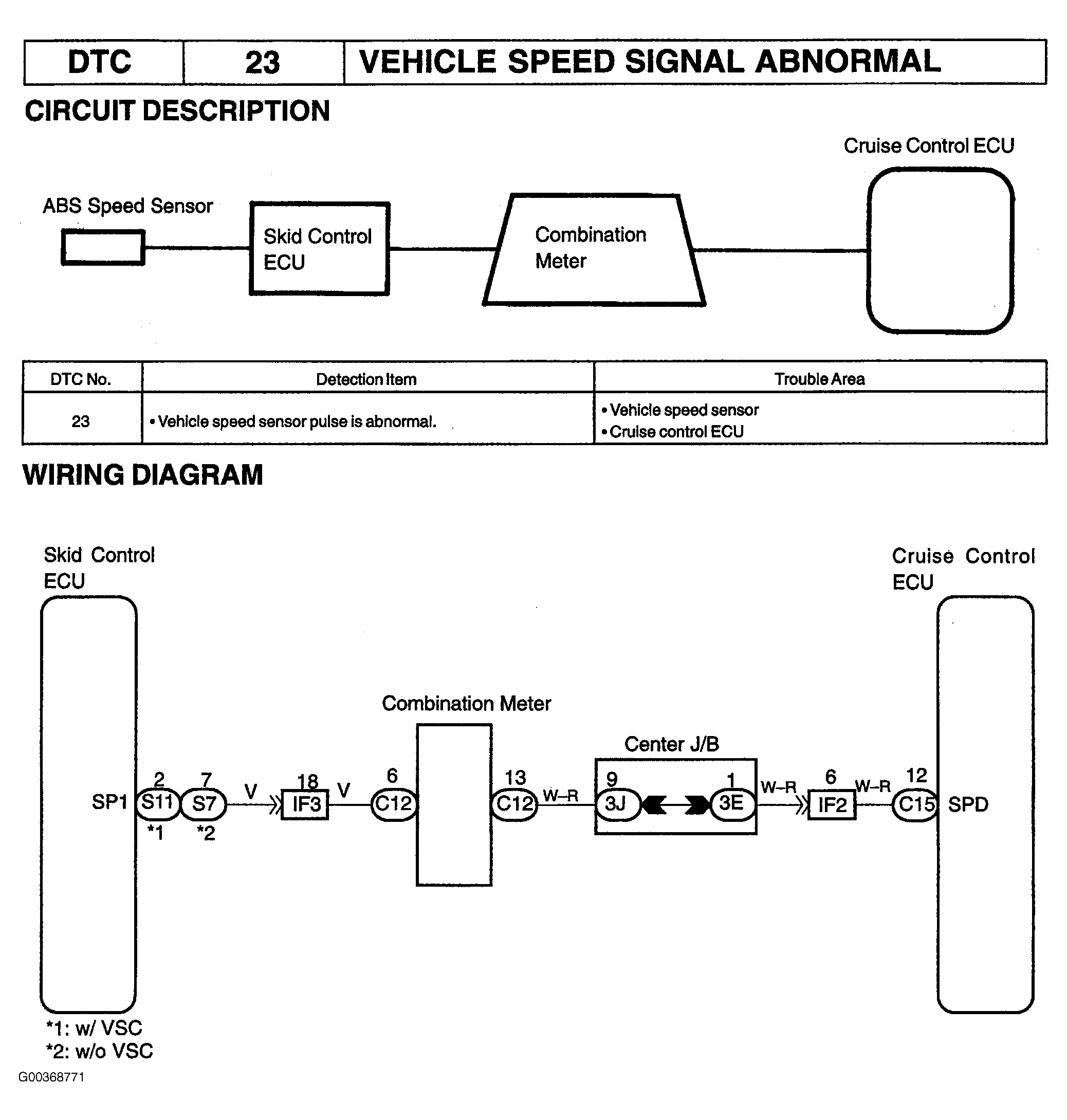

Fig 1: Diagnosing DTC 23 (1 Of 2)
G00368771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

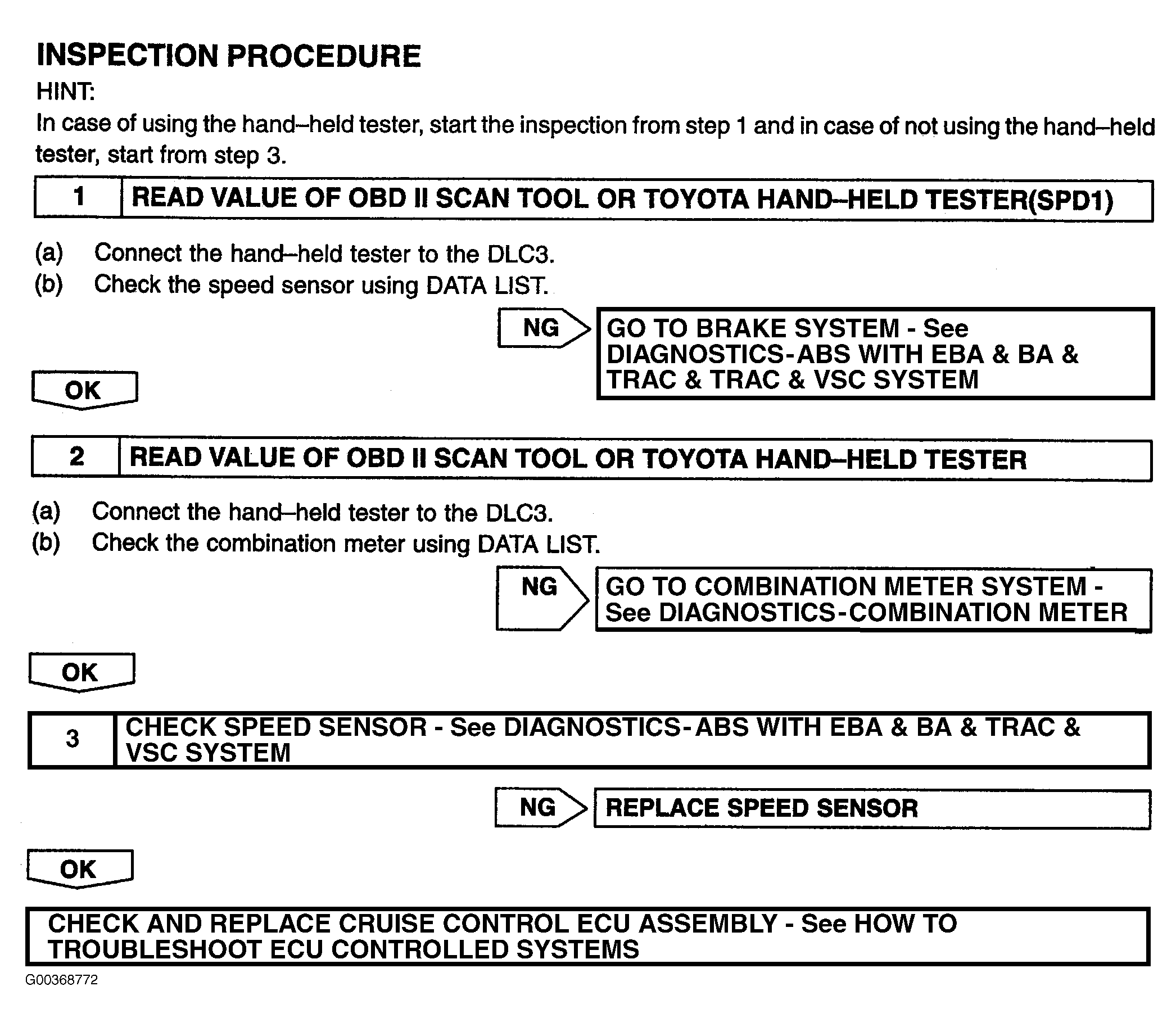

Fig 2: Diagnosing DTC 23 (2 Of 2)
G00368772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
