Circuit Description

WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

The engine hood courtesy switch is built into the engine hood lock assembly and goes ON when the engine hood is opened and goes OFF when the engine hood is closed. See Fig 1.

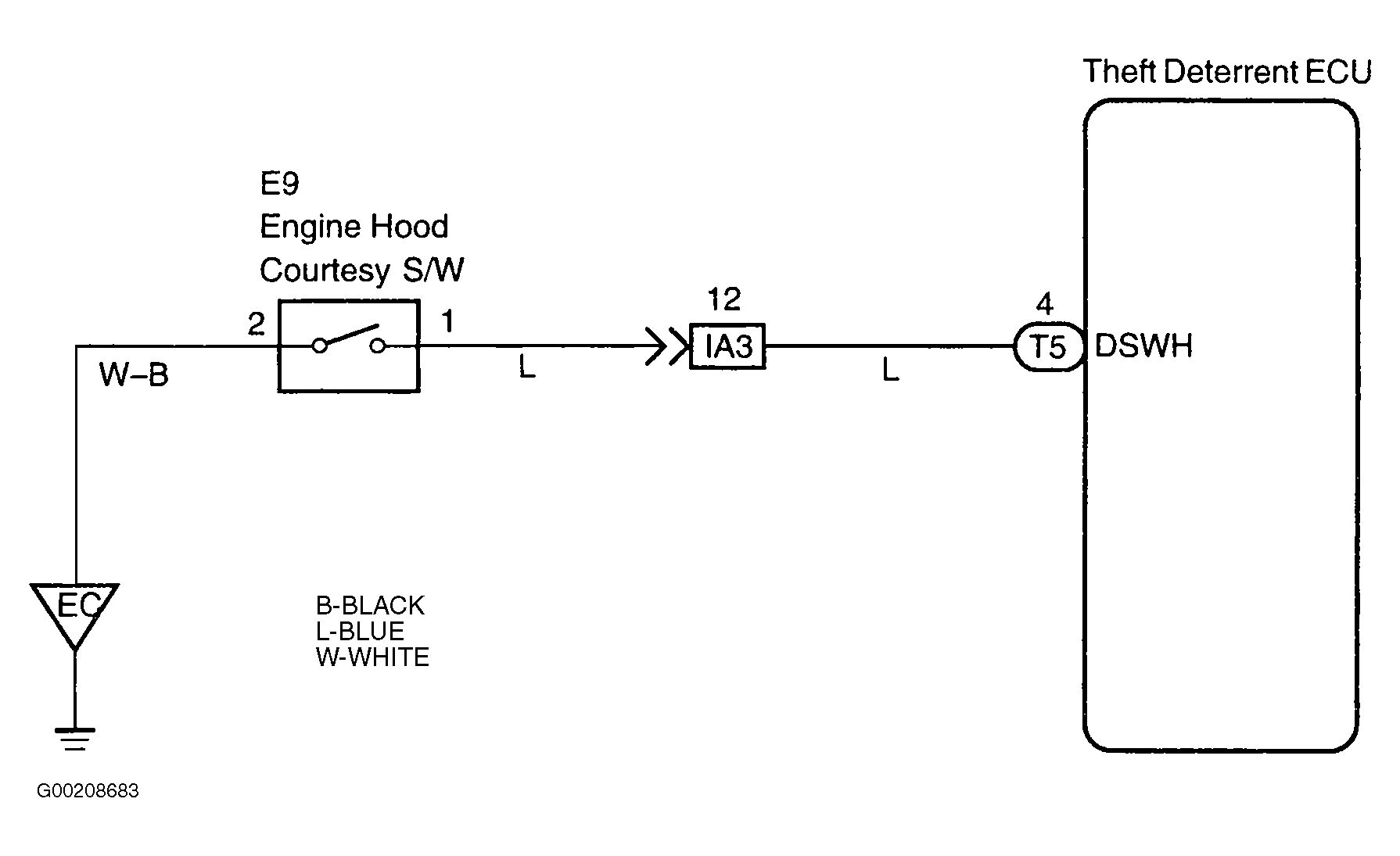

Fig 1: Identifying Engine Hood Courtesy Switch Circuit
G00208683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
