Installation - Liftgate Side

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place liftgate stop bumper into position.

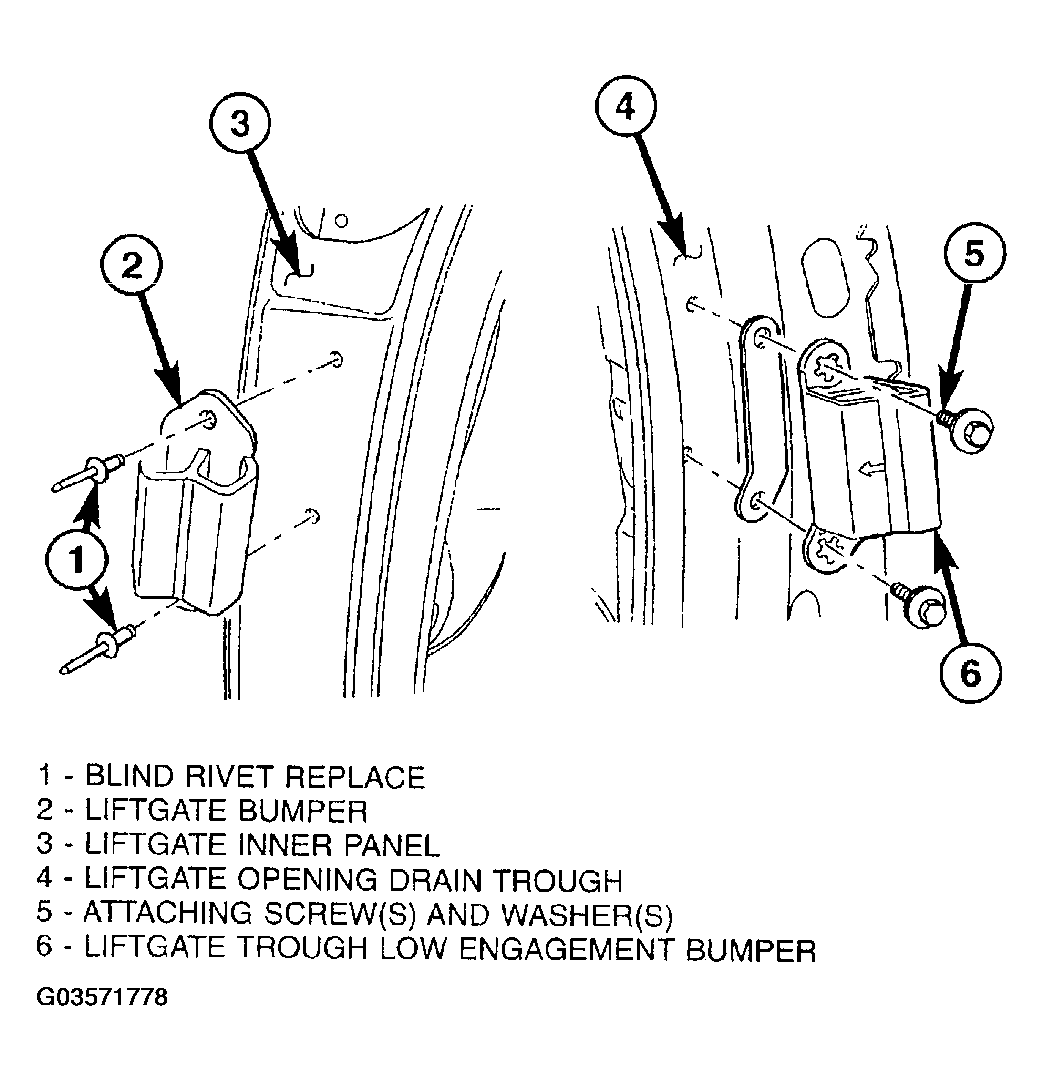

  2. Install rivets attaching liftgate stop bumper to liftgate (Figure ).
  3. Close liftgate.
