Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT COMBINATION METER ASSY

Disconnect the combination meter connectors.
Measure the voltage according to the value(s) in Fig 1 .
Standard:

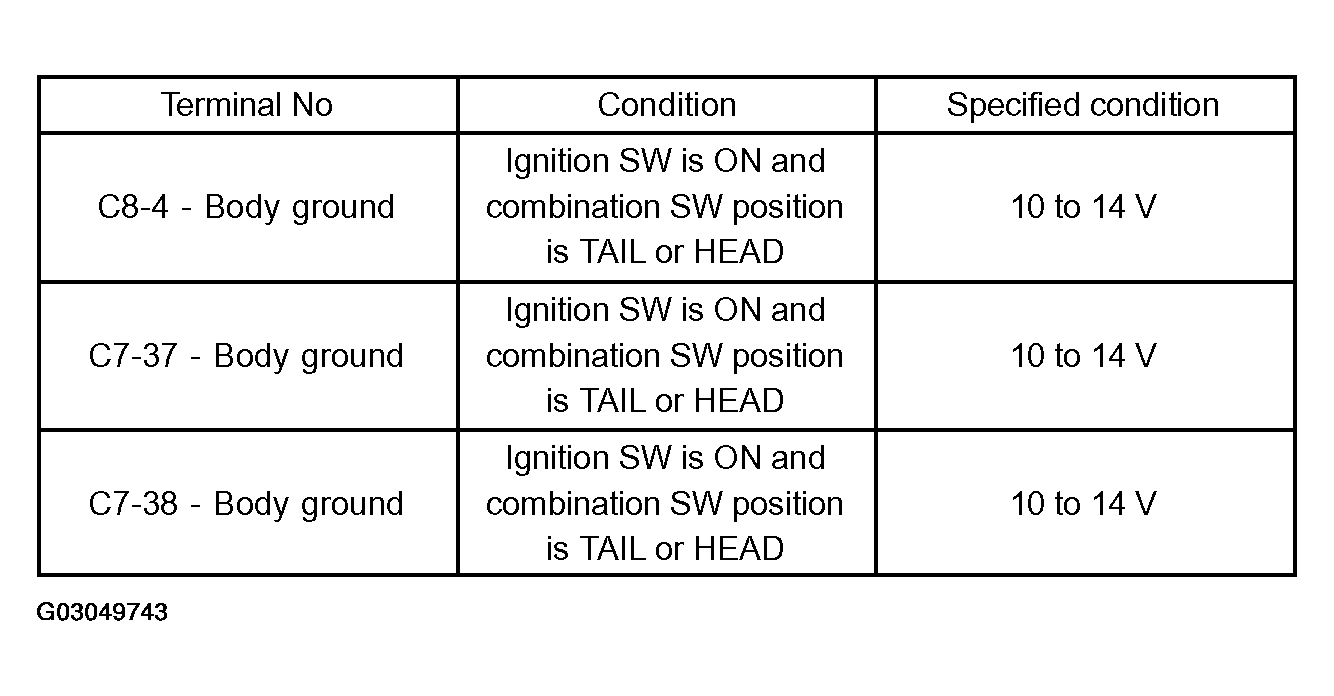

Fig 1: Measuring Voltage Between Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

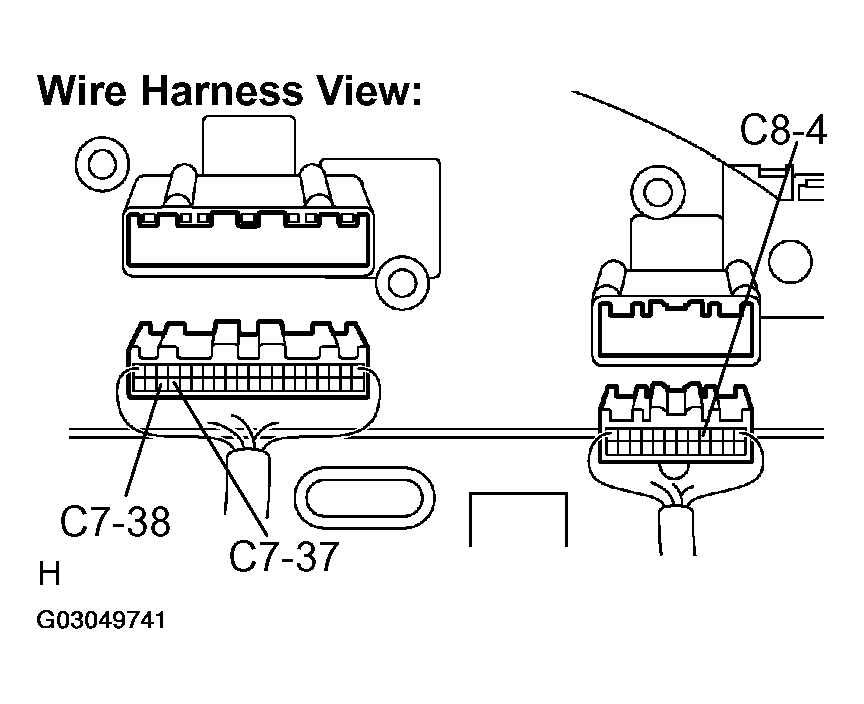

Fig 2: Inspecting Combination Meter Assy (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in STANDARD REFERENCE .

Standard:

STANDARD REFERENCE

Tester Connection	Specified Condition
C8-7 - Body ground	Below 1 Ω
C8-8 - Body ground	Below 1 Ω

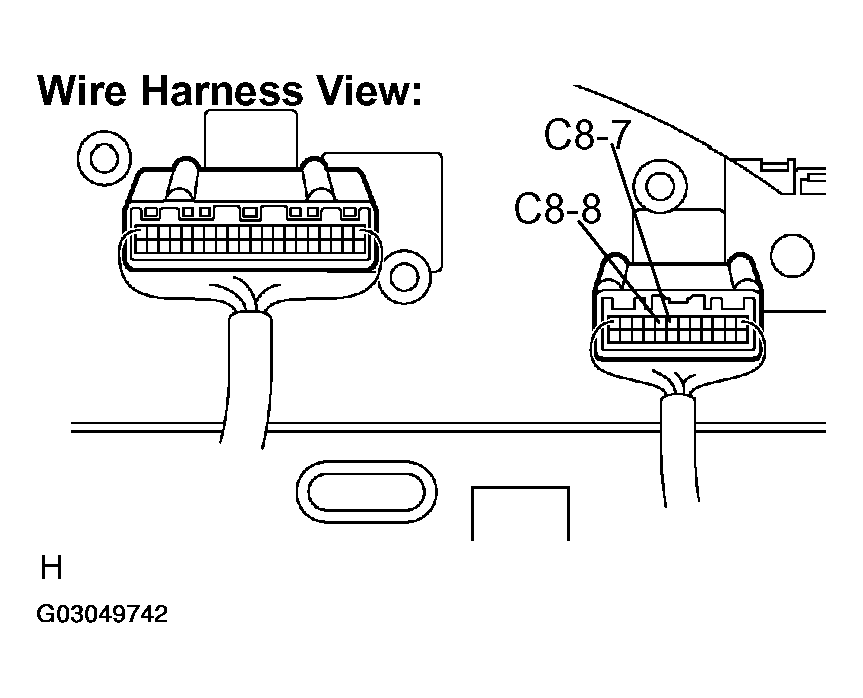

Fig 3: Inspecting Combination Meter Assy (2 Of 2)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION METER ASSY-ENGINE ROOM R/B)
OK: REPLACE COMBINATION METER ASSY (SEE OVERHAUL )
