Floor Console Base Assembly: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front and rear floor consoles. (Refer to REMOVAL ) and (Refer to REMOVAL ).
  2. Remove shift mechanism. (Refer to SHIFT MECHANISM ).
  3. Remove nine attaching nuts and washers to weld studs (Fig 1).

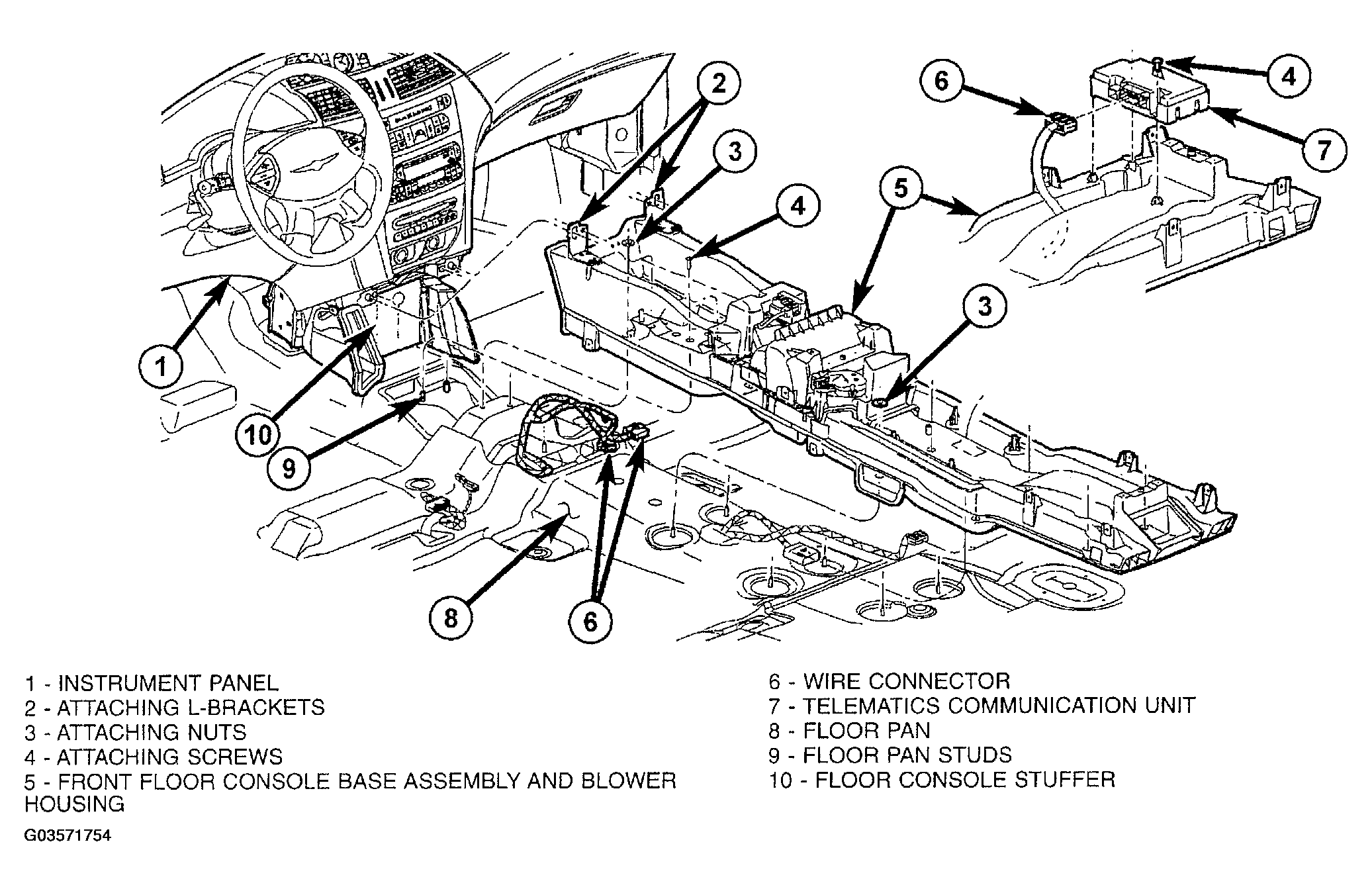

    Fig 1: Removing Front Floor Console Base Assembly
    G03571754Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove two screws attaching L-brackets to instrument panel.
  5. Disconnect wire connectors that are still connected.
  6. Raise floor console base assembly to allow wire harness exit through console base.
  7. Remove floor console base assembly from vehicle.
