Auto Temp Control C2 - Natural 13 Way Connector End View

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

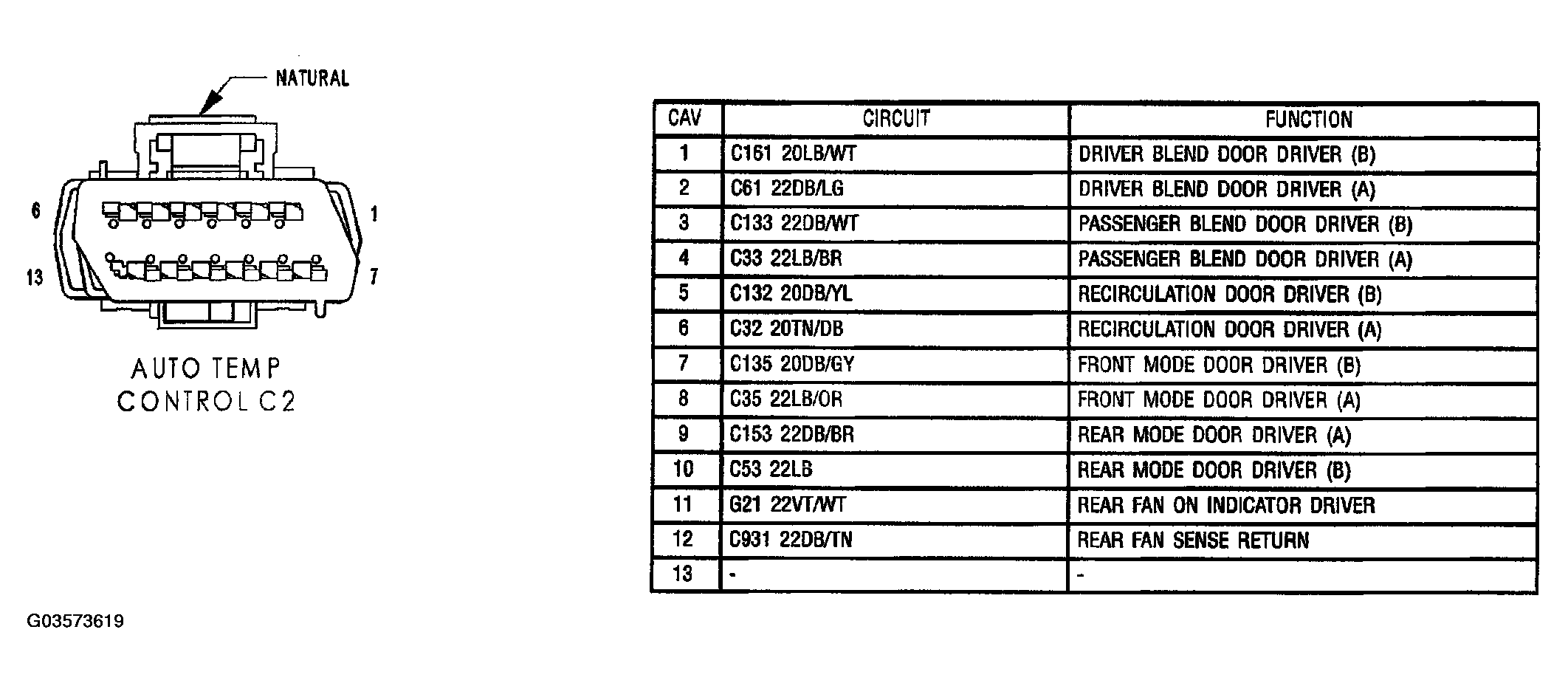

Fig 1: Auto Temp Control Connector End View (C2)
G03573619Courtesy of DAIMLERCHRYSLER CORP.
