Height Control Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

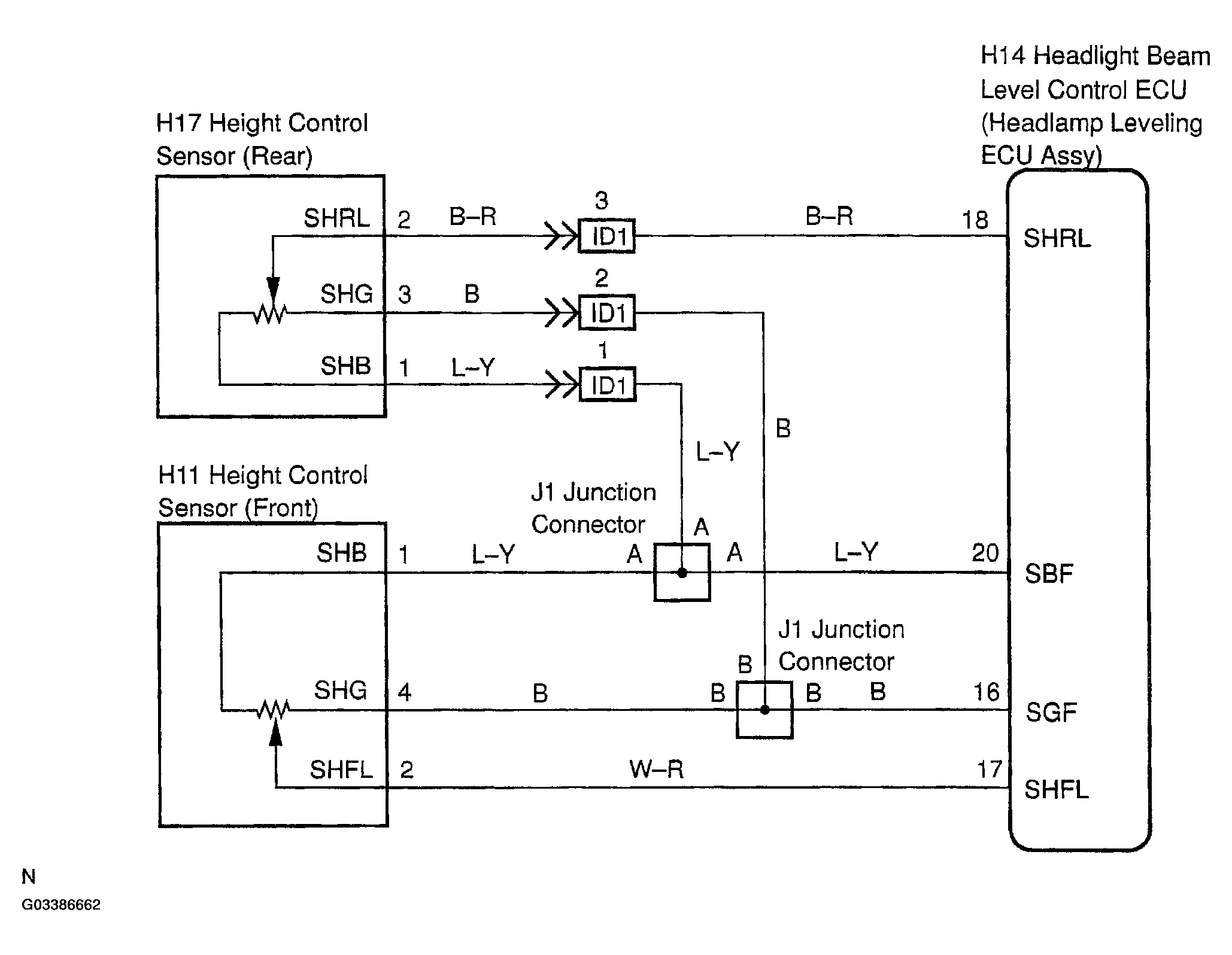

Fig 1: Identifying Height Control Sensor Circuit Wiring Diagram
G03386662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
